Construction Man Rider Winch Remote Controlled With Hand Brake

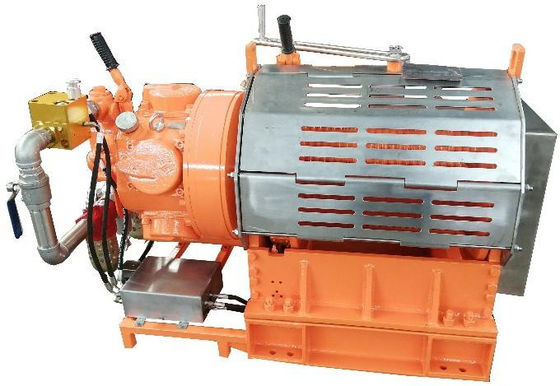

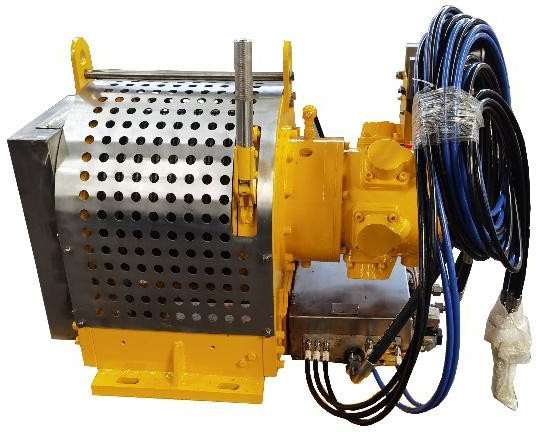

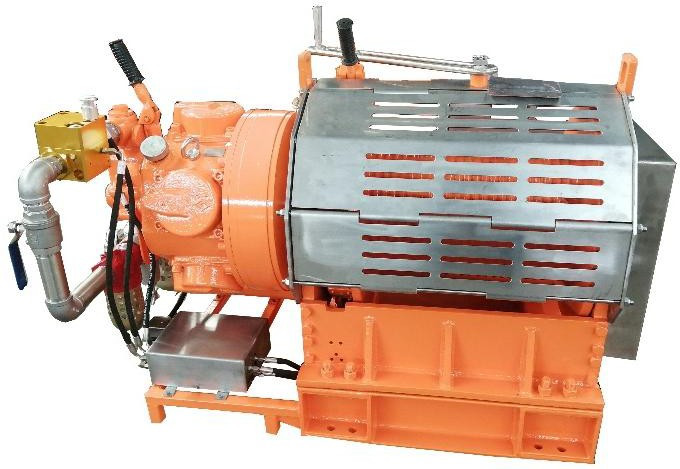

MAN RIDER WINCH-MODELZJQH-5×24B With Hand Brake

INTRODUCTION

Juling Manrider air winch is a kind of pneumatic motor as the power, through the built-in planetary deceleration mechanism to drive the drum, to achieve lifting or traction device. It is mainly used for land or offshore oil operations and can be used for both manned and payload lifting purposes.

8:1 design factor for manned; 5:1 design factor for load. The minimum ratio of drum diameter to cable diameter is 18:1, which prevents cable wear.

MAIN PARAMETERS

Manrider winch

Model:ZJQH-5*24B

Rated lifting force:5 kn

Lifting speed:0~24m/min

Steel rope diameter(mm):Φ10mm

Wire capacity (d=10mm):150m

Overall dimensions(length *width *height) mm:930*810*910

Pneumatic motor

Rated power(kw):2.6kw

Pressure of compress air(mpa):0.25-0.8mpa

Max. Air consumption:≤5m³/min

Break type:Built-in entire disc caab + band hand break

Weight(kg):350

FUNCTIONS

The winch features a drum double-support structure with a secure rope-end fixation design, ensuring operational stability. Its built-in planetary gear reduction system (roller-type) optimizes torque transmission efficiency. The braking system integrates dual mechanisms: a sealed automatic full-disc brake resistant to salt spray, dust, and moisture, and an external manual belt brake for operator-controlled emergency stops. Control flexibility is achieved through dual modes—local operation and remote control—both equipped with comprehensive safeguards including slack-rope detection, overload protection, travel limit switches, emergency stop functions, air-actuated braking, and safe load release mechanisms. This multi-layered safety architecture ensures reliable performance in harsh environments while maintaining precise load management.
