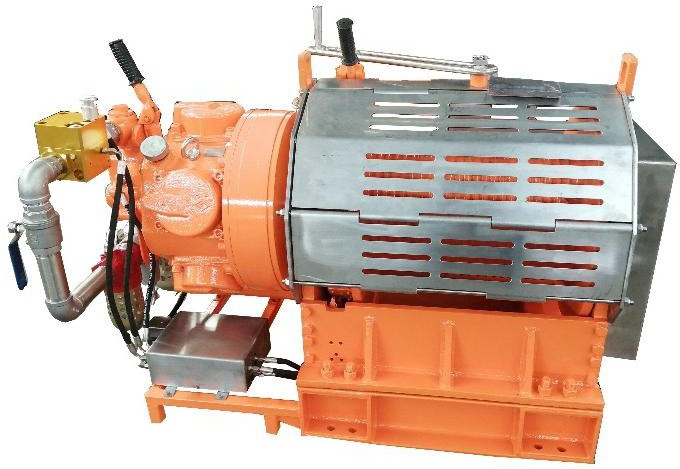

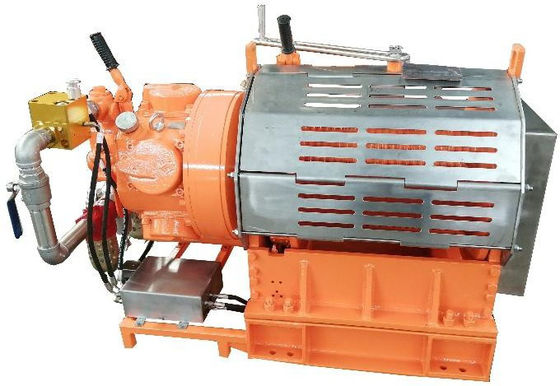

Remote Control Manriding Winch 15kn With Emergency Stop Protection
| Place of Origin | China |
|---|---|
| Brand Name | Juling |
| Certification | API,ISO |
| Model Number | As Specified in the data |
| Minimum Order Quantity | 1 |
| Price | negotiable |
| Packaging Details | Wooden Box |
| Delivery Time | Stock |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Weight | 350 Kg | Control Method | Remote Control |
|---|---|---|---|
| Usage | Manriding And Material Handling | Safety Features | Emergency Stop Button, Overload Protection, Brake System |
| Certifications | CE, ISO | Material | Steel |
| Voltage | 220V | Application | Construction, Maintenance, Rescue Operations |
| Frequency | 50 Hz | Maximum Lifting Height | 100 M |
| Power Source | Electric | Usage | Lifting In Oilfield |
| Safety Features | Emergency Stop Button, Overload Protection | Color | Yellow Orange Or Other Colors |
| Warranty | 12 Months | ||
| Highlight | Remote Control Manriding Winch,15kn Manriding Winch,Emergency Stop Protection Manriding Winch |
||
Product Description
MAN RIDER WINCH-MODEL:ZJQH-15×20B
INTRODUCTION
Juling Manrider air winch is a kind of pneumatic motor as the power, through the built-in planetary deceleration mechanism to drive the drum, to achieve lifting or traction device. It is mainly used for land or offshore oil operations and can be used for both manned and payload lifting purposes.
8:1 design factor for manned; 5:1 design factor for load. The minimum ratio of drum diameter to cable diameter is 18:1, which prevents cable wear.
MAIN PARAMETERS
Manrider winch
Model:ZJQH-15*20B
Rated lifting force:15 kn
Lifting speed:0~20m/min
Steel rope diameter(mm):Φ10mm
Wire capacity (d=10mm):130m
Overall dimensions(length *width *height) mm:1350*810*910
Pneumatic motor
Rated power(kw):16kw
Pressure of compress air(mpa):0.25-0.8mpa
Max. Air consumption:≤5m³/min
Break type:Built-in entire disc caab + band hand break
Weight(kg):350
|
Rated lifting force |
1.5kN |
5kN |
15kN |
20 kN |
|
|
Lifting speed |
0~30m/min |
0~24m/min |
0~20m/min |
0~20m/min |
|
|
Steel rope diameter(mm) |
φ10mm |
φ10mm |
φ19mm |
φ19mm |
|
|
Wire capacity |
150m |
150m |
130m |
130m |
|
|
Overall dimensions:(Length*Width*Height) |
850*810*910 |
930*810*910 |
1350*810*910 |
1350*810*910 |
|
|
Motor |
Rated power |
1.8kW |
2.6kW |
16 kW |
16 kW |
|
Pressure of compress air |
0.25-0.8MPa |
0.25-0.8MPa |
0.25-0.8MPa |
0.25-0.8MPa |
|
|
Maximum air consumption |
5m3/min |
5m3/min |
18.5 m3/min |
18.5 m3/min |
|
|
Break type |
Automatic disc brake + manual belt brake |
||||
|
Security measures |
1. Emergency stop device 2．Automatic disc brake 3. Limit protection device 4. Emergency release device 5. Overload protection device 6. Loose rope protection device |
||||
FUNCTIONS
- The winch adopts the drum double support structure, the rope end fixed form is safe and reliable;
- The winch deceleration system adopts (roller) built-in planetary deceleration mechanism;
- The brake system of the winch adopts two kinds of brake forms: internal full stop brake and external handbrake brake. Sealed automatic full disc brake, resistant to salt spray, dust or moisture erosion, manual roller mounted belt brake, the operator can brake;
- The winch can realize two control forms, local operation and remote control operation. Both control forms must have multiple safety protection measures such as loose rope protection, overload protection, limit protection, emergency stop protection, air brake and safe release
