Piston Air Motors Pneumatic Winch JQHS-40×55 12m/min 2.6kW
| Place of Origin | China |
|---|---|
| Brand Name | Juling |
| Certification | API,ISO |
| Model Number | As Specified in the data |
| Minimum Order Quantity | 1 |
| Price | negotiable |
| Packaging Details | Wooden Box |
| Delivery Time | Stock |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Air Consumption | 10-30 M³/min | Warranty | 12 Months |
|---|---|---|---|
| Air Pressure | 0.6-0.8 MPa | Weight | 100-1000 Kg |
| Max Lifting Capacity | 10 Tons | Control Type | Pneumatic |
| Wire Rope Diameter | 8-16 Mm | Max Lifting Speed | 60 M/min |
| Max Lifting Height | 100 M | Drum Capacity | 100-1000 M |
| Certifications | CE, ISO | Usage | Lifting In Oilfield |
| Safety Features | Emergency Stop Button, Overload Protection | Color | Yellow Orange Or Other Colors |
| Material | Steel | ||
| Highlight | Piston Air Motors Pneumatic Winch,Pneumatic Winch 12m/min,Pneumatic Winch 2.6kW |
||
Product Description

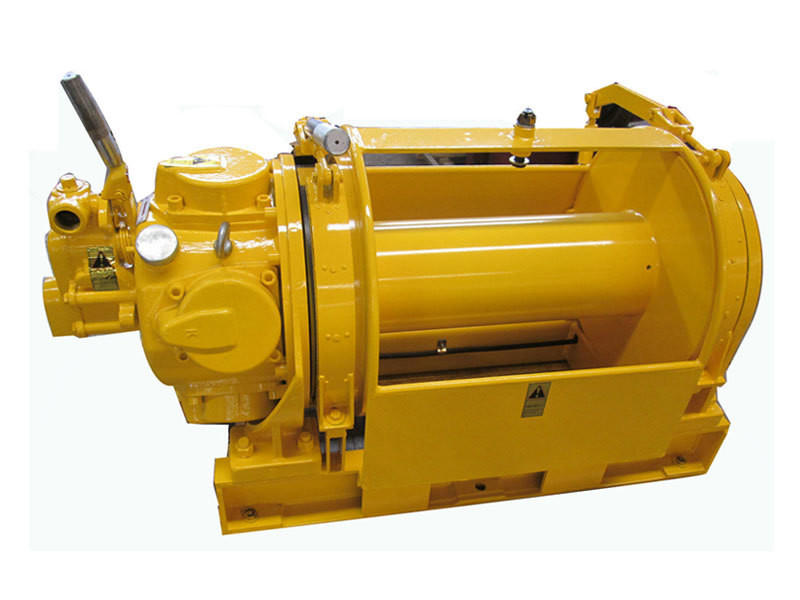

Pneumatic Winch JQHS-40×55 Powered By Piston Air Motors
PRODUCTION
The JQHS series pneumatic lifting systems offer five models with distinct performance parameters. The JQHS-5×12 features a 5kN max lifting force (3kN outer layer), 12m/min speed, 2.6kW power, and 3m³/min air consumption with 30m wire capacity. The JQHS-50×12X increases capacity to 50kN/30kN while maintaining 12m/min speed, paired with 16kW power, 18.3m³/min air use, and 120m wire. For higher speeds, the JQHS-50×20X delivers 70kN/50kN lifting force at 20m/min with identical power and air consumption as the 50×12X but 150m wire. Heavy-duty options include the JQHS-100×10X (100kN/70kN, 10m/min, 30kW, 25.6m³/min, 200m wire) and JQHS-150×6X (150kN/100kN, 6m/min, same power/air as 100×10X). All models operate at 0.8MPa intake pressure, balancing efficiency with robust load capacities across industrial applications.
NUMBERING METHOUD
○1 JQHS:Double support piston type pneumatic winch
○2 ,max lifting force in first layer:kN
○3 ,max speed: m/min
○4 ,Brake:X-hand brake ,disc brake；Z-hand brake,auto brake；S-hand brake ,foot brake；
○5 ,Variant product serial number:A,B,C etc.
OTHER PARAMETERS
|
Item |
Specification |
||||
|
Model |
JQHS-5*12 |
JQHS-50*12X |
JQHS-50*20X |
JQHS-100*10X |
JQHS-150*6X |
|
Max. lifting force |
5kN |
50kN |
70kN |
100kN |
150kN |
|
Max.out layer lift force |
3kN |
30kN |
50kN |
70kN |
100kN |
|
Max. lifting speed |
12m/min |
12m/min |
20m/min |
10m/min |
6m/min |
|
Rated power |
2.6kw |
16kw |
16kw |
30kw |
30kw |
|
Air intake pressure |
0.8Mpa |
0.8Mpa |
0.8Mpa |
0.8Mpa |
0.8Mpa |
|
Rated air consumption |
3m3/min |
18.3m3/min |
18.3m3/min |
25.6m3/min |
25.6m3/min |
|
Wire capacity |
30 |
120 |
150m |
200m |
200m |
|
Diameter of wire |
8mm(8/25 in) |
20mm(3/4 in) |
20mm(3/4 in) |
24mm(15/16 in) |
24mm(15/16 in) |
|
Net weight |
550g |
700Kg |
1100Kg |
2100Kg |
2200Kg |
