Dual Clutch Pneumatic Wind Winch XJFH-5/35-C-Type 35m/min With Power Output
| Place of Origin | China |
|---|---|
| Brand Name | Juling |
| Certification | API,ISO |
| Model Number | As Specified in the data |
| Minimum Order Quantity | 1 |
| Price | negotiable |
| Packaging Details | Wooden Box |
| Delivery Time | Stock |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Series | XJFH | Control Type | Pneumatic |
|---|---|---|---|
| Application | Heavy Duty Lifting | Certifications | CE, ISO |
| Usage | Lifting In Oilfield | Safety Features | Emergency Stop Button, Overload Protection |
| Color | Yellow Orange Or Other Colors | Material | Steel |
| Warranty | 12 Months | ||
| Highlight | Dual Clutch Wind Winch,35m/min Wind Winch,35m/min Pneumatic Winch |
||
Product Description

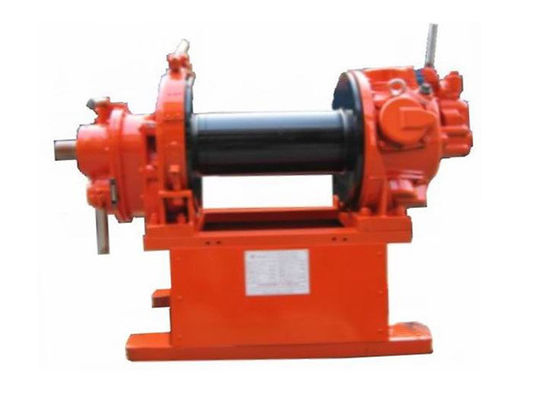

Wind Winch XJFH-5/35-C-Type Dual Clutch With Power Output
PRODUCTION
The XJFH series air winch stands out for its exceptional performance and reliability in demanding environments. Powered by an air motor and equipped with a gear reduction mechanism, it delivers robust traction and lifting capabilities. Its compact design ensures easy operation and installation, while its explosion-proof nature makes it ideal for hazardous areas such as oil fields, mining, and flammable gas zones. The winch offers smooth, stepless speed control, low maintenance requirements, and a variety of braking systems to suit different operational needs. Additionally, it supports optional safety features like automatic braking, overload protection, and emergency stop devices, ensuring both efficiency and safety in diverse applications.
NUMBERING METHOUD
1. XJFH:The piston type Pneumatic Winches
2. First floor Max. lifting force:*10 kN
3. Max. lifting speed:m/min
4. The product change the type mark:The basic type has no code

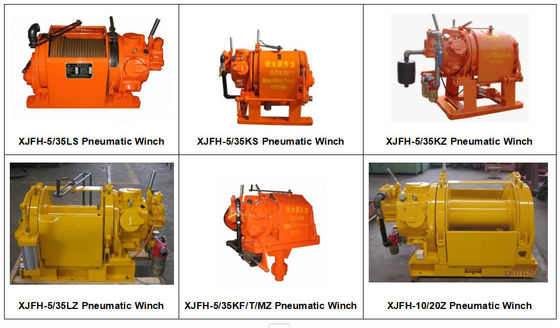

5. The base form mark High base:ellipsis;low base:L ; flan base :F ; T type base:T M type base:M ; Y type base:Y ; E type base:E
6. brake type:single hand brake: ellipsis; double brake(hand brake ＋foot brake):S Double brake(hand brake＋auto brake):Z ；
Three brake(hand brake＋foot brake+auto brake): ZS；
PARAMETERS
|
Item |
Specification |
||||
|
Model |
XJFH-3/35 * |
XJFH-5/35 * |
XJFH-8/25 * |
XJFH-10/20 * |
XJFH-13/8 |
|
Max. lifting force |
30kN |
50kN |
80kN |
100kN |
130kN |
|
Max. lifting speed |
35m/min |
35m/min |
25m/min |
20m/min |
8m/min |
|
Rated power |
13.2kw |
16kw |
30kw |
30kw |
30kw |
|
Air intake pressure |
0.8Mpa |
0.8Mpa |
0.8Mpa |
0.8Mpa |
0.8Mpa |
|
Rated air consumption |
12.7m3/min |
18.3m3/min |
25.6m3/min |
25.6m3/min |
25.6m3/min |
|
Wire capacity |
160m ( Single brake) 140m(Double brake) |
140m (Single brake ) 120m(Double brake) |
120m |
120m |
200m |
|
Diameter of wire |
16mm(5/8 in) |
20mm(3/4 in) |
24mm(15/16 in |
24mm(15/16 in |
26mm |
|
Base connecting dimension |
912mm*500mm (High base) |
912mm*500mm (High base) |
- |
- |
- |
|
912mm*392mm (low base) |
912mm*392mm (low base) |
||||
|
Net weight |
550Kg (500Kg) |
550Kg (500Kg) |
1300Kg |
1400Kg |
2000kg |
