DJFY-60*2 Series Remote Control Electric Winch Explosion Proof 165ft Rope Capacity
| Place of Origin | China |
|---|---|
| Brand Name | Juling |
| Certification | API,ISO |
| Model Number | As Specified in the data |
| Minimum Order Quantity | 1 |
| Price | negotiable |
| Packaging Details | Wooden Box |
| Delivery Time | Stock |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Certifications | CE, ISO | Usage | Lifting In Oilfield |
|---|---|---|---|
| Safety Features | Emergency Stop Button, Overload Protection | Color | Yellow Orange Or Other Colors |
| Material | Steel | Warranty | 12 Months |
| Highlight | Explosion Proof Electric Winch,Remote Control Electric Winch 165ft,165ft Rope Capacity Electric Winch |
||
Product Description

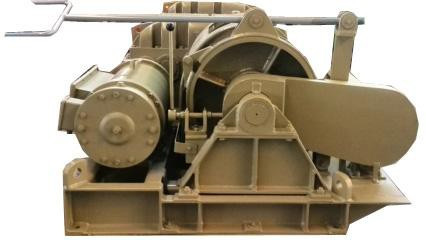

DJFY-60*2 Series Remote Control Electric Winch
PRODUCTION
DJFY type electric winch is a winch device which is powered by motor and drives reel through gear reduction mechanism to achieve heavy traction and lifting. It has the advantages of compact structure, convenient operation, safe and reliable work, simple maintenance, smooth operation and so on.
The DJFY electric winch can be operated remotely.
NUMBERING METHOD
① DJFY:DJ- electric winch, F- explosion-proof, Y- remote control.
○2 Max lifting force in first layer: :kN.
③ Max speed : m/min.
TECHNICAL PARAMETER
|
Item |
Specification parameter |
||||
|
Model |
DJFY-5*16 |
DJFY-20*8 |
DJFY-30*20 |
DJFY-50*19/10 |
DJFY-60*2 |
|
Ambient temperature |
-25℃∽40℃ |
||||
|
Specification of lubricating oil |
GL-5,80w-90. Freezing point -60 |
||||
|
Max Force lb |
1125 |
4500 |
6750 |
11250 |
13500 |
|
Max speed ft/s |
0.88 |
0.44 |
1.1 |
1.1/0.55 |
0.11 |
|
Rated power H.P |
2 |
5.4 |
14.7 |
24.8/14.7 |
5.4 |
|
Rope capacity ft |
130 |
260 |
390 |
390 |
165 |
|
Wire rope diameter in |
0.24 |
0.55 |
0.63 |
0.75 |
0.787 |
|
Overall dimension: L*W*H(in) |
27.6*11*13 |
49*23.5*24 |
46*30*24 |
57.5*32*26.6 |
53*32*26 |
