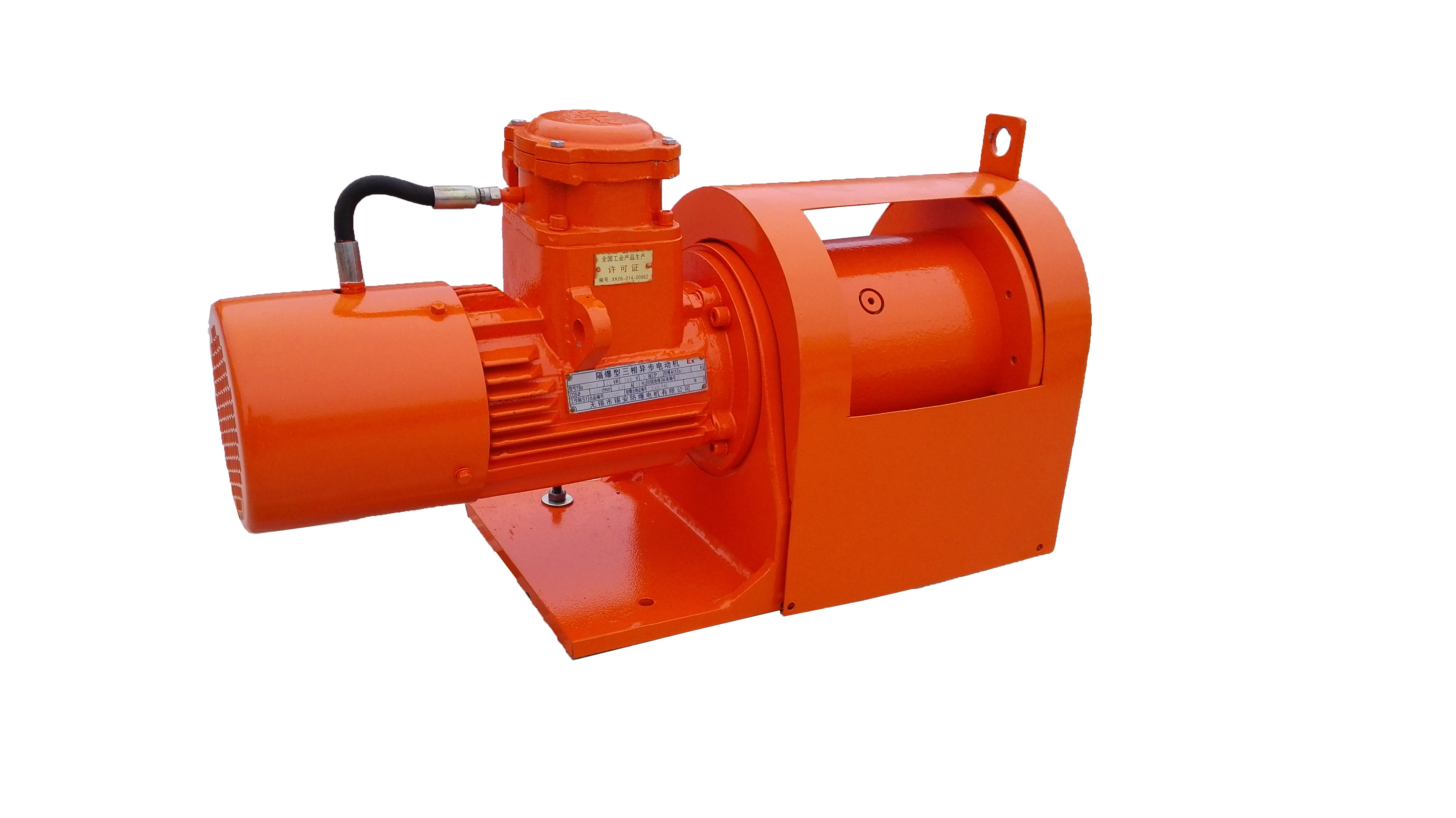

Siemens Electric Winch with Automatic Load-Holding Brake
| Brand Name | Juling |
|---|---|
| Certification | CE,ABS,API |
| Model Number | DJFY |
| Minimum Order Quantity | 1 |
| Price | Negotiable |
| Delivery Time | 20 |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Power Source | Electric | Braking System | Automatic Load-Holding |
|---|---|---|---|
| Electrical Band | Siemens | Motor Type | Permanent Magnet |
| Lifting Limit Switch | Included | Slng Type | Steel Wire Rope |
| Weight | 25 Lbs | Hydraulic Brake | Included |
| Highlight | Siemens electric winch with brake,automatic load-holding winch,industrial electric winch |
||
Product Description
Siemens Electrical Band and Customizable Working Speed The Perfect Combination in Juling Winch
Product Specifications
| Attribute | Value |
|---|---|
| Power Source | Electric |
| Braking System | Automatic Load-Holding |
| Electrical Band | Siemens |
| Motor Type | Permanent Magnet |
| Lifting Limit Switch | Included |
| Slng Type | Steel Wire Rope |
| Weight | 25 Lbs |
| Hydraulic Brake | Included |
Product Overview
The Juling Winch Electric Winch is a powerful and versatile tool engineered for demanding traction and lifting applications. With adjustable lift heights ranging from 6 to 30 meters, this winch delivers reliable performance across construction, industrial, and off-road environments.
Key Features
- Customizable working speed for precise control and smooth operation
- Siemens electrical components for enhanced reliability
- Permanent magnet motor for consistent power delivery
- Automatic load-holding braking system for safety
- Multiple lift height options for versatile applications
Applications
The Juling DJFY electric winch is a high-quality Chinese-manufactured solution suitable for diverse industrial applications. Certified to CE, ABS, and API standards, it offers simple maintenance requirements for reduced downtime and operational costs.
Technical Parameters
| Item | DJFY-5*16 | DJFY-20*8 | DJFY-30*20 | DJFY-50*19/10 | DJFY-60*2 |
|---|---|---|---|---|---|
| Ambient temperature | -25℃∽40℃ | ||||
| Specification of lubricating oil | GL-5,80w-90. Freezing point -60 | ||||
| Max Force lb | 1125 | 4500 | 6750 | 11250 | 13500 |
| Max speed ft/s | 0.88 | 0.44 | 1.1 | 1.1/0.55 | 0.11 |
| Rated power H.P | 2 | 5.4 | 14.7 | 24.8/14.7 | 5.4 |
| Rope capacity ft | 130 | 260 | 390 | 390 | 165 |
| Wire rope diameter in | 0.24 | 0.55 | 0.63 | 0.75 | 0.787 |
| Overall dimension: L*W*H(in) | 27.6*11*13 | 49*23.5*24 | 46*30*24 | 57.5*32*26.6 | 53*32*26 |
Packaging & Shipping
The Electric Winch is securely packaged in protective foam within a sturdy cardboard box to ensure damage-free transit. Orders are processed within 1-2 business days and shipped via reliable carriers for prompt delivery.
Frequently Asked Questions
What is the brand name of this Electric Winch?
The brand name is Juling.
What is the model number of this Electric Winch?
The model number is DJFY.
Where is this Electric Winch manufactured?
This Electric Winch is manufactured in China.
What certifications does this Electric Winch have?
This Electric Winch is certified with CE, ABS, and API.
What are the payment terms for purchasing this Electric Winch?
The payment terms are T/T.
