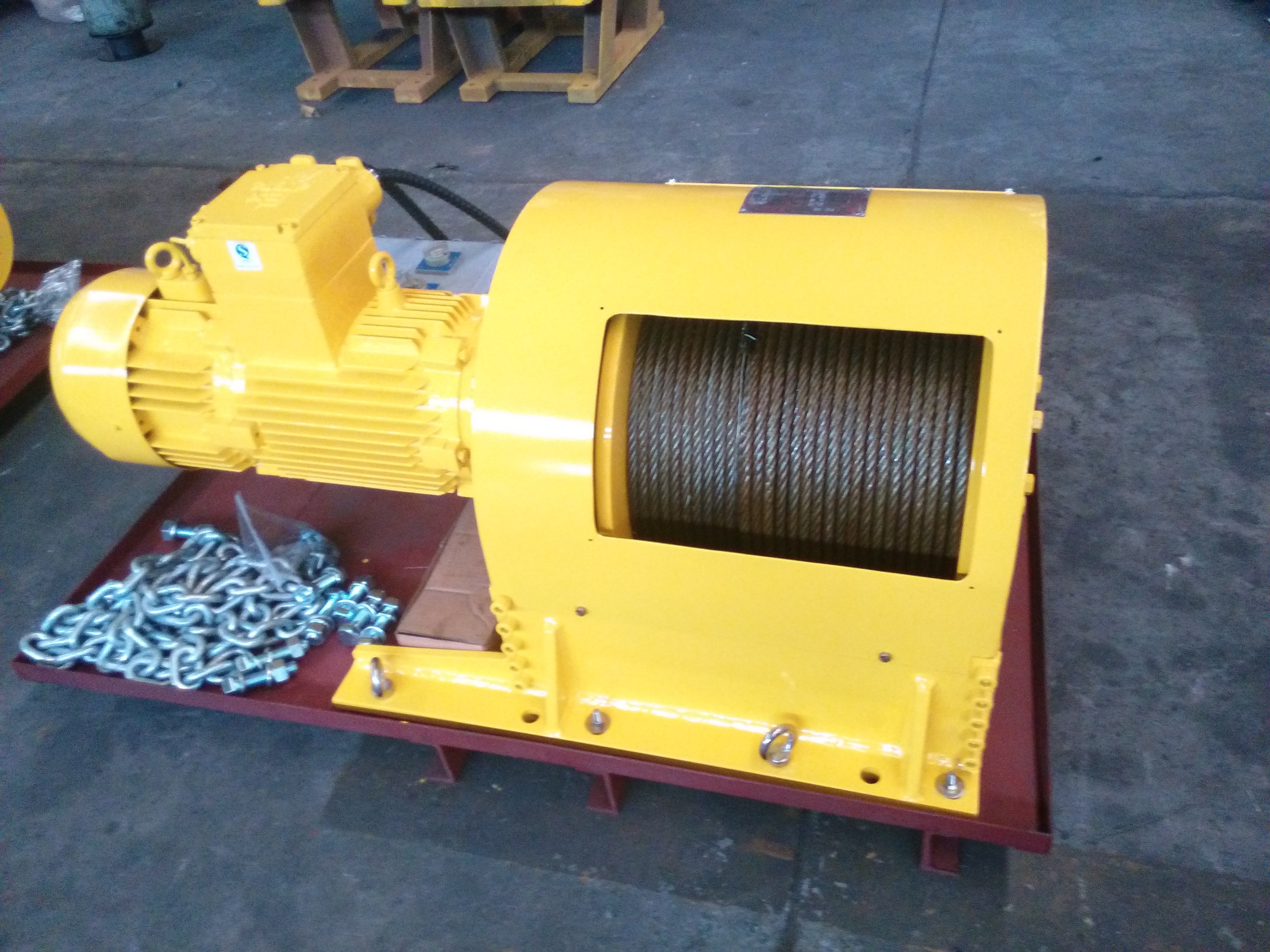

Explosion Proof Electric Winch with Remote Control DJFY Series
| Place of Origin | China |
|---|---|
| Brand Name | Juling |
| Certification | API,ISO |
| Model Number | As Specified in the data |
| Minimum Order Quantity | 1 |
| Price | negotiable |
| Packaging Details | Wooden Box |
| Delivery Time | Stock |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Certifications | CE, ISO | Usage | Lifting In Oilfield |
|---|---|---|---|
| Safety Features | Emergency Stop Button, Overload Protection | Color | Yellow Orange Or Other Colors |
| Material | Steel | Warranty | 12 Months |
| Highlight | explosion proof electric winch,remote control electric winch,DJFY series electric winch |
||
Product Description
Electric Explosion Proof Winch Remote Controlled 390ft DJFY Type
Key Features
- Explosion-proof design for hazardous environments
- Remote control operation for enhanced safety
- Robust steel construction for durability
- Emergency stop button and overload protection
- Available in yellow orange or custom colors
- 12-month warranty for peace of mind
Certifications
CE, ISO certified for quality and safety compliance
Primary Application
Designed for lifting operations in oilfield environments and other industrial settings
Product Overview
The DJFY-type electric winch is a motor-powered lifting and traction device that drives a reel through a gear reduction mechanism, enabling heavy-duty operations. Designed for efficiency and reliability, it features a compact structure, smooth operation, and user-friendly controls.
Its remote operation capability enhances safety and convenience, allowing operators to manage tasks from a distance. The winch is built for durability, with low-maintenance requirements and stable performance under demanding conditions.
Numbering Method
- DJFY: DJ- electric winch, F- explosion-proof, Y- remote control
- Max lifting force in first layer: :kN
- Max speed: m/min
Technical Specifications
| Model | DJFY-5*16 | DJFY-20*8 | DJFY-30*20 | DJFY-50*19/10 | DJFY-60*2 |
|---|---|---|---|---|---|
| Ambient temperature | -25℃ to 40℃ | ||||
| Lubricating oil specification | GL-5, 80w-90. Freezing point -60 | ||||
| Max Force (lb) | 1125 | 4500 | 6750 | 11250 | 13500 |
| Max speed (ft/s) | 0.88 | 0.44 | 1.1 | 1.1/0.55 | 0.11 |
| Rated power (H.P) | 2 | 5.4 | 14.7 | 24.8/14.7 | 5.4 |
| Rope capacity (ft) | 130 | 260 | 390 | 390 | 165 |
| Wire rope diameter (in) | 0.24 | 0.55 | 0.63 | 0.75 | 0.787 |
| Overall dimensions: L*W*H (in) | 27.6*11*13 | 49*23.5*24 | 46*30*24 | 57.5*32*26.6 | 53*32*26 |
Industrial Performance
Ideal for various industrial applications, the DJFY electric winch combines advanced engineering with practical functionality to ensure secure and efficient load handling. Its robust design and dependable operation make it a preferred choice for lifting and pulling tasks in demanding environments.
