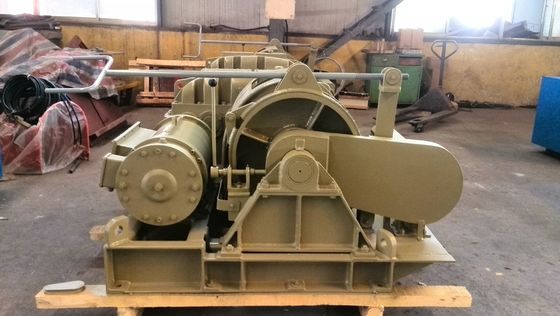

Electric Winch Powered by Motor Automatic Load-Holding Braking System 25 Lbs High Load Capacity for Heavy-Duty Applications
| Brand Name | Juling |
|---|---|
| Certification | CE,ABS,API |
| Model Number | DJFY |
| Minimum Order Quantity | 1 |
| Price | Negotiable |
| Delivery Time | 20 |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Gear Reduction Ratio | 187.2:1 | Brake | Hydraulic Brake System |
|---|---|---|---|
| Motor Type | Permanent Magnet | Braking System | Automatic Load-Holding |
| Working Speed | As Your Needs | Electrical Band | Siemens |
| Hydraulic Brake | Included | Electric Engine | 55 KW-6 |
Product Description
Product Description:
The Electric Winch is a versatile and powerful tool designed for a wide range of lifting and pulling applications. With its robust construction and advanced features, this winch is the perfect solution for tasks that require the lifting or pulling of heavy loads with ease and precision.
Featuring a strong and durable Steel Wire Rope, this Electric Winch is equipped to handle tough jobs with efficiency and reliability. The steel wire rope provides excellent strength and durability, ensuring a secure grip on heavy loads during lifting and pulling operations.
One of the key highlights of this Electric Winch is its Double Limit Switch, which is included as a standard feature. The Double Limit Switch enhances safety and control during operation by providing precise limits for both the upper and lower ends of the lifting range. This feature ensures that the winch stops automatically when reaching the set limits, preventing overloading or overextension.
Applications:
Electric winches are versatile tools that find applications in various industries and scenarios due to their ability to provide safe and reliable work with the convenience of being powered by a motor. The Juling DJFY electric winch, originating from China, is a top-quality product that is widely used in different settings. Its certifications, including CE, ABS, and API, ensure its compliance with international quality standards, making it a preferred choice for many users.
| TECHNICAL PARAMETER | |||||
| Item | Specification parameter | ||||
| Model | DJFY-5*16 | DJFY-20*8 | DJFY-30*20 | DJFY-50*19/10 | DJFY-60*2 |
| Ambient temperature | -25℃∽40℃ | ||||
| Specification of lubricating oil | GL-5,80w-90. Freezing point -60 | ||||
| Max Force lb | 1125 | 4500 | 6750 | 11250 | 13500 |
| Max speed ft/s | 0.88 | 0.44 | 1.1 | 1.1/0.55 | 0.11 |
| Rated power H.P | 2 | 5.4 | 14.7 | 24.8/14.7 | 5.4 |
| Rope capacity ft | 130 | 260 | 390 | 390 | 165 |
| Wire rope diameter in | 0.24 | 0.55 | 0.63 | 0.75 | 0.787 |
| Overall dimension: | 27.6*11*13 | 49*23.5*24 | 46*30*24 | 57.5*32*26.6 | 53*32*26 |
| L*W*H(in) | |||||
Packing and Shipping:
Product Name: Electric Winch
Description: A heavy-duty electric winch designed for pulling and lifting tasks.
Package Contents: Electric winch, remote control, user manual
Package Dimensions: 12" x 8" x 10"
Package Weight: 20 lbs
Shipping Method: Standard Ground Shipping
Shipping Cost: Calculated at checkout
FAQ:
Q: What is the brand name of this electric winch?
A: The brand name is Juling.
Q: What is the model number of this electric winch?
A: The model number is DJFY.
Q: Where is this electric winch manufactured?
A: This electric winch is made in China.
Q: What certifications does this electric winch have?
A: This electric winch is certified with CE, ABS, and API.
Q: What are the payment terms for purchasing this electric winch?
A: The payment terms are T/T.
