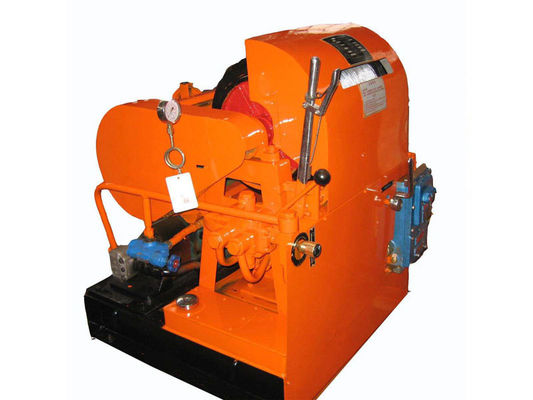

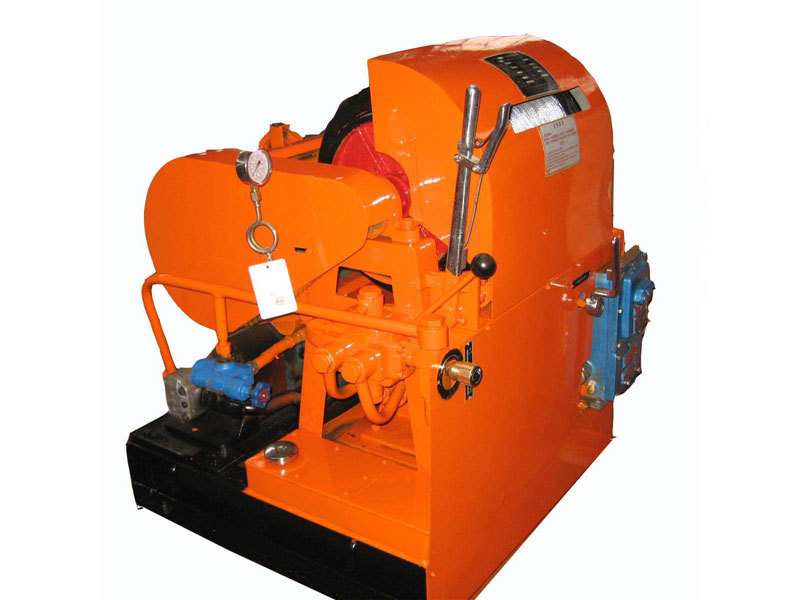

Remote Control Electric Logging Winch Variable Frequency Speed For Oilfield

Logging Winch  Electric Variable Frequency Speed

INTRODUCTION

CJ series logging winch are used in the process of oil drilling to measure the inclination and depth of oil wells and collect other downhole conditions and parameters. The structure of the whole machine adopts hydraulic mechanical stepless speed change, which is easy to operate, runs smoothly, and has a wide speed range. The electrical components can be equipped with explosion-proof or non-explosion-proof configurations according to user requirements, which is safe and reliable. According to the different requirements of users, the drawworks counting system has a mechanical counting system and an intelligent counting system. The mechanical counting system can display the depth position of the logging instrument when it is lowered or lifted. The intelligent counting system is equipped with a depth measurement system to display the lowering or lifting of the logging tool. In addition to the depth position, it can also display the speed of lowering or lifting and the real-time tension of the rope, and can set overspeed alarm and wellhead distance alarm to prevent accidental fall of the wellhead, effectively protect the measuring instrument, and ensure operation safety. At present, the maximum logging depth can reach 12000m. This series of well logging drawworks is the ideal equipment for oil field logging.

The product can also be customized according to user requirements. Electric variable frequency speed regulating logging winch is a customized new product designed according to user requirements.

MANUFACTURE INTRODUCTION

Tai 'an Juling Drilling Equipment Co., Ltd. is a high-tech enterprise specializing in the research and development and manufacturing of pneumatic machinery. It has more than 30 years of experience in the research and development and manufacturing of pneumatic machinery. It is a professional research and development manufacturer of pneumatic winch, and a member of the first-class supply network of Sinopec and petrochina.

According to the market demand, the company constantly carries out the research and development and application promotion of new products. At present, there are JQH series, JQHS series and XJFH series pneumatic winch, ZJQH series manned pneumatic winch, QJP series pneumatic winch, QDH series pneumatic hoist, DSJ series winding machine, DJFY series electric winch, CJ series logging winch, YJ series hydraulic winch and more than a dozen series, more than 100 varieties of products. Only the pneumatic winch has formed eight series from 5kN to 150kN, dozens of varieties of product scale, complete the remote air control, remote control, near and far dual control and air brake, emergency release, overload protection and many other product functional design, product performance has reached or close to the world advanced level. Widely used in oil, gas, coal, metal and Marine resources exploration and development and other fields. Exports to the United States, Russia, Singapore and Europe, the Middle East, South America and other dozens of countries and regions.

The company attaches great importance to the quality system construction and product certification work, passed the ISO9001: 2015 Quality management system certification, safety mark certification of mining products, product type approval of China Classification Society (CCS), API certification of American Petroleum Institute, type approval and CE certification of American Classification Society (ABS) for "Manned pneumatic winch" products, and EU CE certification and ATEX explosion proof certification for pneumatic winch.
