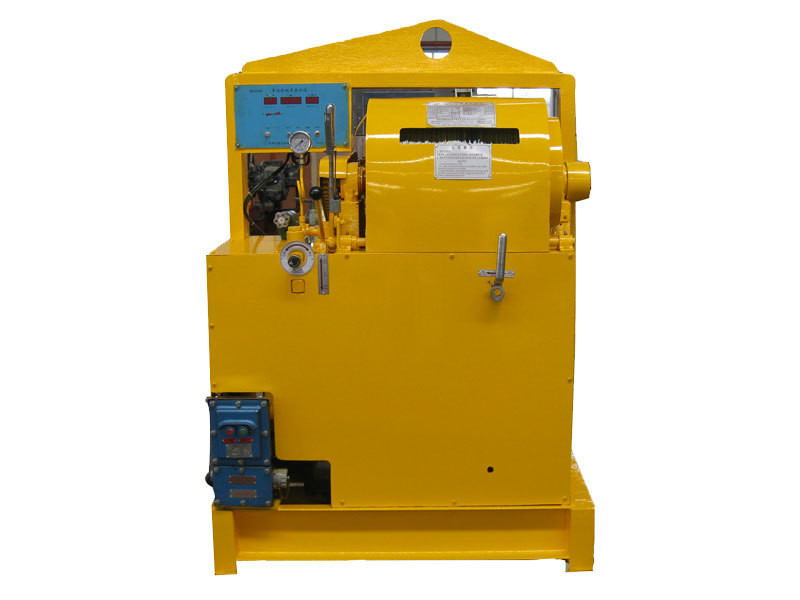

Vertical Hydraulic Logging Winch Stepless Speed Explosion Proof For Oilfield

Vertical Logging Winch Hydraulic Stepless Speed

INTRODUCTION

CJ type logging winch is used to measure the slope and depth of the oil well. The structure adopts hydraulic mechanical steveless transmission, which is easy to operate and smooth to run. The transmission range is large, the lifting weight is large, the measuring depth is deep, and the electrical components can be explosion-proof or non-explosion-proof devices according to user requirements, which is safe and reliable. The winch is equipped with a counter component to show the measuring depth and effectively protect the measuring equipment of the oil well. It has greater advantages than the domestic similar products and is an ideal equipment for oilfield logging.

Logging depth counting methods: mechanical, electronic

PARAMETER

① Type code-( CJ- Hydraulic stepless speed；DCJ- Variable frequency speed)

② variant marking (L - vertical; basic type no note).

③ Maximum logging depth: m.

④ Cable diameter, mm (recommended 2.5 not marked).

⑤ Explosion proof marking (F- explosion-proof type; ordinary type without label);

⑥ Counting system designation (Z- intelligent counting system; common counting system no marking);
