Marine Pneumatic Air Winch 10m/min To 70m/min With Overload Protection

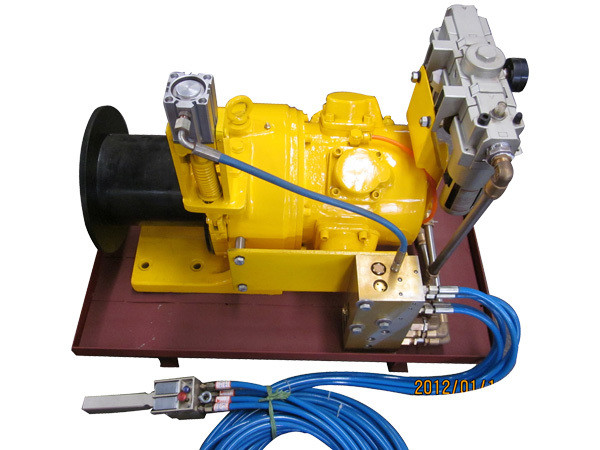

JQH-5×48QB Pneumatic/Air Winch (With Integrated Module)

INTRODUCTION OF JQH SERIES AIR WINCH

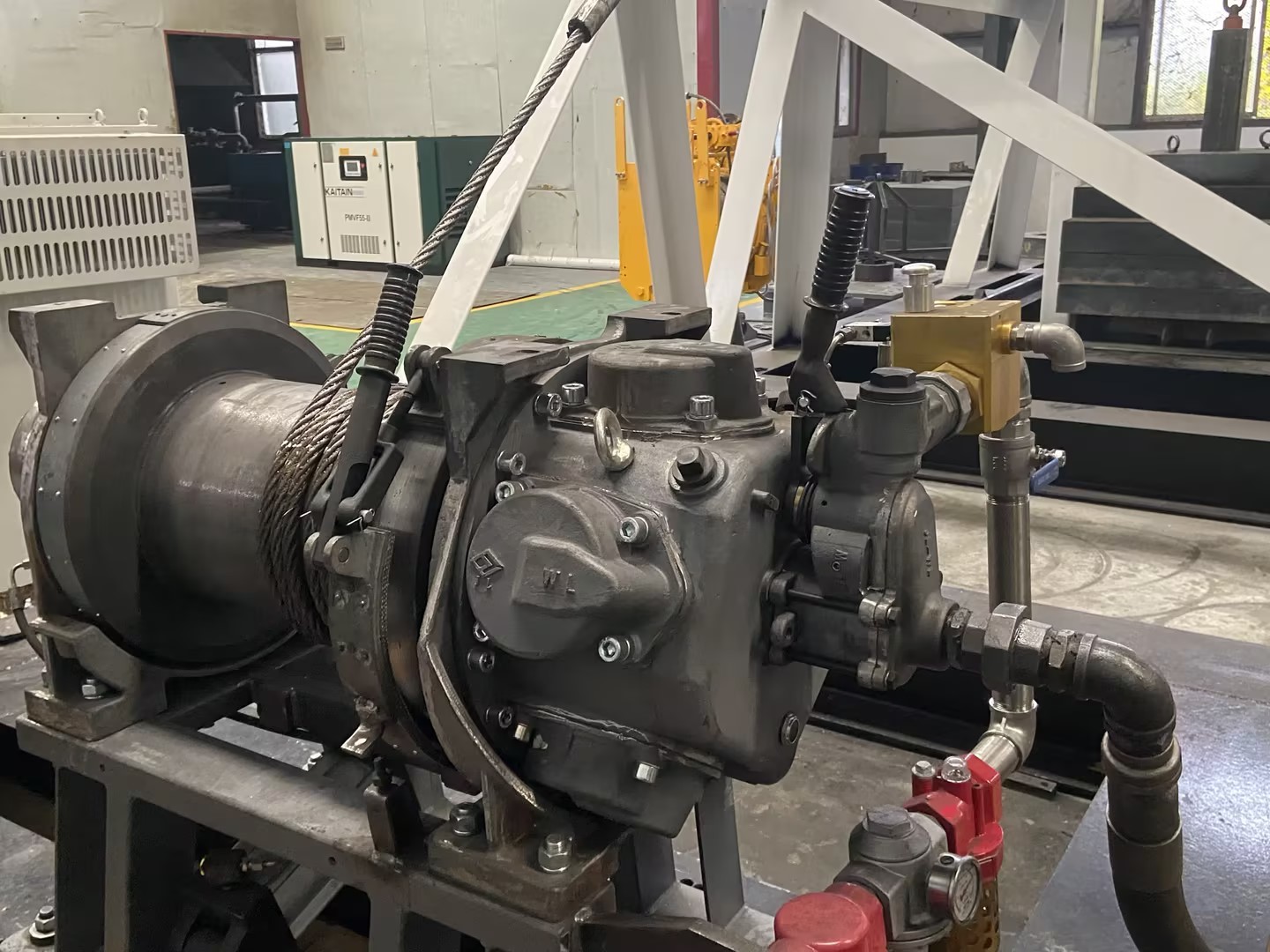

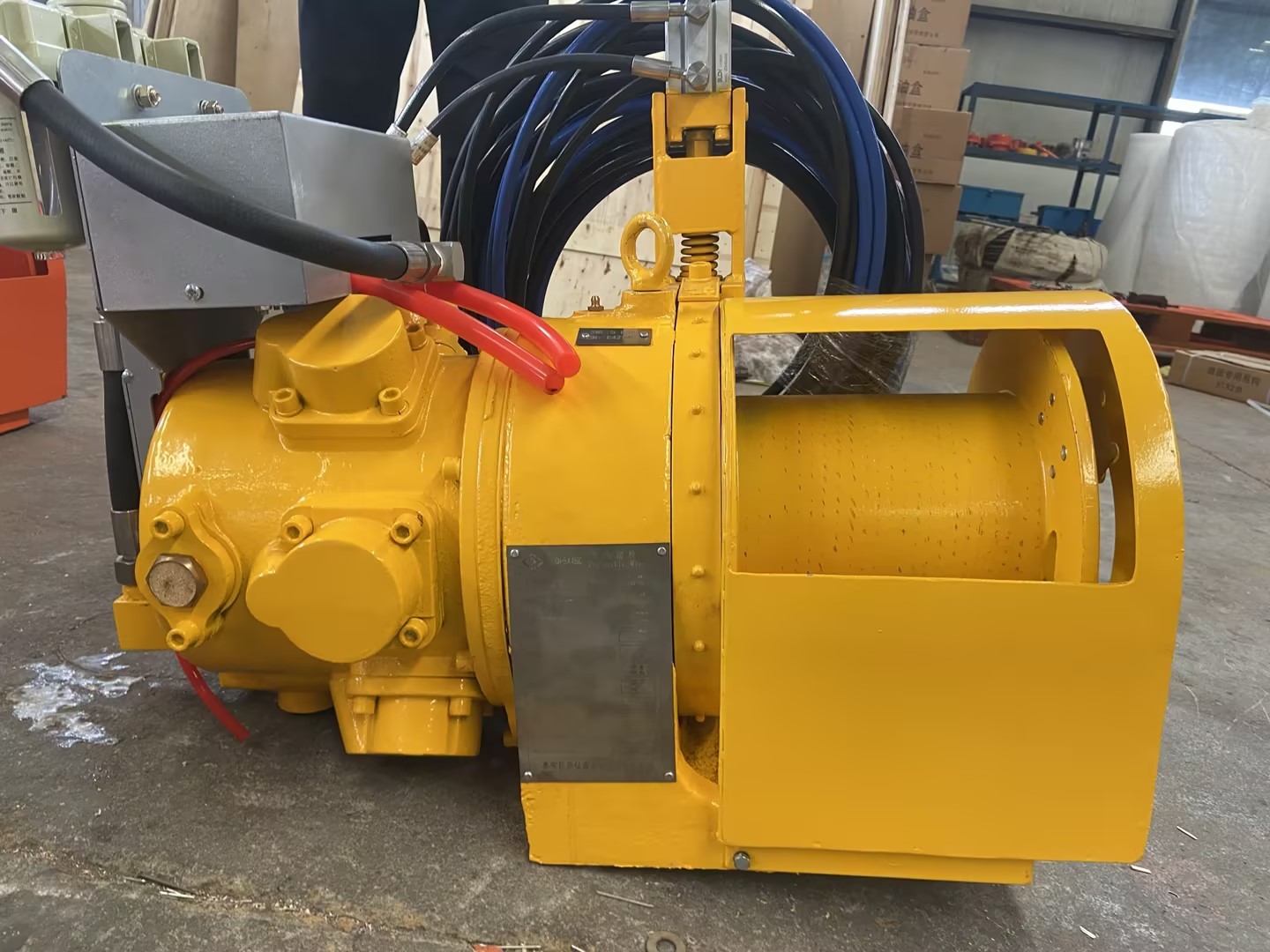

JQH type pneumatic winch is a single drum winch powered by piston type gas motor. The winch is mainly used for hauling and lifting heavy objects in oilfield drilling (including ocean), mining mines such as metal mines and coal mines, and construction engineering departments.

Because of its small size, light weight, adjustable speed, easy handling and fast installation, it is more suitable for underground operations in mining fields. For example, in the excavation, mining face loading station scheduling, hauling mining cars and lifting in the narrow tunnel underground, hauling tools, instruments and other heavy objects.

Operation mode classification: local control, remote control,local contro＋remote control;The winch can be equipped with safety protection functions: automatic braking, automatic rope arrangement device, emergency stop protection device, overload protection device, emergency release device, etc.

TECHNICAL PARAMETERS

○1 JQH:Single support piston type pneumatic winch

○2 max lifting force in first layer:kN

○3 max speed:m/min

○4 Q:Remote control gas control；D:electronic control；Y: telecontrol ；

○5 Variant product serial number:A,B,C etc.

TAJL Products are widely used in oil, natural gas, coal, metal and other mining exploration and development and Marine exploration, shipbuilding and other industries, only pneumatic machinery products have more than a dozen series, more than 100 varieties, exported to the Middle East, South America, Africa, India, Singapore and other 20 countries and regions, similar products in the domestic market share of more than 80%, It is currently the largest professional R & D manufacturer of pneumatic winch in China
