Oilfield Lifting Telecontrol Air Winch Corrosion Resistant
| Place of Origin | China |
|---|---|
| Brand Name | Juling |
| Certification | API,ISO |
| Model Number | As Specified in the data |
| Minimum Order Quantity | 1 |
| Price | negotiable |
| Packaging Details | Wooden Box |
| Delivery Time | Stock |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Color | Yellow Orange Or Other Colors | Warranty | 12 Months |
|---|---|---|---|
| Condition | New | Material | Steel |
| Application | Lifting And Pulling | Rope Speed | 10 M/min - 40 M/min |
| Rated Load | 0.5 Ton - 10 Ton | Control Type | Remote Control Or Manual Control |
| Suitable Environment | Explosion-proof, Corrosion-resistant | Air Inlet Size | 1/2 Inch - 1 Inch |
| Air Hose Size | 3/4 Inch - 1 Inch | Rope Diameter | 8 Mm - 20 Mm |
| Air Pressure | 0.6 MPa - 0.8 MPa | Drum Capacity | 50 M - 200 M |
| Power Source | Compressed Air | Air Consumption | 1.5 M³/min - 3.0 M³/min |
| Model | JQH Series Air Winch | Certifications | CE, ISO |
| Usage | Lifting In Oilfield | Safety Features | Emergency Stop Button, Overload Protection |
| Highlight | Telecontrol Air Winch,Oilfield Lifting Air Winch,Corrosion Resistant Air Winch |
||
Product Description

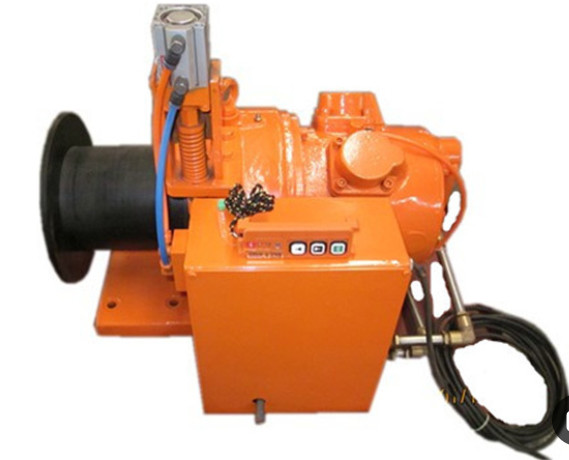

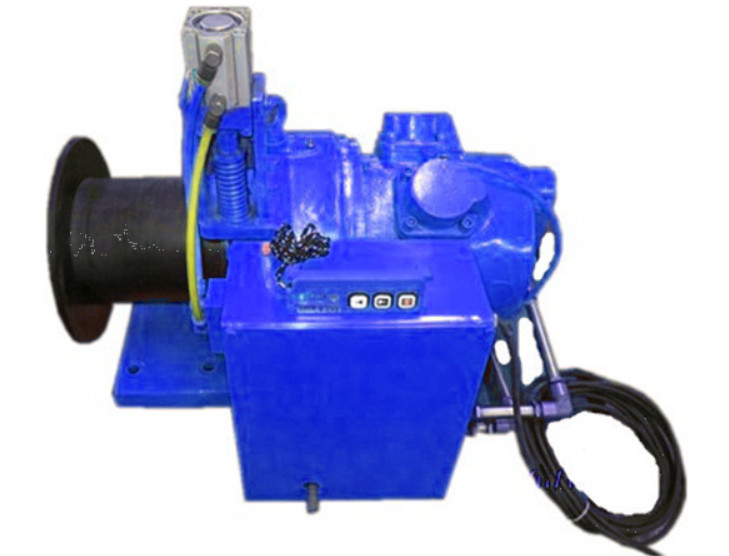

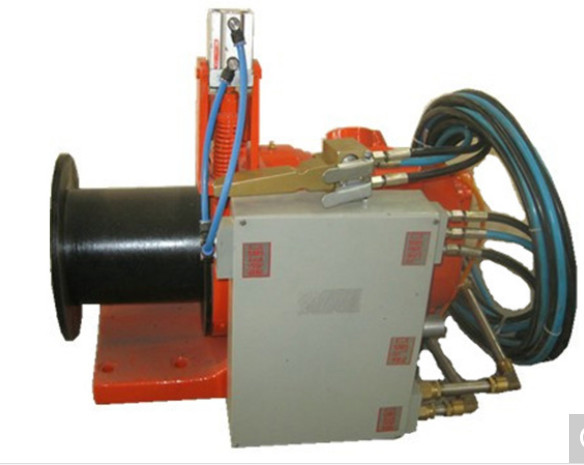

JQH-5×48Y Telecontrol Air Winch Juling Branch
INTRODUCTION OF JQH SERIES AIR WINCH
Tai 'an Juling Drilling Equipment Co., Ltd. is a high-tech enterprise specializing in the research and development and manufacturing of pneumatic machinery. It has more than 30 years of experience in the research and development and manufacturing of pneumatic machinery. It is a professional research and development manufacturer of pneumatic winch, and a member of the first-class supply network of Sinopec and petrochina.
JQH type pneumatic winch is a single drum winch powered by piston type gas motor. The winch is mainly used for hauling and lifting heavy objects in oilfield drilling (including ocean), mining mines such as metal mines and coal mines, and construction engineering departments.
Because of its small size, light weight, adjustable speed, easy handling and fast installation, it is more suitable for underground operations in mining fields. For example, in the excavation, mining face loading station scheduling, hauling mining cars and lifting in the narrow tunnel underground, hauling tools, instruments and other heavy objects.
Operation mode classification: local control, remote control,local contro＋remote control;The winch can be equipped with safety protection functions: automatic braking, automatic rope arrangement device, emergency stop protection device, overload protection device, emergency release device, etc.
TECHNICAL PARAMETERS
○1 JQH:Single support piston type pneumatic winch
○2 max lifting force in first layer:kN
○3 max speed:m/min
○4 Q:Remote control gas control；D:electronic control；Y: telecontrol ；
○5 Variant product serial number:A,B,C etc.
