JQHS-100×10 Pneumatic Lifting Winch 0.6-0.8 MPa With Automatic Disc Brake

JQHS-100×10 Pneumatic Winch With Auto Brake

PRODUCTION

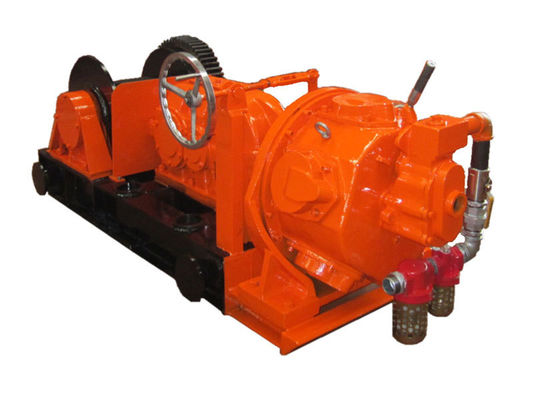

JQHS series pneumatic winches (also known as XJFH series pneumatic winches due to the implementation of double-standard model writing method) are powered by piston air motors, and drive the reel through the reduction mechanism to realize the pneumatic support structure on the reel for heavy traction or lifting. Winch, the tension range of this series of pneumatic winches covers 10-150kN. It has the advantages of compact structure, convenient operation, safe and reliable work, simple maintenance, stable operation, stepless speed change, etc. It is especially suitable for places with explosive and flammable gases such as oil fields, geological drilling, mining, and offshore platform operations.

We are constantly developing and promoting new products. At present, we have more than 10 series and 100 varieties of products, including JQH series, JQHS series and XJFH series pneumatic winches, ZJQH series manned pneumatic winches, QJP series pneumatic winches, QDH series pneumatic hoists, DSJ series rope reversing machines, DJFY series electric winches, CJ series logging winches, and YJ series hydraulic winches. For pneumatic winches alone, there are eight series and dozens of varieties of products, ranging from 5kN to 150kN. We have completed the functional design of remote pneumatic control, remote remote control, long-distance and short-distance dual control, air brake, emergency release, overload protection, and many other product functions. The product performance has reached or is close to the world's advanced level, and is widely used in the exploration and development of oil, natural gas, coal, metals, and marine resources. We have exported to dozens of countries and regions, including the United States, Russia, Singapore, Europe, the Middle East, and South America.

NUMBERING METHOUD

1. JQHS:Double support piston type pneumatic winch
2. max lifting force in first layer:kN
3. max speed: m/min
4. Brake:X-hand brake  ,disc brake；Z-hand brake,auto brake；S-hand brake  ,foot brake；
5. Variant product serial number:A,B,C etc.
6. OTHER PARAMETERS

aian Juling Drilling Equipment Co., Ltd. is a high-tech enterprise specializing in the research and development and manufacture of pneumatic machinery. It has more than 30 years of experience in pneumatic machinery research and development and manufacturing. It is a professional manufacturer of pneumatic winches.

According to market demand, the company continues to carry out research and development and application promotion of new products:

Pneumatic winch (0.5 ton-30 tons), logging winch (2000 to 12000 meters), rewinding machine (5 tons to 40 tons), pneumatic winch (0.2 tons to 30 tons), manned pneumatic winch (150kg to 5000kg), electric winch (0.5 tons to 30 tons), electric manned winch (150kg to 5000kg),hydraulic Winch (0.5 tons to 25 tons), pneumatic hoist (0.1t-100t) and other varieties, according to user needs can also be developed skid cable winch, vehicle winch, winch rewind, generator set and other products;
