Automatic Disc Brake Man Rider Winch 16kw For Land Or Offshore Oil Operations
| Place of Origin | China |
|---|---|
| Brand Name | Juling |
| Certification | API,ISO |
| Model Number | As Specified in the data |
| Document | Products Catalogue-Winch.pdf |
| Minimum Order Quantity | 1 |
| Price | negotiable |
| Packaging Details | Wooden Box |
| Delivery Time | Stock |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Certifications | CE, ISO | Usage | Lifting In Oilfield |
|---|---|---|---|
| Safety Features | Emergency Stop Button, Overload Protection | Color | Yellow Orange Or Other Colors |
| Material | Steel | Warranty | 12 Months |
| Highlight | Man Rider Winch 16kw,Offshore Oil Operations Man Rider Winch,Automatic Disc Brake Man Rider Winch |
||
Product Description

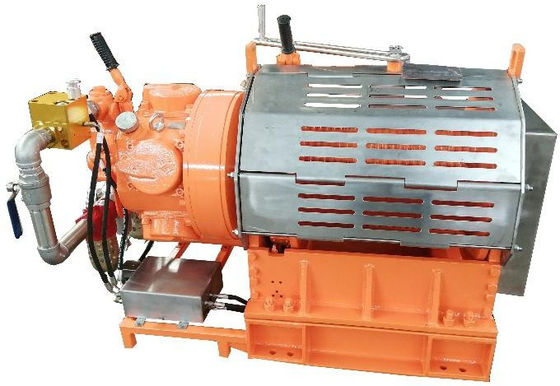

MAN RIDER WINCH-MODEL:ZJQH-20×20B
INTRODUCTION
Juling Manrider air winch is a kind of pneumatic motor as the power, through the built-in planetary deceleration mechanism to drive the drum, to achieve lifting or traction device. It is mainly used for land or offshore oil operations and can be used for both manned and payload lifting purposes.
8:1 design factor for manned; 5:1 design factor for load. The minimum ratio of drum diameter to cable diameter is 18:1, which prevents cable wear.
MAIN PARAMETERS
Manrider winch
Model:ZJQH-20*20B
Rated lifting force:20 kn
Lifting speed:0~20m/min
Steel rope diameter(mm):Φ10mm
Wire capacity (d=10mm):130m
Overall dimensions(length *width *height) mm:1350*810*910
Pneumatic motor
Rated power(kw):16kw
Pressure of compress air(mpa):0.25-0.8mpa
Max. Air consumption:≤5m³/min
Break type:Built-in entire disc caab + band hand break
Weight(kg):350
|
Rated lifting force |
1.5kN |
5kN |
15kN |
20 kN |
|
|
Lifting speed |
0~30m/min |
0~24m/min |
0~20m/min |
0~20m/min |
|
|
Steel rope diameter(mm) |
φ10mm |
φ10mm |
φ19mm |
φ19mm |
|
|
Wire capacity |
150m |
150m |
130m |
130m |
|
|
Overall dimensions:(Length*Width*Height) |
850*810*910 |
930*810*910 |
1350*810*910 |
1350*810*910 |
|
|
Motor |
Rated power |
1.8kW |
2.6kW |
16 kW |
16 kW |
|
Pressure of compress air |
0.25-0.8MPa |
0.25-0.8MPa |
0.25-0.8MPa |
0.25-0.8MPa |
|
|
Maximum air consumption |
5m3/min |
5m3/min |
18.5 m3/min |
18.5 m3/min |
|
|
Break type |
Automatic disc brake + manual belt brake |
||||
|
Security measures |
1. Emergency stop device 2. Automatic disc brake 3. Limit protection device 4. Emergency release device 5. Overload protection device 6. Loose rope protection device |
||||
MAIN FEATURES
- Compact structure and convenient installation;
- Stepless speed regulation, simple operation;
- It can be used in places with flammable and explosive gases;
- Large starting torque, can be started with load;
- Easy operation, maintenance, smooth running;
