Double Support Piston Type Pneumatic Lifting Winch 20m/min With Hand or Foot Brake
| Place of Origin | China |
|---|---|
| Brand Name | Juling |
| Certification | API,ISO |
| Model Number | As Specified in the data |
| Minimum Order Quantity | 1 |
| Price | negotiable |
| Packaging Details | Wooden Box |
| Delivery Time | Stock |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Drum Capacity | 100 M | Lifting Speed | 20 M/min |
|---|---|---|---|
| Wire Rope Diameter | 8 Mm | Application | Lifting And Pulling Heavy Loads In Various Industries |
| Load Capacity | 1 Ton | Air Consumption | 1.2 M³/min |
| Control Type | Pneumatic | Air Pressure | 0.6 MPa |
| Certifications | CE, ISO | Usage | Lifting In Oilfield |
| Safety Features | Emergency Stop Button, Overload Protection | Color | Yellow Orange Or Other Colors |
| Material | Steel | Warranty | 12 Months |
| Highlight | Piston Type Pneumatic Lifting Winch,Double Support Pneumatic Lifting Winch,Pneumatic Lifting Winch 20m/min |
||
Product Description
PRODUCTION

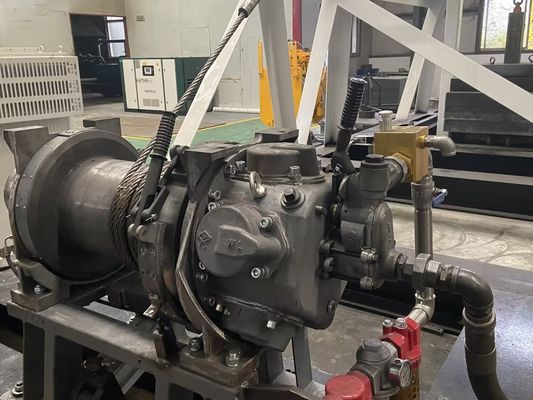

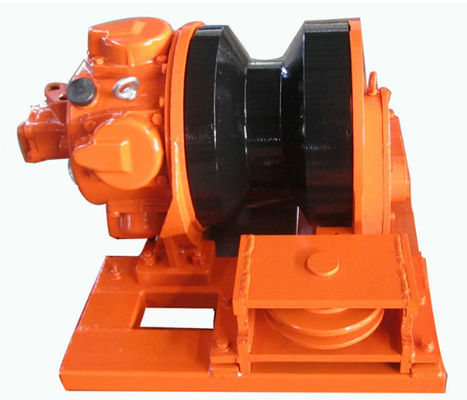

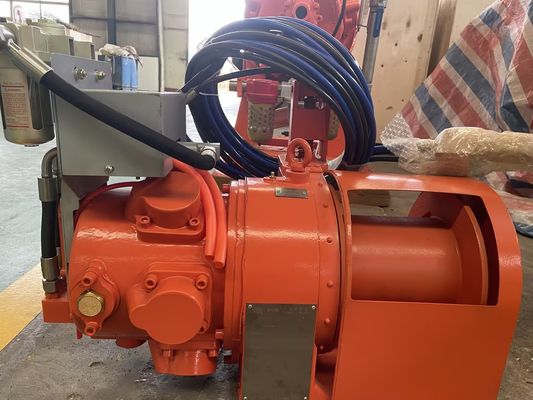

JQHS series pneumatic winches (also known as XJFH series pneumatic winches due to the implementation of double-standard model writing method) are powered by piston air motors, and drive the reel through the reduction mechanism to realize the pneumatic support structure on the reel for heavy traction or lifting. JQHS series pneumatic winches can be divided into common high seat, ordinary low seat, flange seat, trapezoidal buckle seat, straight thread buckle seat, lug plate seat, bent plate seat and other base types according to the structure of the base. And the combination can be divided into single brake (hand brake), double brake (hand brake + foot brake, hand brake + cylinder off brake, hand brake + disc brake off brake), three brakes (hand brake + foot brake + cylinder off brake). Users can choose according to actual operation needs.
In addition, JQHS series pneumatic winches are also equipped with optional configurations such as buckle wire ropes, hooks, shackles, pendant chains, and gas treatment triples. Users can choose according to their own needs and selected winches.
NUMBERING METHOUD
- JQHS:Double support piston type pneumatic winch
- max lifting force in first layer:kN
- max speed: m/min
- Brake:X-hand brake ,disc brake；Z-hand brake,auto brake；S-hand brake ,foot brake；
- Variant product serial number:A,B,C etc.
PARAMETERS
|
Item |
Specification |
||||
|
Model |
JQHS-5*12 |
JQHS-50*12X |
JQHS-50*20X |
JQHS-100*10X |
JQHS-150*6X |
|
Max. lifting force |
5kN |
50kN |
70kN |
100kN |
150kN |
|
Max.out layer lift force |
3kN |
30kN |
50kN |
70kN |
100kN |
|
Max. lifting speed |
12m/min |
12m/min |
20m/min |
10m/min |
6m/min |
|
Rated power |
2.6kw |
16kw |
16kw |
30kw |
30kw |
|
Air intake pressure |
0.8Mpa |
0.8Mpa |
0.8Mpa |
0.8Mpa |
0.8Mpa |
|
Rated air consumption |
3m3/min |
18.3m3/min |
18.3m3/min |
25.6m3/min |
25.6m3/min |
|
Wire capacity |
30 |
120 |
150m |
200m |
200m |
|
Diameter of wire |
8mm(8/25 in) |
20mm(3/4 in) |
20mm(3/4 in) |
24mm(15/16 in) |
24mm(15/16 in) |
|
Net weight |
550g |
700Kg |
1100Kg |
2100Kg |
2200Kg |
