Double Support Piston Type Pneumatic Air Winch Model JQHS-100×10 For Offshore
| Place of Origin | China |
|---|---|
| Brand Name | Juling |
| Certification | API,ISO |
| Model Number | As Specified in the data |
| Minimum Order Quantity | 1 |
| Price | negotiable |
| Packaging Details | Wooden Box |
| Delivery Time | Stock |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Company | Manufacture | Warranty | 12 Months |
|---|---|---|---|
| Color | Yellow Orange Or Other Colors | Material | Steel |
| Lifting Speed | 10-40 M/min | Application | Offshore, Mining, Construction, Etc. |
| Type | Air Winch | Capacity | 0.5-10 Tons |
| Drum Capacity | 100-1000 M | Power Source | Air |
| Air Pressure | 0.6-0.8 MPa | Usage | Lifting In Oilfield |
| Control Type | Pneumatic | Certifications | CE, ISO |
| Safety Features | Emergency Stop Button, Overload Protection | ||
| Highlight | Piston Type Air Winch,Offshore Pneumatic Air Winch,Double Support Portable Air Winch |
||
Product Description

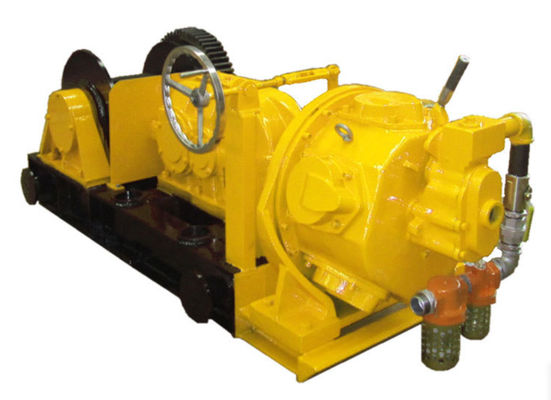

Air Winch With Model JQHS-100×10 Double Support Piston Type Nneumatic Winch
PRODUCTION
JQHS series pneumatic winches (also known as XJFH series pneumatic winches due to the implementation of double-standard model writing method) are powered by piston air motors, and drive the reel through the reduction mechanism to realize the pneumatic support structure on the reel for heavy traction or lifting. Winch, the tension range of this series of pneumatic winches covers 10-150kN. It has the advantages of compact structure, convenient operation, safe and reliable work, simple maintenance, stable operation, stepless speed change, etc. It is especially suitable for places with explosive and flammable gases such as oil fields, geological drilling, mining, and offshore platform operations.
Juling always takes "scientific and technological innovation, quality first, customer satisfaction, continuous improvement" as the purpose, constantly improve and improve product performance, further enhance product quality, research and development of more applicable, functional excellence, excellent quality of new products, to provide users with better products and services.
NUMBERING METHOUD
○1. JQHS: Double support piston type pneumatic winch
○2. max lifting force in first layer:kN
○3. max speed: m/min
○4. Brake: X-hand brake ,disc brake；Z-hand brake,auto brake；S-hand brake ,foot brake；
○5. Variant product serial number: A,B,C etc.
OTHER PARAMETERS
|
Item |
Specification |
||||
|
Model |
JQHS-5*12 |
JQHS-50*12X |
JQHS-50*20X |
JQHS-100*10X |
JQHS-150*6X |
|
Max. lifting force |
5kN |
50kN |
70kN |
100kN |
150kN |
|
Max.out layer lift force |
3kN |
30kN |
50kN |
70kN |
100kN |
|
Max. lifting speed |
12m/min |
12m/min |
20m/min |
10m/min |
6m/min |
|
Rated power |
2.6kw |
16kw |
16kw |
30kw |
30kw |
|
Air intake pressure |
0.8Mpa |
0.8Mpa |
0.8Mpa |
0.8Mpa |
0.8Mpa |
|
Rated air consumption |
3m3/min |
18.3m3/min |
18.3m3/min |
25.6m3/min |
25.6m3/min |
|
Wire capacity |
30 |
120 |
150m |
200m |
200m |
|
Diameter of wire |
8mm(8/25 in) |
20mm(3/4 in) |
20mm(3/4 in) |
24mm(15/16 in) |
24mm(15/16 in) |
|
Net weight |
550g |
700Kg |
1100Kg |
2100Kg |
2200Kg |
