Piston Air Motors Air Winch JQHS-100×10 Double Standard Mode Dia 8mm - 16mm Wire Rope

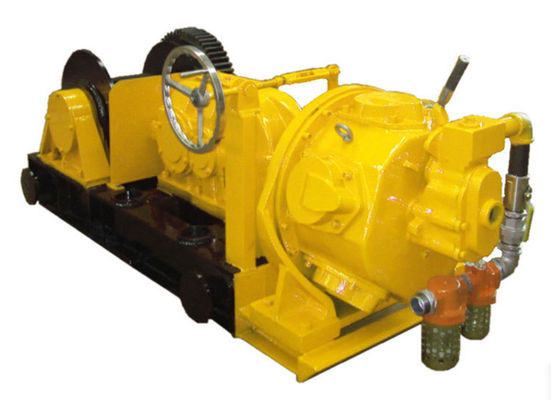

Air Winch  With Model JQHS-100×10 Powered By Piston Air Motors Double-Standard Mode

PRODUCTION

JQHS series pneumatic winches (also known as XJFH series pneumatic winches due to the implementation of double-standard model writing method) are powered by piston air motors, and drive the reel through the reduction mechanism to realize the pneumatic support structure on the reel for heavy traction or lifting. Winch, the tension range of this series of pneumatic winches covers 10-150kN. It has the advantages of compact structure, convenient operation, safe and reliable work, simple maintenance, stable operation, stepless speed change, etc. It is especially suitable for places with explosive and flammable gases such as oil fields, geological drilling, mining, and offshore platform operations.

Juling offers the broadest range of pneumatic winches for different purposes, varying in capacities, operating methods, and different applications. Our winches have been market-proven and trusted by thousands of our clients (miners, offshore workers, shipbuilding crews) operating worldwide. Also, our air-powered winches have passed CE, ISO, ABS, ATEX and DNV etc internationally-recognized verifications, literally proven and qualified meeting the strictest local safe lifting standards around the globe.

NUMBERING METHOUD

○1 JQHS:Double support piston type pneumatic winch

○2 max lifting force in first layer:kN

○3 max speed: m/min

○4 Brake:X-hand brake  ,disc brake；Z-hand brake,auto brake；S-hand brake  ,foot brake；

○5 Variant product serial number:A,B,C etc.

OTHER PARAMETERS
