JQH-5×48 Steel Pneumatic Winch Powered By Piston Type Gas Motor

JQH-5×48 Air Winch Powered By Piston Type Gas Motor

INTRODUCTION OF JQH SERIES AIR WINCH

Tai 'an Juling Drilling Equipment Co., Ltd. is a high-tech enterprise specializing in the research and development and manufacturing of pneumatic machinery. It has more than 30 years of experience in the research and development and manufacturing of pneumatic machinery. It is a professional research and development manufacturer of pneumatic winch, and a member of the first-class supply network of Sinopec and petrochina.

According to the market demand, the company constantly carries out the research and development and application promotion of new products. At present, there are JQH series, JQHS series and XJFH series pneumatic winch, ZJQH series manned pneumatic winch, QJP series pneumatic winch, QDH series pneumatic hoist, DSJ series winding machine, DJFY series electric winch, CJ series logging winch, YJ series hydraulic winch and more than a dozen series, more than 100 varieties of products. Only the pneumatic winch has formed eight series from 5kN to 150kN, dozens of varieties of product scale, complete the remote air control, remote control, near and far dual control and air brake, emergency release, overload protection and many other product functional design, product performance has reached or close to the world advanced level. Widely used in oil, gas, coal, metal and Marine resources exploration and development and other fields. Exports to the United States, Russia, Singapore and Europe, the Middle East, South America and other dozens of countries and regions.

The company attaches great importance to the quality system construction and product certification work, passed the ISO9001: 2015 Quality management system certification, safety mark certification of mining products, product type approval of China Classification Society (CCS), API certification of American Petroleum Institute, type approval and CE certification of American Classification Society (ABS) for "Manned pneumatic winch" products, and EU CE certification and ATEX explosion proof certification for pneumatic winch.

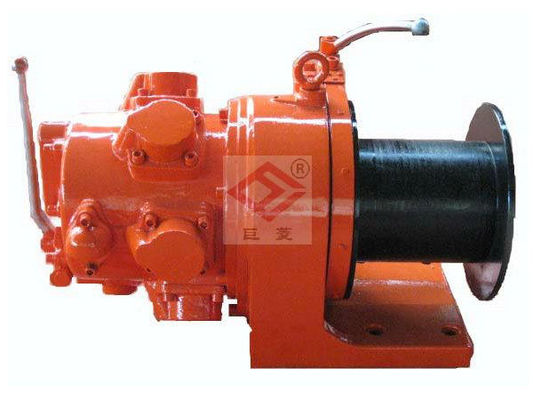

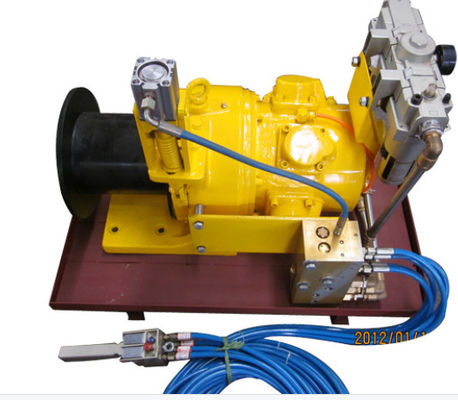

JQH type pneumatic winch is a single drum winch powered by piston type gas motor. The winch is mainly used for hauling and lifting heavy objects in oilfield drilling (including ocean), mining mines such as metal mines and coal mines, and construction engineering departments.

Because of its small size, light weight, adjustable speed, easy handling and fast installation, it is more suitable for underground operations in mining fields. For example, in the excavation, mining face loading station scheduling, hauling mining cars and lifting in the narrow tunnel underground, hauling tools, instruments and other heavy objects.

Operation mode classification: local control, remote control,local contro＋remote control;The winch can be equipped with safety protection functions: automatic braking, automatic rope arrangement device, emergency stop protection device, overload protection device, emergency release device, etc.

TECHNICAL PARAMETERS

○1  JQH:Single support piston type pneumatic winch

○2  max lifting force in first layer:kN

○3  max speed:m/min

○4  Q:Remote control gas control；D:electronic control；Y: telecontrol ；

○5  Variant product serial number:A,B,C etc.
