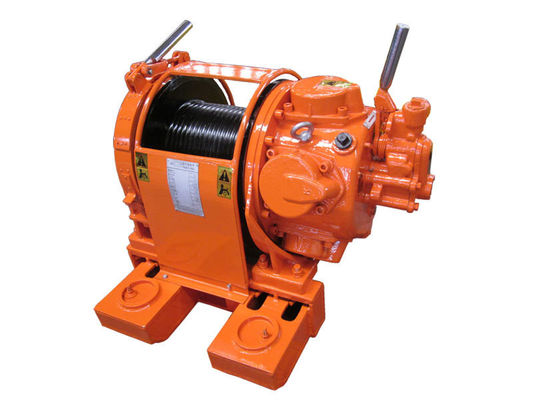

Auto Brake Pneumatic Air Winch Remote Controlled JQHS-80×10 for Lifting and Pulling

JQHS-80×10 Air Winch Auto Brake

PRODUCTION

JQHS series pneumatic winches (also known as XJFH series pneumatic winches due to the implementation of double-standard model writing method) are powered by piston air motors, and drive the reel through the reduction mechanism to realize the pneumatic support structure on the reel for heavy traction or lifting. Winch, the tension range of this series of pneumatic winches covers 10-150kN. It has the advantages of compact structure, convenient operation, safe and reliable work, simple maintenance, stable operation, stepless speed change, etc. It is especially suitable for places with explosive and flammable gases such as oil fields, geological drilling, mining, and offshore platform operations.

The built-in planetary transmission disc brake pneumatic winch is a new type of pneumatic winch developed for the special operation requirements of the marine environment. Its sealed transmission and braking structure and special coating process meet the reliability and corrosion resistance in harsh environments. Requirements: The winch's automatic rope discharge and discharge device is a rope discharge device designed to prevent the wire rope from being messy when the winch is unloaded. After continuous testing, verification and improvement, it has achieved a good rope discharge effect and has been widely used. It is favored by users on the pneumatic winch for drilling in the range of 30-50kN, and is gradually being grafted and applied to winches of other specifications.

NUMBERING METHOUD

1.    JQHS:Double support piston type pneumatic winch
2.  max lifting force in first layer:kN
3.  max speed: m/min
4.  Brake:X-hand brake  ,disc brake；Z-hand brake,auto brake；S-hand brake  ,foot brake；
5.  Variant product serial number:A,B,C etc.

PARAMETERS

Taian Juling Drilling Equipment Co., Ltd. is a high-tech enterprise specializing in the research and development and manufacture of pneumatic machinery. It has more than 30 years of experience in pneumatic machinery research and development and manufacturing. It is a professional manufacturer of pneumatic winches.

According to market demand, the company continues to carry out research and development and application promotion of new products:

Pneumatic winch (0.5 ton-30 tons), logging winch (2000 to 12000 meters), rewinding machine (5 tons to 40 tons), pneumatic winch (0.2 tons to 30 tons), manned pneumatic winch (150kg to 5000kg), electric winch (0.5 tons to 30 tons), electric manned winch (150kg to 5000kg),hydraulic Winch (0.5 tons to 25 tons), pneumatic hoist (0.1t-100t) and other varieties, according to user needs can also be developed skid cable winch, vehicle winch, winch rewind, generator set and other products;

TAJL Products are widely used in oil, natural gas, coal, metal and other mining exploration and development and Marine exploration, shipbuilding and other industries, only pneumatic machinery products have more than a dozen series, more than 100 varieties, exported to the Middle East, South America, Africa, India, Singapore and other 20 countries and regions, similar products in the domestic market share of more than 80%, It is currently the largest professional R & D manufacturer of pneumatic winch in China.
