Overload Protection Air Powered Winch JQHS-50×12LZ(A) 0.8Mpa 10-30 m/min
| Place of Origin | China |
|---|---|
| Brand Name | Juling |
| Certification | API,ISO |
| Model Number | As Specified in the data |
| Minimum Order Quantity | 1 |
| Price | negotiable |
| Packaging Details | Wooden Box |
| Delivery Time | Stock |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Color | Yellow Orange Or Other Colors | Rated Line Pull | 500-10000 Kg |
|---|---|---|---|
| Model | JQHS | Air Pressure | 0.6-0.8 MPa |
| Power Source | Air | Drum Capacity | 100-1000 M |
| Air Consumption | 3-8 M³/min | Air Inlet Size | 1/2 Inch |
| Rated Capacity | 0.5-10 Ton | Hose Size | 19 Mm |
| Warranty | 12 Months | Control Type | Pneumatic |
| Braking System | Automatic Disc Brake | Rated Speed | 10-30 M/min |
| Certifications | CE, ISO | Usage | Lifting In Oilfield |
| Safety Features | Emergency Stop Button, Overload Protection | Material | Steel |
| Highlight | Overload Protection Air Powered Winch,Air Powered Winch 30 m/min,Air Powered Winch 0.8Mpa |
||
Product Description

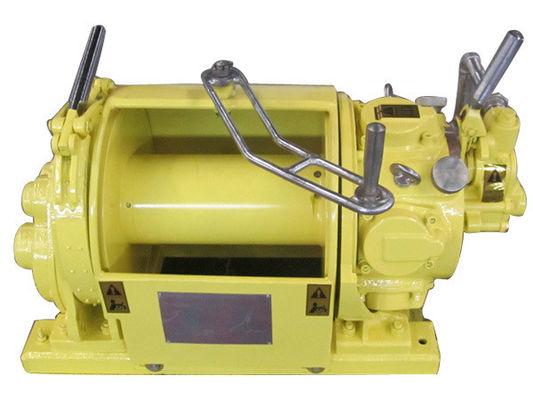

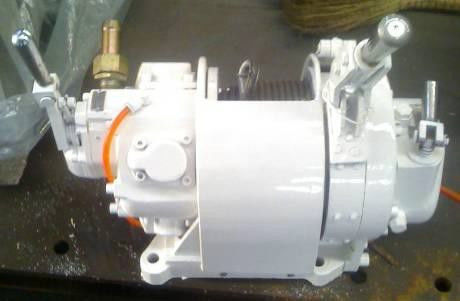

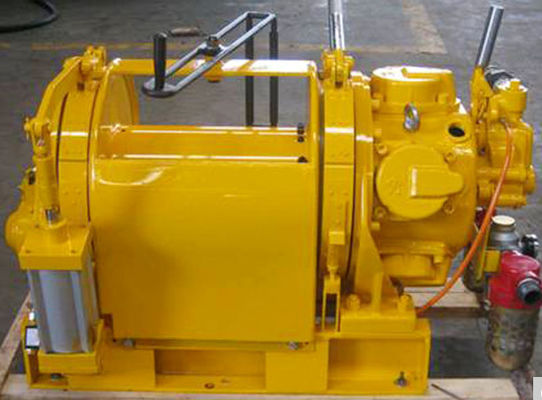

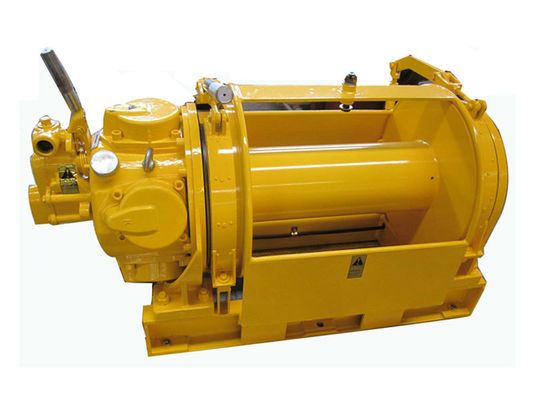

Overload Protection Air Powered Winch JQHS-50×12LZ(A) 10-30 m/min
INTRODUCTION OF JQHS SERIES AIR WINCH
JQHS series air winch is a winch device which is powered by air motor and drives reel through gear reduction mechanism to achieve heavy traction and lifting. It has the advantages of compact structure, convenient operation, safe and reliable work, simple maintenance, smooth running, stepless speed change and so on. As an explosion-proof traction, lifting power device, especially suitable for oil fields (including Marine), geological drilling, mining and explosive, flammable gas and other places.
Operation mode classification: local control, remote control, local contro＋remote control;
The winch can be equipped with safety protection functions: automatic braking, automatic rope arrangement device, emergency stop protection device, overload protection device, emergency release device, etc.
TECHNICAL PARAMETERS
|
Item |
Specification |
||||
|
Model |
JQHS-5*12 |
JQHS-50*12X |
JQHS-50*20X |
JQHS-100*10X |
JQHS-150*6X |
|
Max. lifting force |
5kN |
50kN |
70kN |
100kN |
150kN |
|
Max.out layer lift force |
3kN |
30kN |
50kN |
70kN |
100kN |
|
Max. lifting speed |
12m/min |
12m/min |
20m/min |
10m/min |
6m/min |
|
Rated power |
2.6kw |
16kw |
16kw |
30kw |
30kw |
|
Air intake pressure |
0.8Mpa |
0.8Mpa |
0.8Mpa |
0.8Mpa |
0.8Mpa |
|
Rated air consumption |
3m3/min |
18.3m3/min |
18.3m3/min |
25.6m3/min |
25.6m3/min |
|
Wire capacity |
30 |
120 |
150m |
200m |
200m |
|
Diameter of wire |
8mm(8/25 in) |
20mm(3/4 in) |
20mm(3/4 in) |
24mm(15/16 in) |
24mm(15/16 in) |
|
Net weight |
550g |
700Kg |
1100Kg |
2100Kg |
2200Kg |
