JQHS-40×55 Air Driven Winch Powered By Hand Brake / Auto Brake / Foot Brake
| Place of Origin | China |
|---|---|
| Brand Name | Juling |
| Certification | API,ISO |
| Model Number | As Specified in the data |
| Minimum Order Quantity | 1 |
| Price | negotiable |
| Packaging Details | Wooden Box |
| Delivery Time | Stock |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Air Pressure | 0.6 MPa - 0.8 MPa | Rated Capacity | 0.5 Ton - 10 Ton |
|---|---|---|---|
| Operating Temperature | -20°C - 70°C | Customization | Available |
| Lifting Speed | 10 M/min - 30 M/min | Drum Capacity | 100 M - 1000 M |
| Power Source | Compressed Air | Control Type | Pneumatic Control |
| Type | Air Winch | Air Consumption | 1.5 M³/min - 5 M³/min |
| Wire Rope Diameter | 8 Mm - 20 Mm | Application | Marine, Mining, Construction, Etc. |
| Model | JQHS | Warranty | 12 Months |
| Certifications | CE, ISO | Usage | Lifting In Oilfield |
| Safety Features | Emergency Stop Button, Overload Protection | Color | Yellow Orange Or Other Colors |
| Material | Steel | ||
| Highlight | Hand Brake Air Driven Winch,Auto Brake Air Driven Winch,Foot Brake Air Driven Winch |
||
Product Description

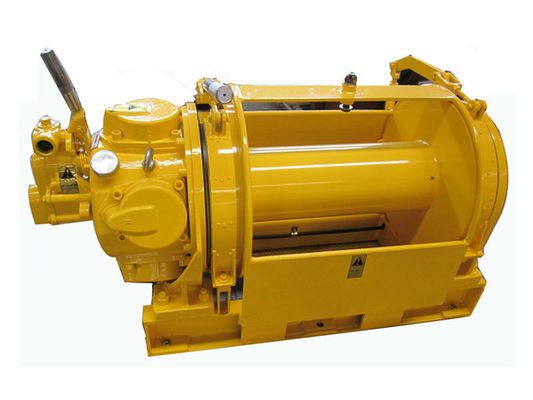

JQHS-40×55 Air Winch Powered Hand Brake,Auto Brake, Foot Brake
PRODUCTION
JQHS series pneumatic winches (also known as XJFH series pneumatic winches due to the implementation of double-standard model writing method) are powered by piston air motors, and drive the reel through the reduction mechanism to realize the pneumatic support structure on the reel for heavy traction or lifting. Winch, the tension range of this series of pneumatic winches covers 10-150kN. It has the advantages of compact structure, convenient operation, safe and reliable work, simple maintenance, stable operation, stepless speed change, etc. It is especially suitable for places with explosive and flammable gases such as oil fields, geological drilling, mining, and offshore platform operations.
This winch is designed to provide reliable safe lifting/ pulling/ suspension solutions and smooth operating experience for the applications in the most extreme environment. Featuring spark-resistant, compact and lightweight, unlimited duty-cycle, and has overload protection. They are especially fit for the works including mining, on & offshore gas and oil drilling, marine platforms, port, and shipbuilding etc.
NUMBERING METHOUD
- JQHS:Double support piston type pneumatic winch
- max lifting force in first layer:kN
- max speed: m/min
- Brake:X-hand brake ,disc brake；Z-hand brake,auto brake；S-hand brake ,foot brake；
- Variant product serial number:A,B,C etc.
OTHER PARAMETERS
|
Item |
Specification |
||||
|
Model |
JQHS-5*12 |
JQHS-50*12X |
JQHS-50*20X |
JQHS-100*10X |
JQHS-150*6X |
|
Max. lifting force |
5kN |
50kN |
70kN |
100kN |
150kN |
|
Max.out layer lift force |
3kN |
30kN |
50kN |
70kN |
100kN |
|
Max. lifting speed |
12m/min |
12m/min |
20m/min |
10m/min |
6m/min |
|
Rated power |
2.6kw |
16kw |
16kw |
30kw |
30kw |
|
Air intake pressure |
0.8Mpa |
0.8Mpa |
0.8Mpa |
0.8Mpa |
0.8Mpa |
|
Rated air consumption |
3m3/min |
18.3m3/min |
18.3m3/min |
25.6m3/min |
25.6m3/min |
|
Wire capacity |
30 |
120 |
150m |
200m |
200m |
|
Diameter of wire |
8mm(8/25 in) |
20mm(3/4 in) |
20mm(3/4 in) |
24mm(15/16 in) |
24mm(15/16 in) |
|
Net weight |
550g |
700Kg |
1100Kg |
2100Kg |
2200Kg |
Taian Juling Drilling Equipment Co., Ltd. is a high-tech enterprise specializing in the research and development and manufacture of pneumatic machinery. It has more than 30 years of experience in pneumatic machinery research and development and manufacturing. It is a professional manufacturer of pneumatic winches.
According to market demand, the company continues to carry out research and development and application promotion of new products:
Pneumatic winch (0.5 ton-30 tons), logging winch (2000 to 12000 meters), rewinding machine (5 tons to 40 tons), pneumatic winch (0.2 tons to 30 tons), manned pneumatic winch (150kg to 5000kg), electric winch (0.5 tons to 30 tons), electric manned winch (150kg to 5000kg),hydraulic Winch (0.5 tons to 25 tons), pneumatic hoist (0.1t-100t) and other varieties, according to user needs can also be developed skid cable winch, vehicle winch, winch rewind, generator set and other products;
TAJL Products are widely used in oil, natural gas, coal, metal and other mining exploration and development and Marine exploration, shipbuilding and other industries, only pneumatic machinery products have more than a dozen series, more than 100 varieties, exported to the Middle East, South America, Africa, India, Singapore and other 20 countries and regions, similar products in the domestic market share of more than 80%, It is currently the largest professional R & D manufacturer of pneumatic winch in China.
