Oilfield Aluminum Pneumatic Air Winch JQHS-5×48 With Automatic Drum Band Brake
| Place of Origin | China |
|---|---|
| Brand Name | Juling |
| Certification | API,ISO |
| Model Number | As Specified in the data |
| Minimum Order Quantity | 1 |
| Price | negotiable |
| Packaging Details | Wooden Box |
| Delivery Time | Stock |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Color | Yellow Orange Or Other Colors | Certifications | CE, ISO |
|---|---|---|---|
| Usage | Lifting In Oilfield | Safety Features | Emergency Stop Button, Overload Protection |
| Material | Steel | Warranty | 12 Months |
| Highlight | Aluminum Pneumatic Air Winch,Automatic Drum Band Brake Pneumatic Winch,Oilfield Pneumatic Air Winch |
||
Product Description

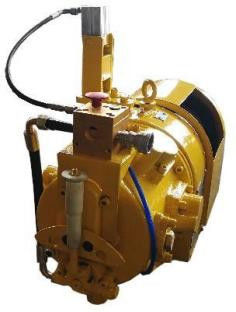

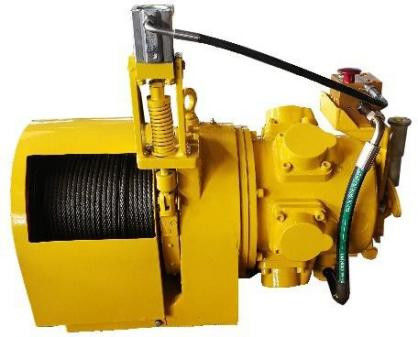

JQHS-5×48 Pneumatic Winch(Automatic Drum Band Brake)
INTRODUCTION OF JQH SERIES AIR WINCH
JQHS series air winch is a winch device which is powered by air motor and drives reel through gear reduction mechanism to achieve heavy traction and lifting. It has the advantages of compact structure, convenient operation, safe and reliable work, simple maintenance, smooth running, stepless speed change and so on. As an explosion-proof traction, lifting power device, especially suitable for oil fields (including Marine), geological drilling, mining and explosive, flammable gas and other places.
Operation mode classification: local control, remote control,local contro＋remote control;
The winch can be equipped with safety protection functions: automatic braking, automatic rope arrangement device, emergency stop protection device, overload protection device, emergency release device, etc.
Brake type: manual belt brake + automatic disc brake
The 0.5 ton aluminum winch is light in weight, small in size and easy to install.
TECHNICAL PARAMETERS
○1 JQHS:Double support piston type pneumatic winch
○2 max lifting force in first layer:kN
○3 max speed: m/min
○4 Brake:X-hand brake ,disc brake；Z-hand brake,auto brake；S-hand brake ,foot brake；
○5 Variant product serial number:A,B,C etc.
