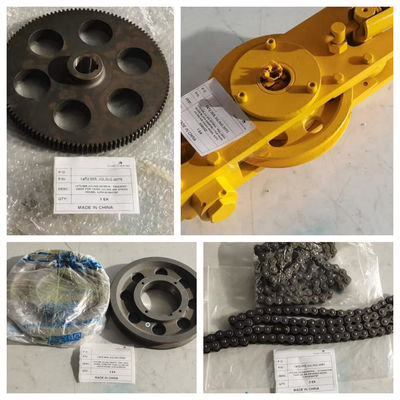

Steel Guide Block Assembly PSQ-1000H FOR TAIAN JULING Air Winch XJFH-5/35KFZP

GUIDE BLOCK ASSEMBLY PSQ-1000H FOR TAIAN JULING AIR WINCH MODEL XJFH-5/35KFZP

PRODUCTION

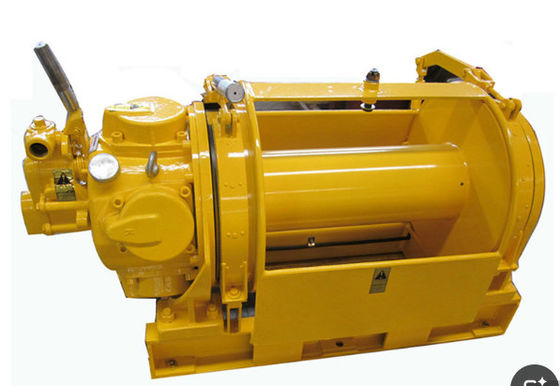

XJFH series air winch is a winch device which is powered by air motor and drives reel through gear reduction mechanism to achieve heavy traction and lifting. It has the advantages of compact structure, convenient operation, safe and reliable work, simple maintenance, smooth running, stepless speed change and so on. As an explosion-proof traction, lifting power device, especially suitable for oil fields (including Marine), geological drilling, mining and explosive, flammable gas and other places.

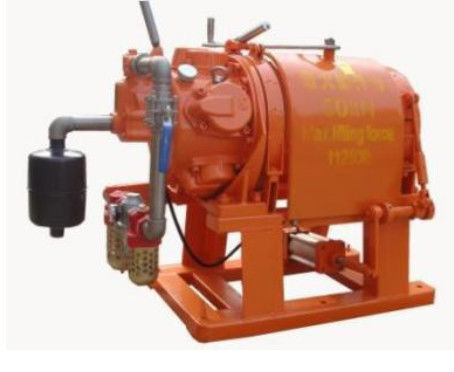

XJFH series pneumatic winch can be divided into ordinary high base, ordinary low base, flange seat, ladder buckle seat, straight wire buckle seat, oil seat, ear plate seat and other types according to the type of brake system can be divided into single brake (hand brake), double brake (hand brake + foot brake, hand brake + Automatic brake), three brake (hand brake + foot brake + Automatic brake). Users can choose according to different habits and use occasions.

The Guide Block Assembly is a critical component of a winch system, playing a vital role in ensuring smooth and efficient operation. It guides the wire rope or cable onto the drum in an orderly manner, preventing tangling, uneven winding, or damage to the rope. Proper alignment provided by the Guide Block Assembly reduces wear and tear on both the rope and the drum, extending the lifespan of the winch. Additionally, it enhances safety by minimizing the risk of rope slippage or sudden failures during heavy lifting or pulling operations. In demanding environments like oil drilling or marine operations, the Guide Block Assembly is essential for maintaining reliability, performance, and operational safety of the winch.

NUMBERING METHOUD

1.XJFH:The piston type Pneumatic Winches

2.First floor Max. lifting force:*10 kN

3.Max. lifting speed:m/min

4.The product change the type mark:The basic type has no code

5.The base form mark High base:ellipsis;low base:L ; flan base :F ; T type base:T M type base:M ; Y type base:Y ; E type base:E

6.brake type:single hand brake: ellipsis; double brake(hand brake ＋foot brake):S Double brake(hand brake＋auto brake):Z ；

Three brake(hand brake＋foot brake+auto brake): ZS；

SPARE PARTS LIST
