Pneumatic Winch Air Cylinder Series 100 X 150 FOR MODEL XJFH-5/35KFZP

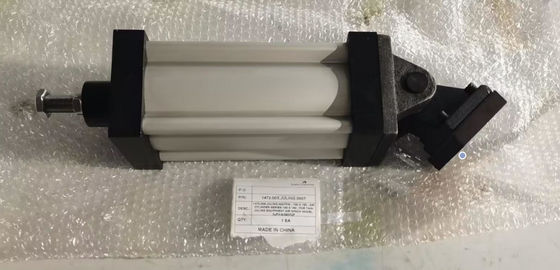

AIR CYLINDER SERIES 100 X 150 FOR AIR WINCH MODEL XJFH-5/35KFZP

PRODUCTION

XJFH series air winch is a winch device which is powered by air motor and drives reel through gear reduction mechanism to achieve heavy traction and lifting. It has the advantages of compact structure, convenient operation, safe and reliable work, simple maintenance, smooth running, stepless speed change and so on. As an explosion-proof traction, lifting power device, especially suitable for oil fields (including Marine), geological drilling, mining and explosive, flammable gas and other places.

The air cylinder is a critical component in winch systems, playing a vital role in ensuring efficient and reliable operation. It functions as part of the braking or clutch mechanism, utilizing compressed air to generate the necessary force for controlling the winch drum. This allows for precise load management, smooth engagement, and secure holding of heavy loads. The air cylinder's performance directly impacts the safety and stability of the winch, especially in demanding environments like marine, construction, or industrial settings. Regular maintenance of the air cylinder is essential to prevent failures, ensuring consistent pressure, leak-free operation, and optimal responsiveness, which are crucial for the overall functionality and safety of the winch system.

NUMBERING METHOUD

1. XJFH:The piston type Pneumatic Winches

2. First floor Max. lifting force:*10 kN

3. Max. lifting speed:m/min

4. The product change the type mark:The basic type has no code

5. The base form mark High base:ellipsis;low base:L ; flan base :F ; T type base:T M type base:M ; Y type base:Y ; E type base:E

6. brake type:single hand brake: ellipsis; double brake(hand brake ＋foot brake):S Double brake(hand brake＋auto brake):Z ；

Three brake(hand brake＋foot brake+auto brake): ZS；

SPARE PARTS LIST
