Industrial Pneumatic Air Winch Spare Parts XJFH-3/35-1000

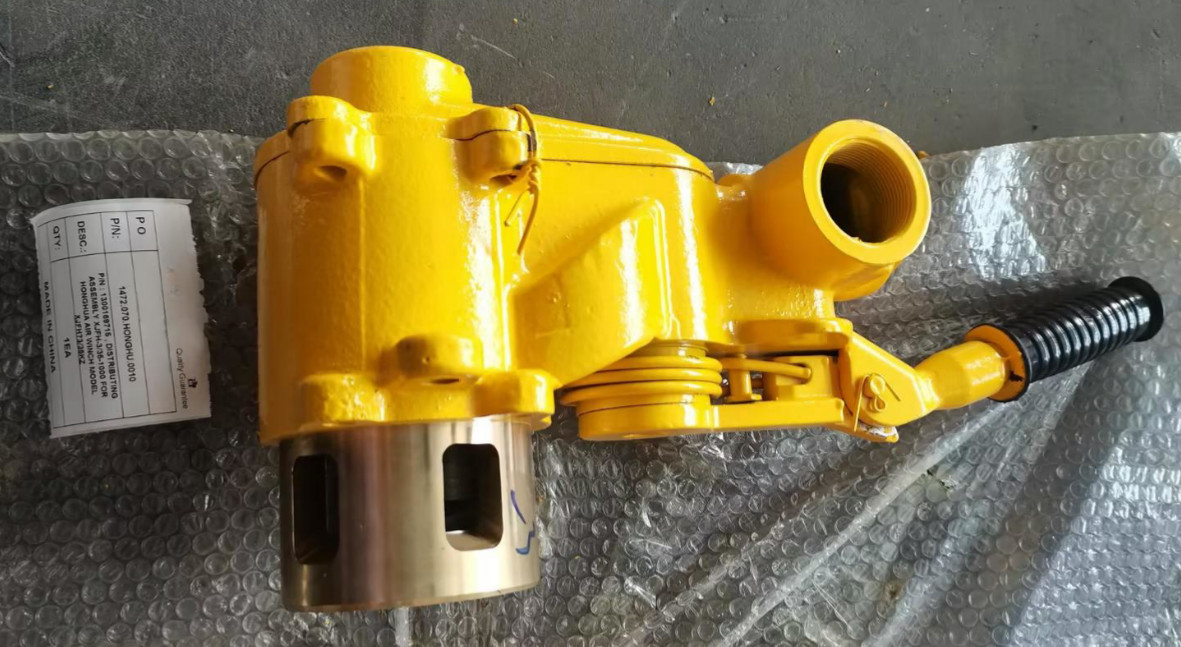

DISTRIBUTING ASSEMBLY XJFH-3/35-1000 FOR XJFH AIR WINCH

PRODUCTION

The XJFH series air winch is a robust traction and lifting device powered by compressed air, utilizing an air motor to drive its drum through a precision-engineered gear reduction system. Characterized by its compact structural design, this equipment integrates operational convenience with industrial-grade reliability, making it ideal for heavy-duty applications. Its air motor configuration inherently eliminates risks of electric sparks, ensuring compliance with explosion-proof requirements in hazardous environments. Key operational advantages include smooth torque delivery, maintenance-friendly components, and stepless speed regulation that allows operators to precisely adjust pulling speeds from zero to maximum without gear shifting.

The winch excels in critical scenarios such as offshore oilfield operations, geological drilling sites, mining facilities, and other locations with explosive atmospheres or flammable gas concentrations. Its sealed mechanical system prevents dust ingress while resisting corrosion in marine environments. Safety features incorporate automatic load-holding brakes and overload protection mechanisms to prevent equipment damage. With modular components designed for rapid field servicing, the XJFH series minimizes downtime while maintaining high traction efficiency across its 0.5-50kN capacity range. This combination of adaptive performance and intrinsic safety certification (ATEX/IECEx compliant) positions it as a preferred solution for material handling in energy, marine, and resource extraction industries where conventional electric machinery presents operational risks.

NUMBERING METHOUD

1. XJFH:The piston type Pneumatic Winches

2. First floor Max. lifting force:*10 kN

3. Max. lifting speed:m/min

4. The product change the type mark:The basic type has no code

5. The base form mark High base:ellipsis;low base:L ; flan base :F ; T type base:T M type base:M ; Y type base:Y ; E type base:E

6. brake type:single hand brake: ellipsis; double brake(hand brake ＋foot brake):S Double brake(hand brake＋auto brake):Z ；

Three brake(hand brake＋foot brake+auto brake): ZS；

SPARE PARTS LIST
