1ton Rated Capacity Distributing Assembly For Air Winch 5T MODEL XJFH-5/35KFZP

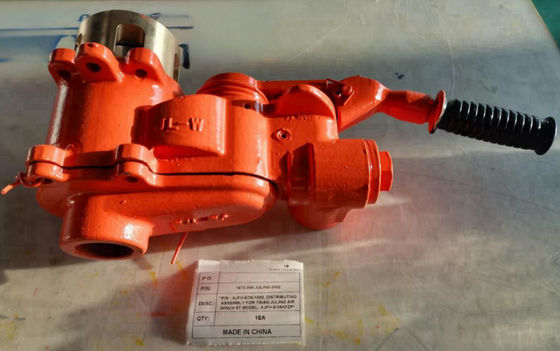

XJFH-5/35-1000, DISTRIBUTING ASSEMBLY FOR  AIR WINCH 5T MODEL: XJFH-5/35KFZP

PRODUCTION

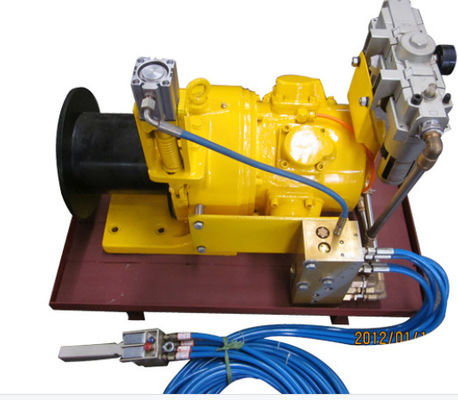

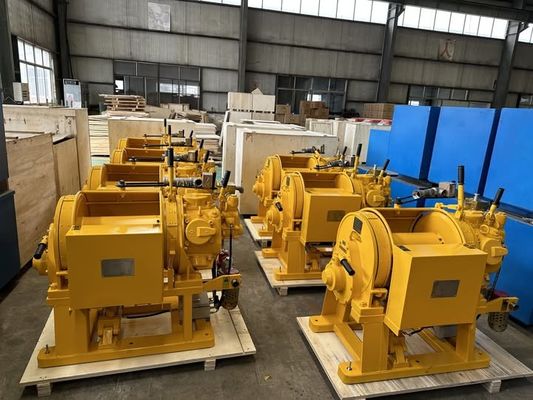

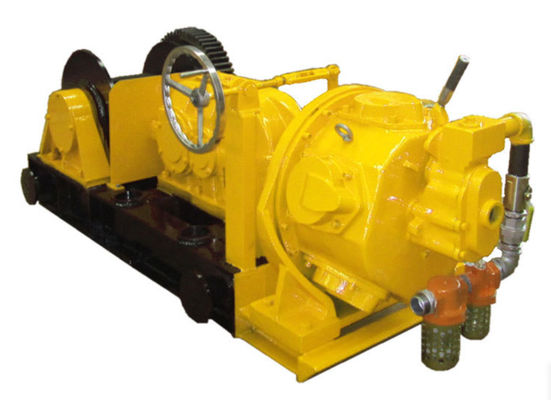

The XJFH series air winch is a robust and versatile winch system powered by an air motor, which drives the reel through a gear reduction mechanism to perform heavy-duty traction and lifting tasks. Known for its compact design, ease of operation, and reliable performance, this winch is widely used in demanding environments such as oil fields (including offshore platforms), geological drilling, mining, and areas with explosive or flammable gases. Its smooth operation, stepless speed control, and low maintenance requirements make it a preferred choice for industries requiring safe and efficient lifting solutions.

The XJFH series is available in various configurations, including high base, low base, flange seat, ladder buckle seat, straight wire buckle seat, oil seat, and ear plate seat models. It also offers multiple braking options, such as single brake (hand brake), double brake (hand brake + foot brake or hand brake + automatic brake), and triple brake (hand brake + foot brake + automatic brake), allowing users to select the most suitable system based on their operational needs and preferences. Additionally, the winch can be customized with optional accessories like pressure wire ropes, hooks, shackles, drop chains, and gas treatment triads to enhance functionality.

The winch supports multiple operation modes, including local control, remote control, or a combination of both, ensuring flexibility in various working conditions. It can also be equipped with advanced safety features such as automatic braking, automatic rope arrangement, emergency stop protection, overload protection, and emergency release devices, further enhancing its reliability and safety in critical applications.

NUMBERING METHOUD

1. XJFH: The piston type Pneumatic Winches

2. First floor Max. lifting force:*10 kN

3. Max. lifting speed:m/min

4. The product change the type mark:The basic type has no code

5. The base form mark High base:ellipsis;low base:L ; flan base :F ; T type base:T M type base:M ; Y type base:Y ; E type base:E

6. brake type:single hand brake: ellipsis; double brake(hand brake ＋foot brake):S Double brake(hand brake＋auto brake):Z ；

Three brake(hand brake＋foot brake+auto brake): ZS；

SPARE PARTS
