Pneumatic Air Winch Distributing Assembly For Oil Fields
| Place of Origin | China |
|---|---|
| Brand Name | Juling |
| Certification | API,ISO |
| Model Number | As Specified in the data |
| Minimum Order Quantity | 1 |
| Price | negotiable |
| Packaging Details | Wooden Box |
| Delivery Time | Stock |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Series | XJFH | Max Lifting Height | 50-100 M |
|---|---|---|---|
| Power Source | Compressed Air | Model | XJFH Series |
| Lifting Speed | 10-30 M/min | Air Consumption | 10-30 M³/min |
| Wire Rope Diameter | 8-16 Mm | Type | Air-powered |
| Capacity | 1-10 Tons | Drum Capacity | 100-500 M |
| Air Pressure | 0.6-0.8 MPa | Weight | 100-500 Kg |
| Control Type | Pneumatic | Certifications | CE, ISO |
| Usage | Lifting In Oilfield | Safety Features | Emergency Stop Button, Overload Protection |
| Color | Yellow Orange Or Other Colors | Material | Steel |
| Warranty | 12 Months | ||
| Highlight | Air Winch Distributing Assembly,Pneumatic Winch Distributing Assembly,Oil Fields Air Winch Assembly |
||
Product Description

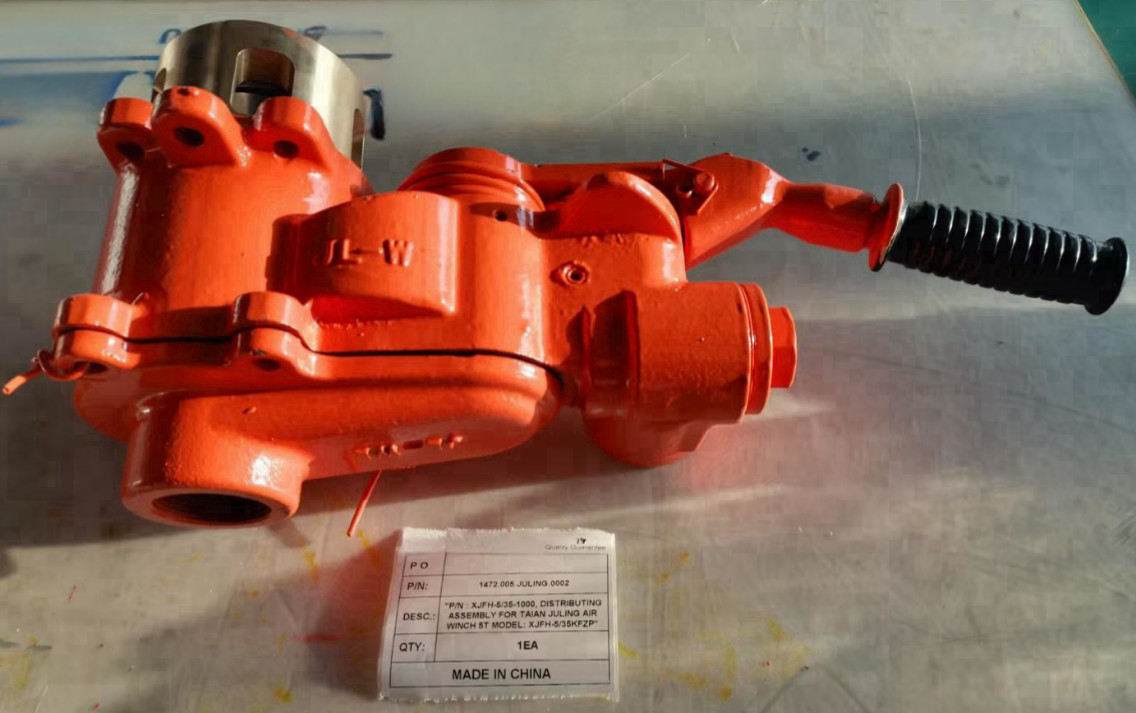

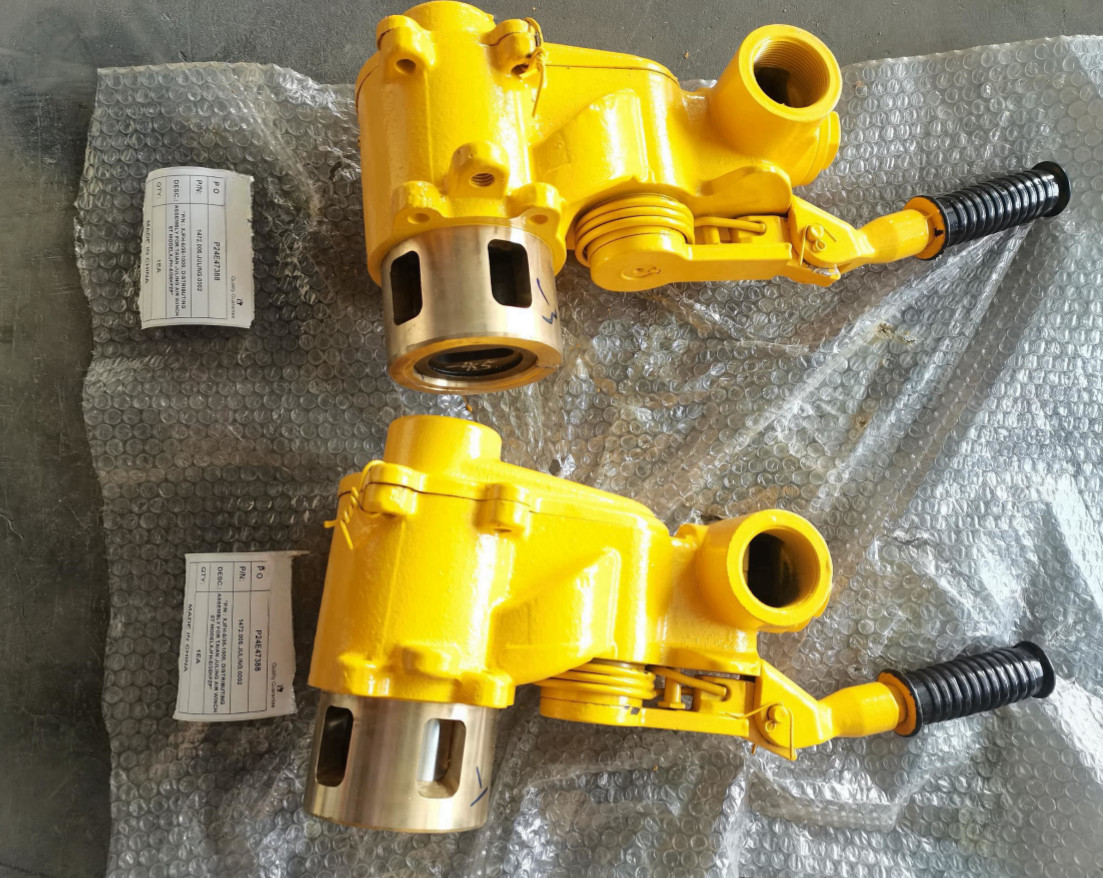

XJFH-5/35-1000, DISTRIBUTING ASSEMBLY FOR AIR WINCH 5T MODEL: XJFH-5/35KFZP
PRODUCTION
XJFH series air winch is a winch device which is powered by air motor and drives reel through gear reduction mechanism to achieve heavy traction and lifting. It has the advantages of compact structure, convenient operation, safe and reliable work, simple maintenance, smooth running, stepless speed change and so on. As an explosion-proof traction, lifting power device, especially suitable for oil fields (including Marine), geological drilling, mining and explosive, flammable gas and other places.
XJFH series pneumatic winch can be divided into ordinary high base, ordinary low base, flange seat, ladder buckle seat, straight wire buckle seat, oil seat, ear plate seat and other types according to the type of brake system can be divided into single brake (hand brake), double brake (hand brake + foot brake, hand brake + Automatic brake), three brake (hand brake + foot brake + Automatic brake). Users can choose according to different habits and use occasions.
In addition, XJFH series pneumatic winch also has pressure wire rope, hook, shackle, drop chain, gas treatment triad and other optional configuration, users can choose according to their own needs and selected winch.
Operation mode classification: local control, remote control,local contro＋remote control;
The winch can be equipped with safety protection functions: automatic braking, automatic rope arrangement device, emergency stop protection device, overload protection device, emergency release device, etc.
NUMBERING METHOUD
1. XJFH:The piston type Pneumatic Winches
2. First floor Max. lifting force:*10 kN
3. Max. lifting speed:m/min
4. The product change the type mark:The basic type has no code
5. The base form mark High base:ellipsis;low base:L ; flan base :F ; T type base:T M type base:M ; Y type base:Y ; E type base:E
6. brake type:single hand brake: ellipsis; double brake(hand brake ＋foot brake):S Double brake(hand brake＋auto brake):Z ；
Three brake(hand brake＋foot brake+auto brake): ZS；
PRODUCTS DETAILS
| P/N | FULL DESCRIPTION |
| 1472.005.JULING.0002 | P/N : XJFH-5/35-1000, DISTRIBUTING ASSEMBLY FOR TAIAN JULING AIR WINCH 5T MODEL: XJFH-5/35KFZP |
| 1472.005.JULING.0042 | P/N : BSLM-03 3/8, NOISE SUPPRESSOR FOR TAIAN JULING AIR HOIST XJFH-5/35KFZP |
| 1472.005.JULING.0045 | P/N : M12*1.25-1/4, PIPE CONNECTION 3 FOR TAIAN JULING AIR HOIST XJFH-5/35KFZP |
