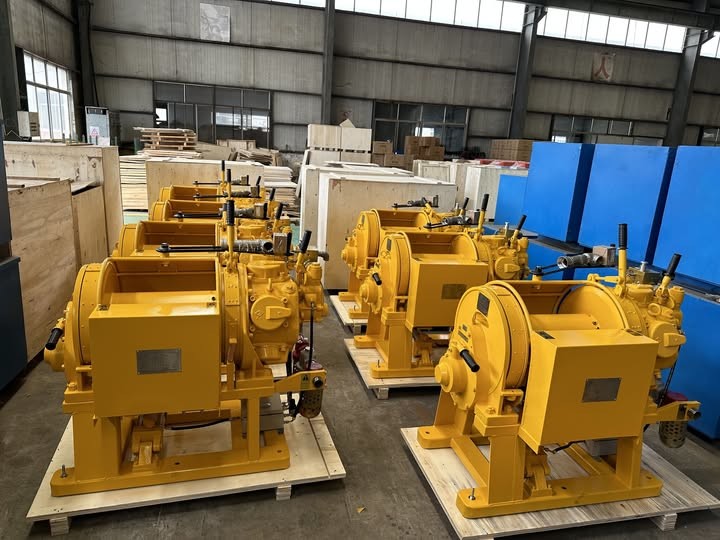

Double Brake Pneumatic Air Winch XJFH-10/20LZ Explosion Proof 30kw

Pneumatic Winch XJFH-10/20LZ Double Brake

PRODUCTION

The XJFH series air winch is a robust device powered by an air motor, utilizing a gear reduction mechanism to drive the reel, enabling heavy-duty traction and lifting. Known for its compact design, ease of operation, and reliable performance, this winch is ideal for demanding environments such as oil fields, geological drilling, and mining. It is particularly suited for explosive or flammable gas areas due to its explosion-proof capabilities. The winch offers smooth operation, stepless speed control, and low maintenance requirements. Available in various configurations including high base, low base, flange seat, and more, it also features multiple braking systems like single, double, and triple brakes, catering to diverse user preferences and operational needs.

In addition, XJFH series pneumatic winch also has pressure wire rope, hook, shackle, drop chain, gas treatment triad and other optional configuration, users can choose according to their own needs and selected winch.

Operation mode classification: local control, remote control,local contro＋remote control;

The winch can be equipped with safety protection functions: automatic braking, automatic rope arrangement device, emergency stop protection device, overload protection device, emergency release device, etc.

NUMBERING METHOUD

1. XJFH:The piston type Pneumatic Winches

2. First floor Max. lifting force:*10 kN

3. Max. lifting speed:m/min

4. The product change the type mark:The basic type has no code

5. The base form mark High base:ellipsis;low base:L ; flan base :F ; T type base:T M type base:M ; Y type base:Y ; E type base:E

6. brake type:single hand brake: ellipsis; double brake(hand brake ＋foot brake):S Double brake(hand brake＋auto brake):Z ；

Three brake(hand brake＋foot brake+auto brake): ZS；

PARAMETERS
