Man Ride Pneumatic Winch Lifting Equipment 5KN 2.6kW

Man Ride  Nneumatic  Winch ZJQH-5×24B  Lifting  Equipment

INTRODUCTION

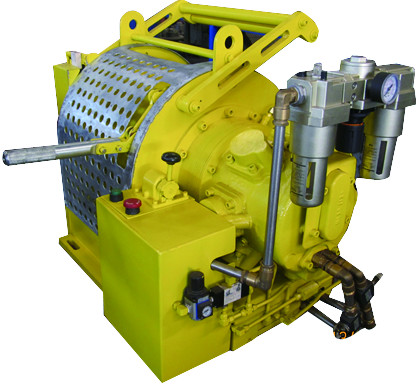

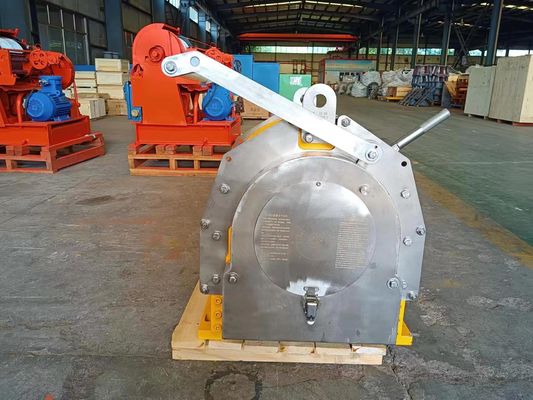

The Juling Manrider Air Winch is a highly efficient, pneumatically powered lifting device designed for both personnel and material handling in demanding environments. Driven by a compressed air motor, it employs an advanced planetary gear reduction system to deliver reliable torque to its drum, enabling smooth hoisting and pulling operations. This dual-purpose equipment is specifically engineered for onshore and offshore petroleum applications, offering exceptional safety margins tailored to its use cases. For personnel transfer, it boasts an 8:1 safety factor, while material handling operations benefit from a 5:1 safety ratio, ensuring consistent performance across diverse load conditions. A key feature of the system is its optimized 18:1 drum-to-cable diameter ratio, which significantly reduces wire rope wear by minimizing bending stress and surface abrasion. The winch's pneumatic drive mechanism provides a spark-resistant solution, making it ideal for hazardous environments where ignition risks must be eliminated. Its compact planetary gear design delivers high torque output while maintaining a small footprint, allowing for easy integration into confined workspaces commonly found on oil rigs and marine platforms. Combining ergonomic design with rigorous safety features, this specialized winch meets the stringent requirements of vertical transportation in the energy sector, offering a reliable and safe solution for critical lifting operations.

MAIN PARAMETERS
