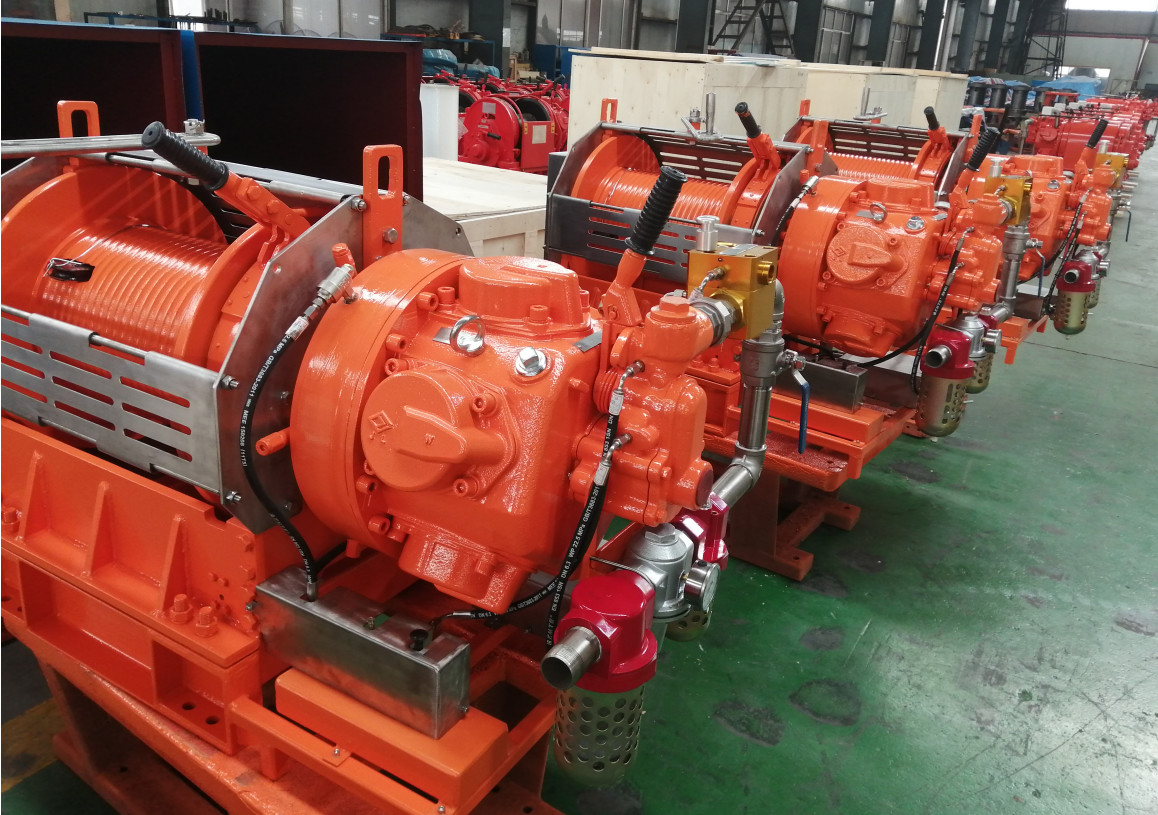

Oilfield Pneumatic Manriding Winch 20m/min ZJQH-15×20B for Personnel Lifting
| Place of Origin | China |
|---|---|
| Brand Name | Juling |
| Certification | API,ISO |
| Model Number | As Specified in the data |
| Minimum Order Quantity | 1 |
| Price | negotiable |
| Packaging Details | Wooden Box |
| Delivery Time | Stock |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Oilfield | Usage | Manriding And Material Lifting |
|---|---|---|---|
| Max. Lifting Capacity | 800kg | Warranty | 1 Year |
| Certifications | CE, ISO | Usage | Lifting In Oilfield |
| Safety Features | Emergency Stop Button, Overload Protection | Color | Yellow Orange Or Other Colors |
| Material | Steel | Warranty | 12 Months |
| Highlight | Oilfield Manriding Winch,20m/min Manriding Winch,Personnel Lifting Manriding Winch |
||
Product Description
Manned Pneumatic Winch ZJQH-15×20B Lifting Personnel
INTRODUCTION
This pneumatic winch breaks the function of the traditional winch, winch has a number of safety features: emergency stop, overload, limit, etc., suitable for a variety of applications. A real multi-purpose machine, favored by users.
MAIN PARAMETERS
| Rated lifting force | Payload 30kN, manned 15kN | ||
| Lifting speed | ~20m/min; | ||
| Steel rope diameter(mm) | φ19mm | ||
| Wire capacity (D=10mm) | 130m | ||
| Pneumatic Motor | Rated power(kW) | 16kW | |
| Pressure of compress air(MPa) | 0.6-0.8MPa | ||
| ax. air consumption | ≤18.3m3/min | ||
| Break type | Built-in entire disc CAAB + Band hand break | ||
| weight(kg) | 800kg | ||
| Security measures | Ergency stop device； Barely able to brake. Mergency Lowering； Over load protection device； Limit protection Switches |
||
