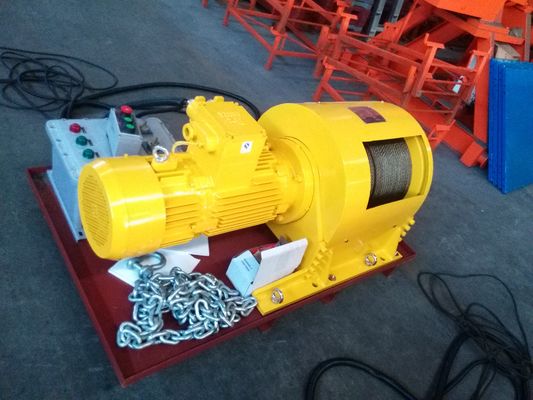

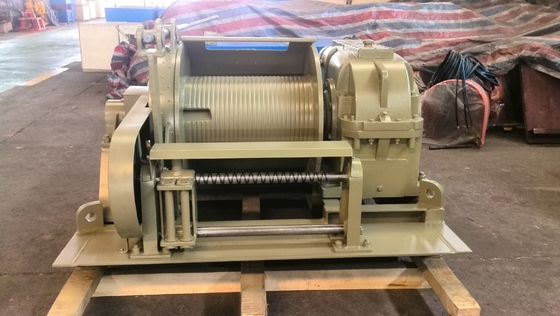

Electric Winch with 55 KW-6 Electric Engine and 25 Lbs Capacity Performance
| Brand Name | Juling |
|---|---|
| Certification | CE,ABS,API |
| Model Number | DJFY |
| Minimum Order Quantity | 1 |
| Price | Negotiable |
| Delivery Time | 20 |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Weight | 25 Lbs | Power Source | Electric |
|---|---|---|---|
| Double Limit Switch | Included | Gear Reduction Ratio | 187.2:1 |
| Electrical Band | Siemens | Clutch | Sliding Ring Gear |
| Hydraulic Brake | Included | Slng Type | Steel Wire Rope |
Product Description
Product Description:
An electric winch is an essential tool for heavy traction and lifting tasks, designed to provide reliable and efficient performance in various industrial and commercial applications. This electric winch product offers a range of features to ensure safe and effective operation, making it ideal for lifting and pulling heavy loads with ease.
The electric winch comes equipped with a Lifting Limit Switch, which helps prevent overloading during lifting operations. This feature ensures that the winch stops automatically when the set weight limit is reached, enhancing safety and preventing damage to the equipment or the load being lifted.
With an Automatic Load-Holding braking system, this electric winch provides added security during lifting and lowering operations. The braking system engages automatically to hold the load in place, even if power is lost, offering reliable control and stability for heavy lifting tasks.
Applications:
Juling Electric Winch, model DJFY, is a versatile product designed for various lifting and pulling applications. With its origins in China, this electric winch is certified with CE, ABS, and API standards, ensuring high quality and safety in its operation. The minimum order quantity for this product is only 1, making it accessible for both small and large-scale projects. The price is negotiable, and the delivery time is quick at 20 days, providing convenience to customers.
| TECHNICAL PARAMETER | |||||
| Item | Specification parameter | ||||
| Model | DJFY-5*16 | DJFY-20*8 | DJFY-30*20 | DJFY-50*19/10 | DJFY-60*2 |
| Ambient temperature | -25℃∽40℃ | ||||
| Specification of lubricating oil | GL-5,80w-90. Freezing point -60 | ||||
| Max Force lb | 1125 | 4500 | 6750 | 11250 | 13500 |
| Max speed ft/s | 0.88 | 0.44 | 1.1 | 1.1/0.55 | 0.11 |
| Rated power H.P | 2 | 5.4 | 14.7 | 24.8/14.7 | 5.4 |
| Rope capacity ft | 130 | 260 | 390 | 390 | 165 |
| Wire rope diameter in | 0.24 | 0.55 | 0.63 | 0.75 | 0.787 |
| Overall dimension: | 27.6*11*13 | 49*23.5*24 | 46*30*24 | 57.5*32*26.6 | 53*32*26 |
| L*W*H(in) | |||||
Packing and Shipping:
Product Packaging for Electric Winch:
- The electric winch will be securely packaged in a durable cardboard box to prevent any damage during transportation.
- Inside the box, the winch will be wrapped in protective foam to cushion it further.
Shipping Information:
- The electric winch will be shipped via a reputable courier service to ensure safe and timely delivery.
- Customers will receive a tracking number to monitor the shipment progress and estimated delivery date.
FAQ:
Q: What is the brand of this Electric Winch?
A: The brand name is Juling.
Q: What is the model number of this Electric Winch?
A: The model number is DJFY.
Q: Where is this Electric Winch manufactured?
A: This Electric Winch is manufactured in China.
Q: What certifications does this Electric Winch have?
A: This Electric Winch is certified with CE, ABS, and API.
Q: What are the payment terms for purchasing this Electric Winch?
A: The payment terms for purchasing this Electric Winch are T/T.
