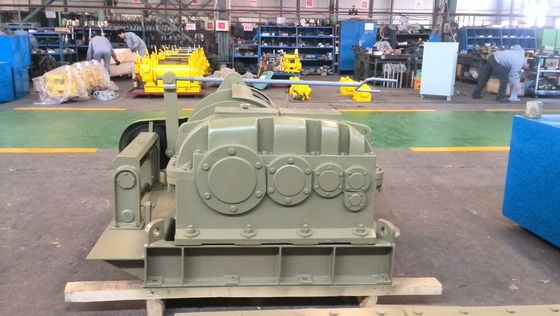

Electric Heavy Traction and Lifting with Steel Wire Rope for Heavy-Duty Lifting in Heavy-Duty Applications
| Brand Name | Juling |
|---|---|
| Certification | CE,ABS,API |
| Model Number | DJFY |
| Minimum Order Quantity | 1 |
| Price | Negotiable |
| Delivery Time | 20 |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Working Speed | As Your Needs | Power Source | Electric |
|---|---|---|---|
| Clutch | Sliding Ring Gear | Lifting Limit Switch | Included |
| Weight | 25 Lbs | Electrical Band | Siemens |
| Double Limit Switch | Included | Hydraulic Brake | Included |
Product Description
Product Description:
The Electric Winch by Juling Winch is a versatile and powerful tool designed to meet your pulling and lifting needs. This electric winch is equipped with a double limit switch for added safety and precision during operation. The included double limit switch ensures that the winch stops automatically once the set limits are reached, preventing any overloading or accidents.
Powered by a motor, this Electric Winch offers customizable working speeds to suit your specific requirements. Whether you need a fast pull or a slower, more controlled lift, this winch can be adjusted to meet your needs. The flexibility in working speed makes it a practical choice for a wide range of applications.
With an electric power source, this winch is convenient to use in various settings without the need for manual labor. The electric operation ensures consistent performance and reliable power delivery, making your tasks easier and more efficient.
Applications:
Electric winches are versatile tools that find applications in various industries and scenarios due to their efficiency and ease of use. The Juling DJFY electric winch, manufactured in China, is a reliable product that is certified with CE, ABS, and API standards, ensuring its quality and safety.
| TECHNICAL PARAMETER | |||||
| Item | Specification parameter | ||||
| Model | DJFY-5*16 | DJFY-20*8 | DJFY-30*20 | DJFY-50*19/10 | DJFY-60*2 |
| Ambient temperature | -25℃∽40℃ | ||||
| Specification of lubricating oil | GL-5,80w-90. Freezing point -60 | ||||
| Max Force lb | 1125 | 4500 | 6750 | 11250 | 13500 |
| Max speed ft/s | 0.88 | 0.44 | 1.1 | 1.1/0.55 | 0.11 |
| Rated power H.P | 2 | 5.4 | 14.7 | 24.8/14.7 | 5.4 |
| Rope capacity ft | 130 | 260 | 390 | 390 | 165 |
| Wire rope diameter in | 0.24 | 0.55 | 0.63 | 0.75 | 0.787 |
| Overall dimension: | 27.6*11*13 | 49*23.5*24 | 46*30*24 | 57.5*32*26.6 | 53*32*26 |
| L*W*H(in) | |||||
Packing and Shipping:
Product Packaging:
The Electric Winch is carefully packaged in a sturdy cardboard box to ensure its safety during transit. The winch is securely placed inside the box with appropriate padding to prevent any damage. The packaging includes a user manual, necessary installation accessories, and warranty information.
Shipping:
Once your order is confirmed, the Electric Winch will be packed and prepared for shipping within 1-2 business days. We partner with reliable shipping carriers to deliver your winch safely and on time to your designated address. You will receive a tracking number to monitor the delivery status of your package.
FAQ:
Q: What is the brand of this electric winch?
A: The brand name of this electric winch is Juling.
Q: What is the model number of this electric winch?
A: The model number of this electric winch is DJFY.
Q: Where is this electric winch manufactured?
A: This electric winch is made in China.
Q: What certifications does this electric winch have?
A: This electric winch is certified with CE, ABS, and API.
Q: What are the payment terms for purchasing this electric winch?
A: The payment terms for purchasing this electric winch are T/T (Telegraphic Transfer).
