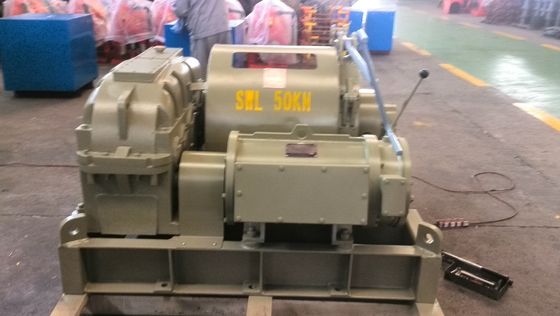

Adjustable Working Speed Electric Winch with Hydraulic Brake System and 55 KW-6 Electric Engine

  • Adjustable Working Speed Electric Winch with Hydraulic Brake System and 55 KW-6 Electric Engine
Brand Name Juling
Certification CE,ABS,API
Model Number DJFY
Minimum Order Quantity 1
Price Negotiable
Delivery Time 20
Payment Terms T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Gear Reduction Ratio 187.2:1 Motor Type Permanent Magnet
Lifting Limit Switch Included Slng Type Steel Wire Rope
Clutch Sliding Ring Gear Weight 25 Lbs
Braking System Automatic Load-Holding Brake Hydraulic Brake System
Leave a Message
Product Description

Product Description:

Powered by a high-quality Siemens electrical band, this electric winch delivers consistent performance and durability. The motorized operation of this winch ensures smooth and efficient lifting, making it ideal for demanding work environments. The inclusion of a sliding ring gear clutch further enhances the convenience of operation, allowing for easy engagement and disengagement when needed.

One of the standout features of this Electric Winch is the lifting limit switch, which is included to provide added safety and control during operation. This essential component helps prevent overloading and ensures that the winch stops automatically once the preset lifting limit is reached. This feature adds an extra layer of protection and peace of mind, making the winch suitable for a variety of lifting tasks.

Applications:

When it comes to heavy-duty lifting and pulling tasks, the Juling Electric Winch (Model: DJFY) is the ideal solution. This high-quality winch, originating from China, is designed for various applications across different industries.

The Electric Winch by Juling is suitable for a wide range of product application occasions and scenarios due to its versatile features and capabilities. It is commonly used in construction sites, off-road adventures, marine operations, and industrial settings where heavy loads need to be lifted or pulled. The winch's certification including CE, ABS, and API ensures its quality and adherence to international standards.

With a minimum order quantity of 1 and negotiable pricing, the Juling Electric Winch offers a cost-effective solution for both small-scale and large-scale operations. Its delivery time of 20 days and payment terms of T/T

TECHNICAL PARAMETER
Item Specification parameter
Model DJFY-5*16 DJFY-20*8 DJFY-30*20 DJFY-50*19/10 DJFY-60*2
Ambient temperature -25℃∽40℃
Specification of lubricating oil GL-5,80w-90. Freezing point -60
Max Force lb 1125 4500 6750 11250 13500
Max speed ft/s 0.88 0.44 1.1 1.1/0.55 0.11
Rated power H.P 2 5.4 14.7 24.8/14.7 5.4
Rope capacity ft 130 260 390 390 165
Wire rope diameter in 0.24 0.55 0.63 0.75 0.787
Overall dimension: 27.6*11*13 49*23.5*24 46*30*24 57.5*32*26.6 53*32*26

L*W*H(in)

Packing and Shipping:

Product: Electric Winch

Description: A powerful electric winch designed for heavy-duty lifting and pulling tasks.

Packaging: The electric winch is securely packed in a durable cardboard box with foam padding to prevent damage during transit.

Shipping: We offer fast and reliable shipping services to ensure your electric winch reaches you safely and promptly.

FAQ:

Q: What is the brand name of this electric winch?

A: The brand name is Juling.

Q: What is the model number of this electric winch?

A: The model number is DJFY.

Q: Where is this electric winch manufactured?

A: This electric winch is manufactured in China.

Q: What certifications does this electric winch have?

A: This electric winch is certified with CE, ABS, and API.

Q: What are the payment terms for purchasing this electric winch?

A: The payment terms are T/T (Telegraphic Transfer).
