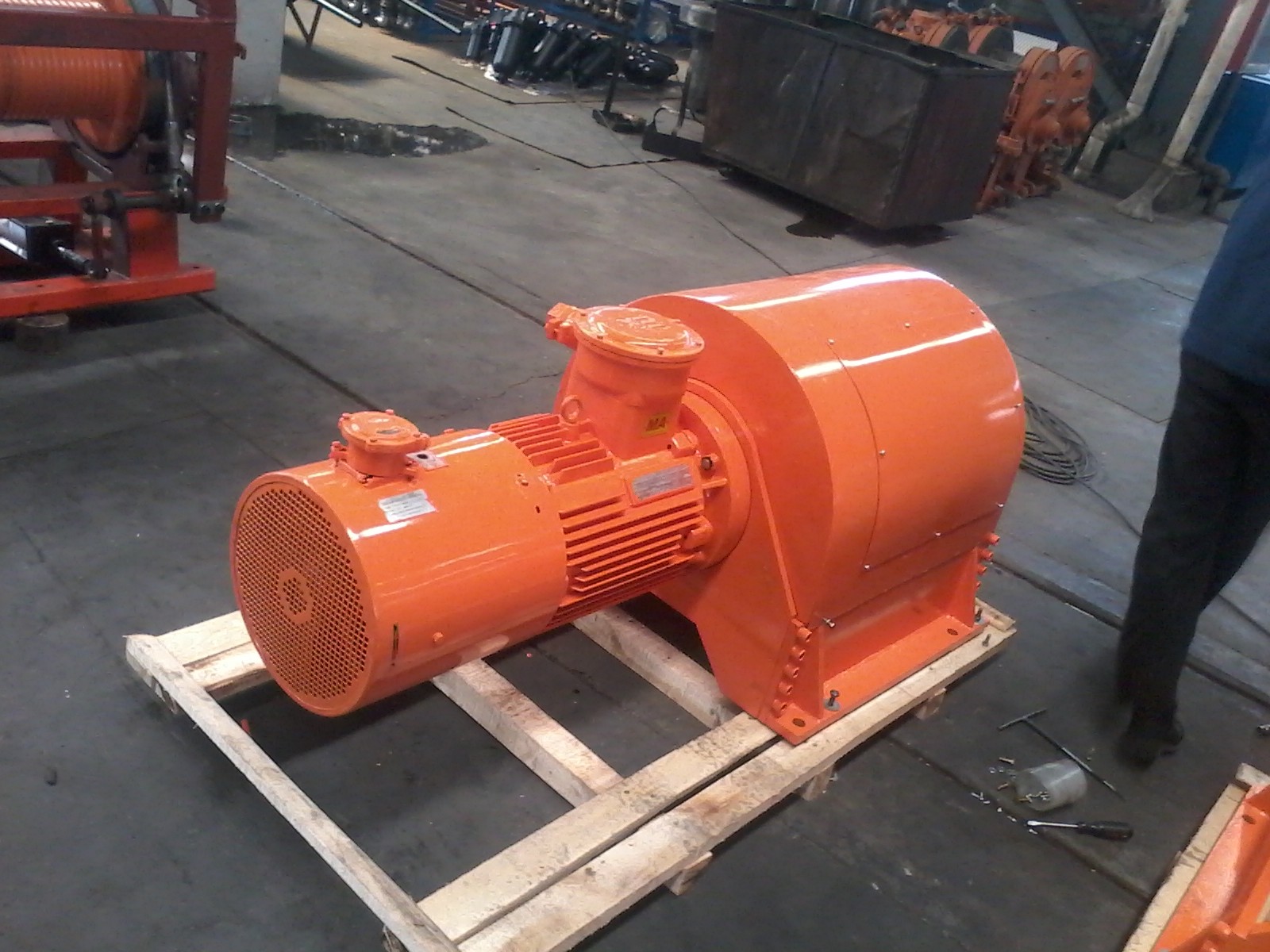

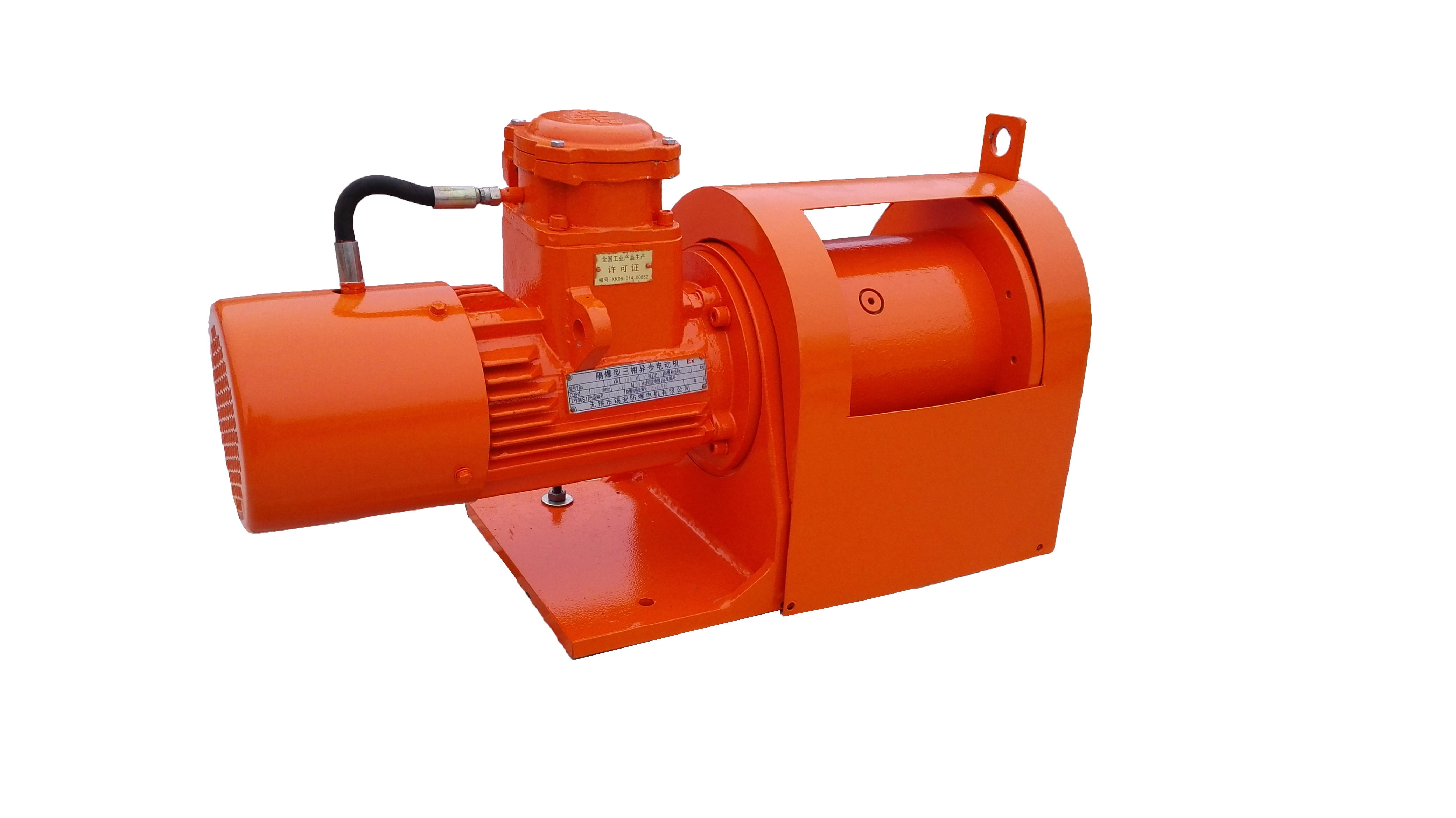

JQH Series Air Winch 0.5T-10T Capacity with Remote Control
| Brand Name | Juling |
|---|---|
| Certification | ISO,CE,API |
| Model Number | JQH Air Winch |
| Minimum Order Quantity | 1 |
| Delivery Time | 20 |
| Payment Terms | TT |
| Supply Ability | 10/Per Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Drum Capacity | 100 M To 500 M | Material | Steel |
|---|---|---|---|
| Certifications | CE, ISO | Rated Load | 0.5 Ton - 10 Ton |
| Capacity | 0.5T-10T | Rope Diameter | 8 Mm - 20 Mm |
| Lifting Speed | 10 M/min - 40 M/min | Air Pressure | 0.6 MPa - 0.8 MPa |
| Highlight | JQH Series air winch with remote control,0.5T-10T capacity air winch,industrial air winch remote operation |
||
Product Description
Air Winch With 20 Mm Rope Diameter 40 M/min Lifting Speed
Heavy Duty Applications and Operations
Product Specifications
| Attribute | Value |
|---|---|
| Drum Capacity | 100 M To 500 M |
| Material | Steel |
| Certifications | CE, ISO |
| Rated Load | 0.5 Ton - 10 Ton |
| Capacity | 0.5T-10T |
| Rope Diameter | 8 Mm - 20 Mm |
| Lifting Speed | 10 M/min - 40 M/min |
| Air Pressure | 0.6 MPa - 0.8 MPa |
Product Overview
The JQH Series Air Winch features a remote control system for convenient and precise operation, allowing users to control the winch from a safe distance. This enhances safety by minimizing accident risks during lifting operations.
Constructed with high-quality steel components, this winch ensures durability and reliability in demanding conditions. The automatic disc brake mechanism provides reliable braking performance to prevent accidental slips or falls.
Designed to be explosion-proof, the JQH Series is suitable for hazardous environments. Its compact and lightweight design makes it ideal for space-limited applications while maintaining powerful lifting capabilities.
Key Features
- Product Name: JQH Series Air Winch
- Drum Capacity: 100 M To 500 M
- Material: Steel construction
- Rated Speed: 10-20 M/min
- Brake Type: Automatic Disc Brake
- Lifting Speed: 10 M/min - 40 M/min
- Safety and explosion-proof design
- Remote pneumatic control type
Technical Specifications
| Product Model | JQH-5×48(QB,QB ,D,Y) | JQH-10×24(QB,QB ,D,Y) |
|---|---|---|
| Rated intake pressure(MPa) | 0.8 | 0.8 |
| Maximum lifting force of the first layer(kN) | 5 | 10 |
| Maximum rope speed(m/min) | 48 | 24 |
| Motor power(kW) | 2.6 | 2.6 |
| Drum diameter(mm) | 180 | 200 |
| Drum length(mm) | 200 | 200 |
| Diameter of drum flange(mm) | 290 | 380 |
| Rope capacity in non-working state(m) | 60 | 60 |
| Diameter of steel wire rope(mm) | 8 | 11 |
| Air inlet size(mm) | 25 | 25 |
| Dimensions: Length × width × height (mm) | 680×350×465 | 690×390×570 |
| Net weight(kg) | 116 | 176 |
Applications
- Industrial Settings: Manufacturing plants, construction sites, and mining operations for heavy-duty lifting (0.5T to 10T capacity)
- Offshore and Marine: Durable steel construction with CE and ISO certification for harsh environments
- Construction Sites: Versatile tool with optional configurations including crimping steel wire rope and remote control
- Emergency Rescue: Fast response with rope speeds from 10 M/min to 40 M/min for critical situations
Packaging & Shipping
The JQH Series Air Winch is carefully packaged in protective materials within a sturdy cardboard box to prevent transit damage.
We provide reliable shipping services with tracking numbers for monitoring delivery status. Orders are processed promptly for efficient dispatch.
