Siemens Electric Manriding Winch with Automatic Brake - Juling DJFY Series
| Place of Origin | China |
|---|---|
| Brand Name | Juling |
| Certification | CE,ABS,API |
| Model Number | DJFY |
| Minimum Order Quantity | 1 |
| Price | Negotiable |
| Delivery Time | 20days |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Power Source | Electric | Braking System | Automatic Load-Holding |
|---|---|---|---|
| Electrical Band | Siemens | Motor Type | Permanent Magnet |
| Lifting Limit Switch | Included | Slng Type | Steel Wire Rope |
| Weight | 25 Lbs | Hydraulic Brake | Included |
| Highlight | Siemens electric manriding winch,automatic brake manriding winch,Juling DJFY series winch |
||
You can tick the products you need and communicate with us in the message board.
Product Description

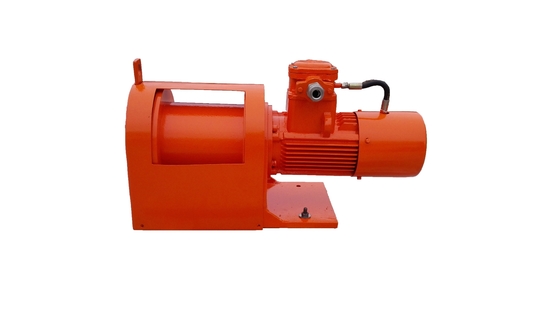

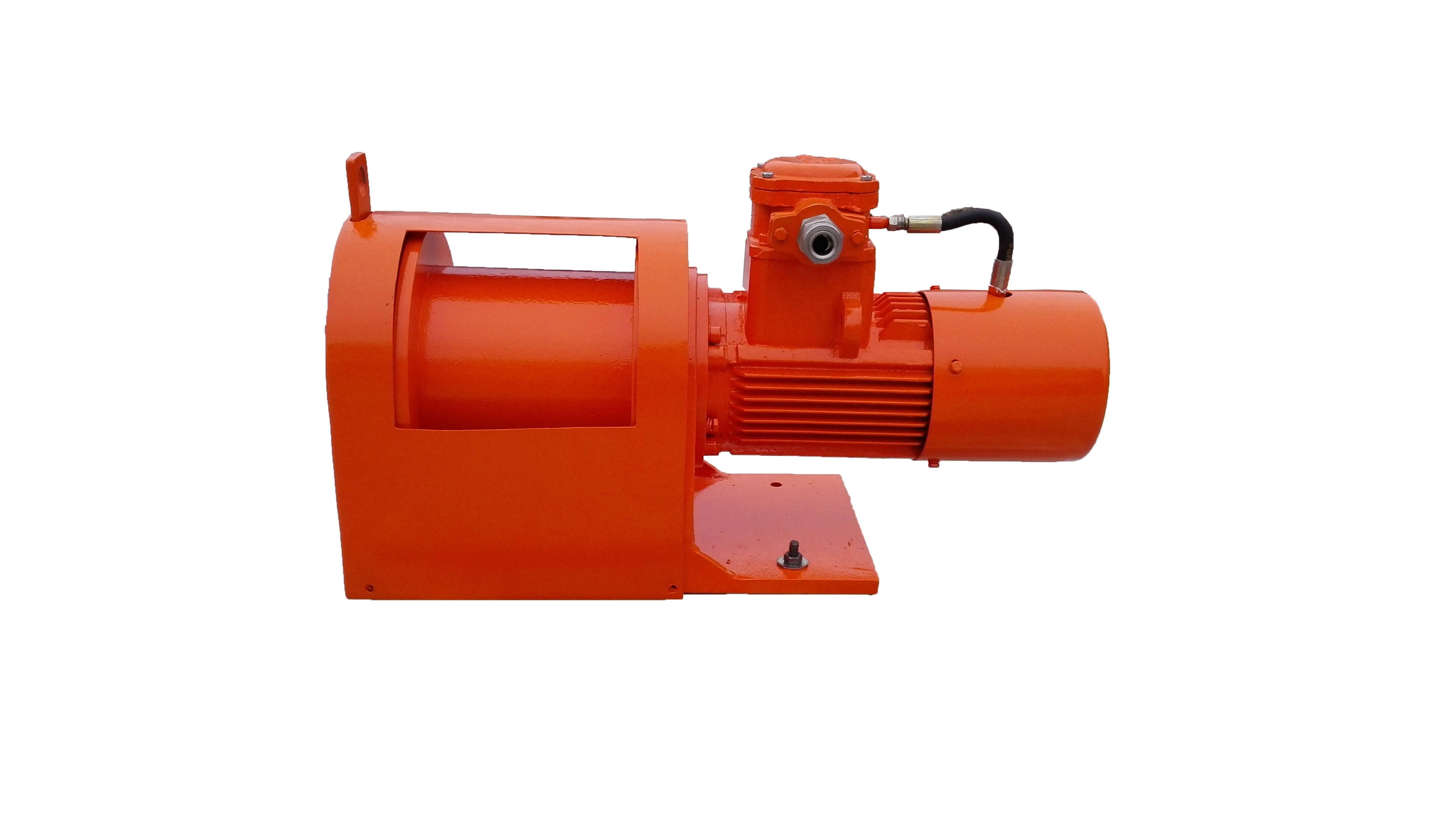

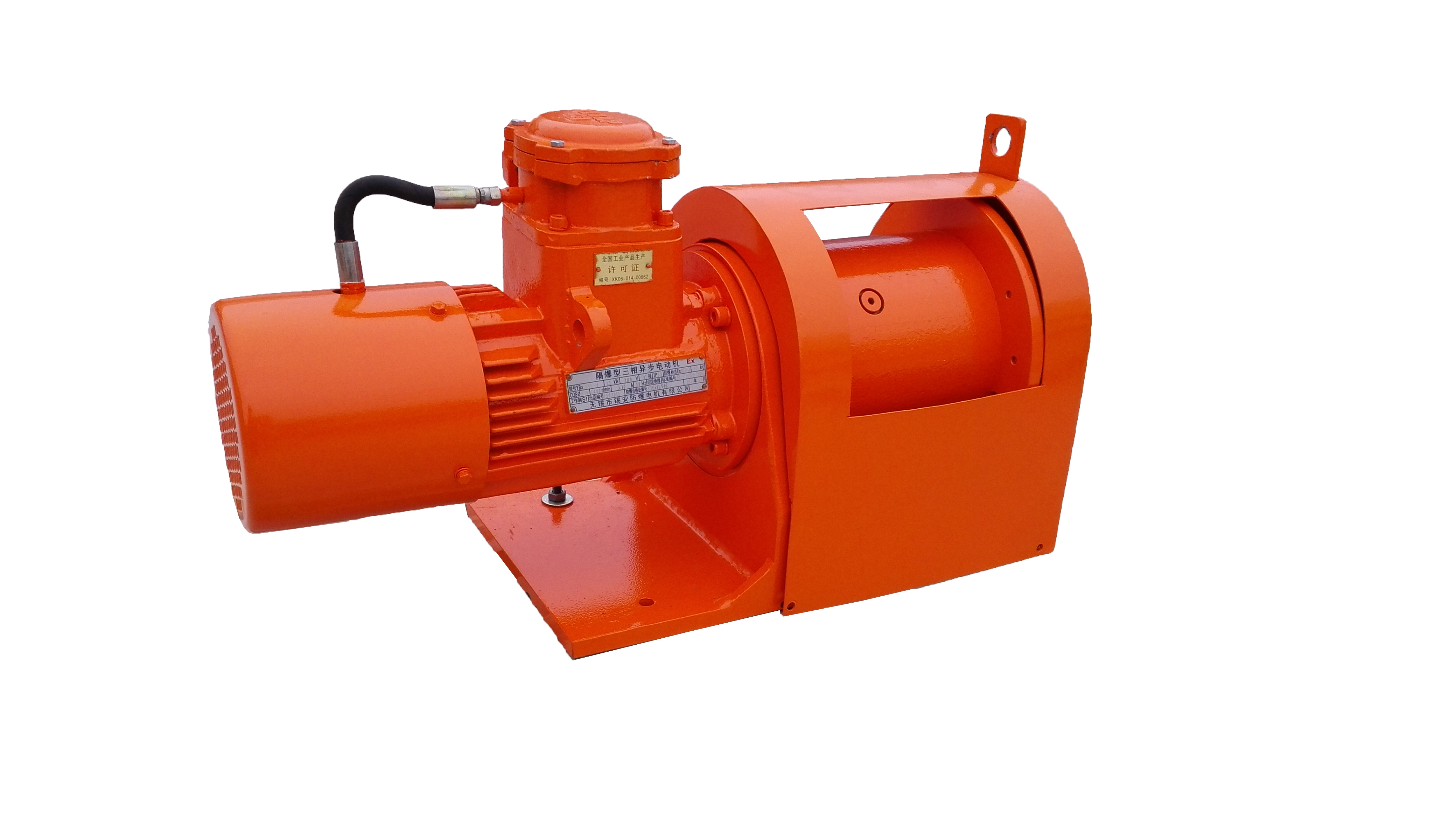

Siemens Electrical Series Adjustable Speed Juling Winch
Product Specifications
| Attribute | Value |
|---|---|
| Power Source | Electric |
| Braking System | Automatic Load-Holding |
| Electrical Brand | Siemens |
| Motor Type | Permanent Magnet |
| Lifting Limit Switch | Included |
| Sling Type | Steel Wire Rope |
| Weight | 25 Lbs |
| Hydraulic Brake | Included |
Product Overview
The Juling Electric Winch is a heavy-duty traction and hoisting solution with adjustable lift heights of 6, 9, 12, 18, 24, and 30 meters. Designed for construction, industrial, and off-road applications, this winch delivers reliable performance with precise speed control for steady operation.
Key Features
- Adjustable operating speed for precise control
- Siemens electrical components for reliable performance
- Permanent magnet motor for efficient operation
- Automatic load-holding braking system
- Certified to CE, ABS, and API standards
- Low-maintenance design for reduced downtime
Technical Parameters
| Item | DJFY-5*16 | DJFY-20*8 | DJFY-30*20 | DJFY-50*19/10 | DJFY-60*2 |
|---|---|---|---|---|---|
| Ambient Temperature | -25℃ to 40℃ | ||||
| Lubricating Oil | GL-5, 80w-90 (Freezing point -60) | ||||
| Max Force (lb) | 1125 | 4500 | 6750 | 11250 | 13500 |
| Max Speed (ft/s) | 0.88 | 0.44 | 1.1 | 1.1/0.55 | 0.11 |
| Rated Power (H.P) | 2 | 5.4 | 14.7 | 24.8/14.7 | 5.4 |
| Rope Capacity (ft) | 130 | 260 | 390 | 390 | 165 |
| Wire Rope Diameter (in) | 0.24 | 0.55 | 0.63 | 0.75 | 0.787 |
| Dimensions L*W*H (in) | 27.6*11*13 | 49*23.5*24 | 46*30*24 | 57.5*32*26.6 | 53*32*26 |
Packaging & Shipping
The Electric Winch is securely packaged with protective foam in a reinforced cardboard box to prevent damage during transit. Orders are processed within 1-2 business days and shipped via reliable carriers for prompt delivery.
Frequently Asked Questions
What is the brand name of this Electric Winch?
Juling
What is the model number of this Electric Winch?
DJFY
Where is this Electric Winch manufactured?
China
What certifications does this Electric Winch have?
CE, ABS, and API
What are the payment terms for purchasing this Electric Winch?
T/T (Telegraphic Transfer)
