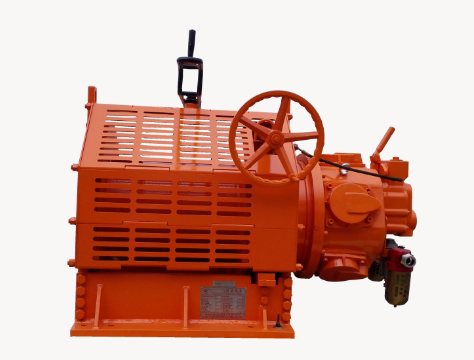

JQHS Series Air Winch 0.5-10Ton Capacity 100m Rope CE ISO Certified
| Place of Origin | China |
|---|---|
| Brand Name | Juling |
| Certification | API,ISO |
| Model Number | As Specified in the data |
| Minimum Order Quantity | 1 |
| Price | negotiable |
| Packaging Details | Wooden Box |
| Delivery Time | Stock |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Control Type | Air Control | Rope Length | 100 Meters |
|---|---|---|---|
| Warranty | 12 Months | Drum Length | 300 Mm - 900 Mm |
| Max Lifting Height | 50 Meters | Air Consumption | 2.5 M³/min - 30 M³/min |
| Air Pressure | 0.6 MPa - 0.8 MPa | Drum Diameter | 180 Mm - 600 Mm |
| Rated Capacity | 0.5 Ton - 10 Ton | Power Source | Air |
| Max Lifting Speed | 12 Meters Per Minute | Rope Diameter | 8 Mm - 20 Mm |
| Certifications | CE, ISO | Usage | Lifting In Oilfield |
| Safety Features | Emergency Stop Button, Overload Protection | Color | Yellow Orange Or Other Colors |
| Material | Steel | ||
| Highlight | CE certified air winch,ISO certified 10 ton winch,100m rope air winch |
||
Product Description
Mining Exploration Pneumatic Air Winch With 0.5Ton - 10Ton Lifting Capacity
Product Specifications
| Attribute | Value |
|---|---|
| Control Type | Air Control |
| Rope Length | 100 meters |
| Warranty | 12 Months |
| Drum Length | 300 mm - 900 mm |
| Max Lifting Height | 50 meters |
| Air Consumption | 2.5 m³/min - 30 m³/min |
| Air Pressure | 0.6 MPa - 0.8 MPa |
| Drum Diameter | 180 mm - 600 mm |
| Rated Capacity | 0.5 ton - 10 ton |
| Power Source | Air |
| Max Lifting Speed | 12 meters per minute |
| Rope Diameter | 8 mm - 20 mm |
| Certifications | CE, ISO |
| Usage | Lifting in Oilfield |
| Safety Features | Emergency Stop Button, Overload Protection |
| Color | Yellow Orange or other Colors |
| Material | Steel |
Pneumatic Winch/Air Winch With Different Lifting Capacity
Product Overview
JQHS series pneumatic winches (also known as XJFH series) are powered by piston air motors, driving the reel through a reduction mechanism to enable heavy traction or lifting operations. The tension range covers 10-150kN, featuring compact structure, convenient operation, safety, and reliability.
Key Features
- Compact and durable steel construction
- Stepless speed change capability
- Safe operation in explosive environments
- Low maintenance requirements
- Multiple safety features including emergency stop
Certifications
Our products meet the highest industry standards including:
- ISO9001:2015 quality management system
- Mining product safety mark certification
- China Classification Society (CCS) approval
- API certification
- ABS type approval
- EU CE and ATEX explosion-proof certification
Model Specifications
| Model | JQHS-5*12 | JQHS-50*12X | JQHS-50*20X | JQHS-100*10X | JQHS-150*6X |
|---|---|---|---|---|---|
| Max. lifting force | 5kN | 50kN | 70kN | 100kN | 150kN |
| Max.out layer lift force | 3kN | 30kN | 50kN | 70kN | 100kN |
| Max. lifting speed | 12m/min | 12m/min | 20m/min | 10m/min | 6m/min |
| Rated power | 2.6kw | 16kw | 16kw | 30kw | 30kw |
| Air intake pressure | 0.8Mpa | 0.8Mpa | 0.8Mpa | 0.8Mpa | 0.8Mpa |
| Rated air consumption | 3m3/min | 18.3m3/min | 18.3m3/min | 25.6m3/min | 25.6m3/min |
| Wire capacity | 30m | 120m | 150m | 200m | 200m |
| Diameter of wire | 8mm(8/25 in) | 20mm(3/4 in) | 20mm(3/4 in) | 24mm(15/16 in) | 24mm(15/16 in) |
| Net weight | 550g | 700Kg | 1100Kg | 2100Kg | 2200Kg |
Applications
Our pneumatic winches are widely used in oil, natural gas, coal, metal mining exploration, marine exploration, and shipbuilding industries. With over a dozen product series and 100+ varieties, our products are exported to more than 20 countries and regions, holding over 80% of the domestic market share.
