55 KW-6 Electric Man Riding Winch with 13500 lb Max Force
| Brand Name | Juling |
|---|---|
| Certification | CE,ABS,API |
| Model Number | DJFY |
| Minimum Order Quantity | 2 |
| Price | Negotiable |
| Delivery Time | 20 |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Motor Type | Permanent Magnet | Electric Engine | 55 KW-6 |
|---|---|---|---|
| Working Speed | As Your Needs | Clutch | Sliding Ring Gear |
| Brake | Hydraulic Brake System | Electrical Band | Siemens |
| Power Source | Electric | ||
| Highlight | 55 KW-6 electric man riding winch,13500 lb max force winch,heavy-duty manriding winch with warranty |
||
You can tick the products you need and communicate with us in the message board.
Product Description

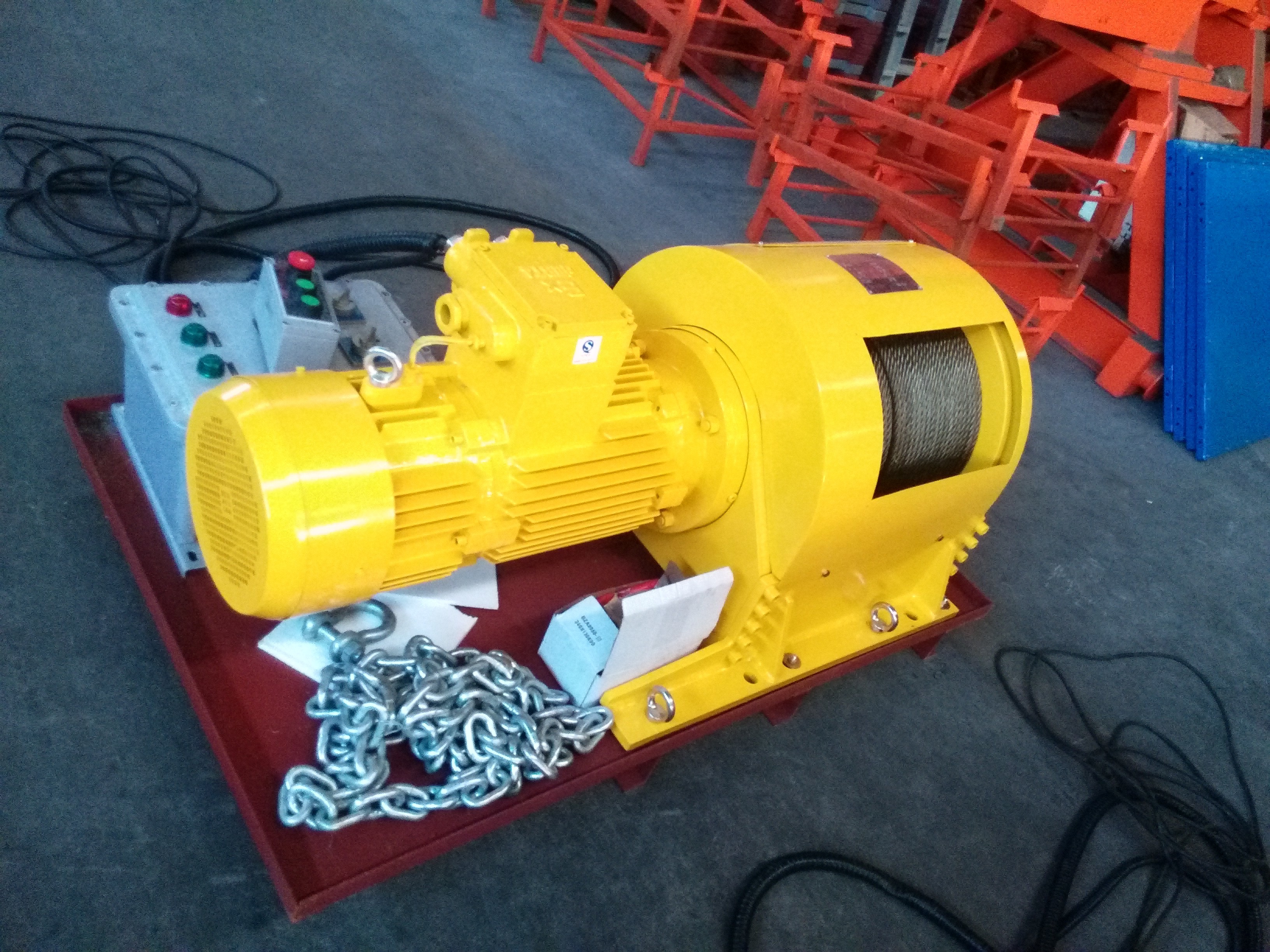

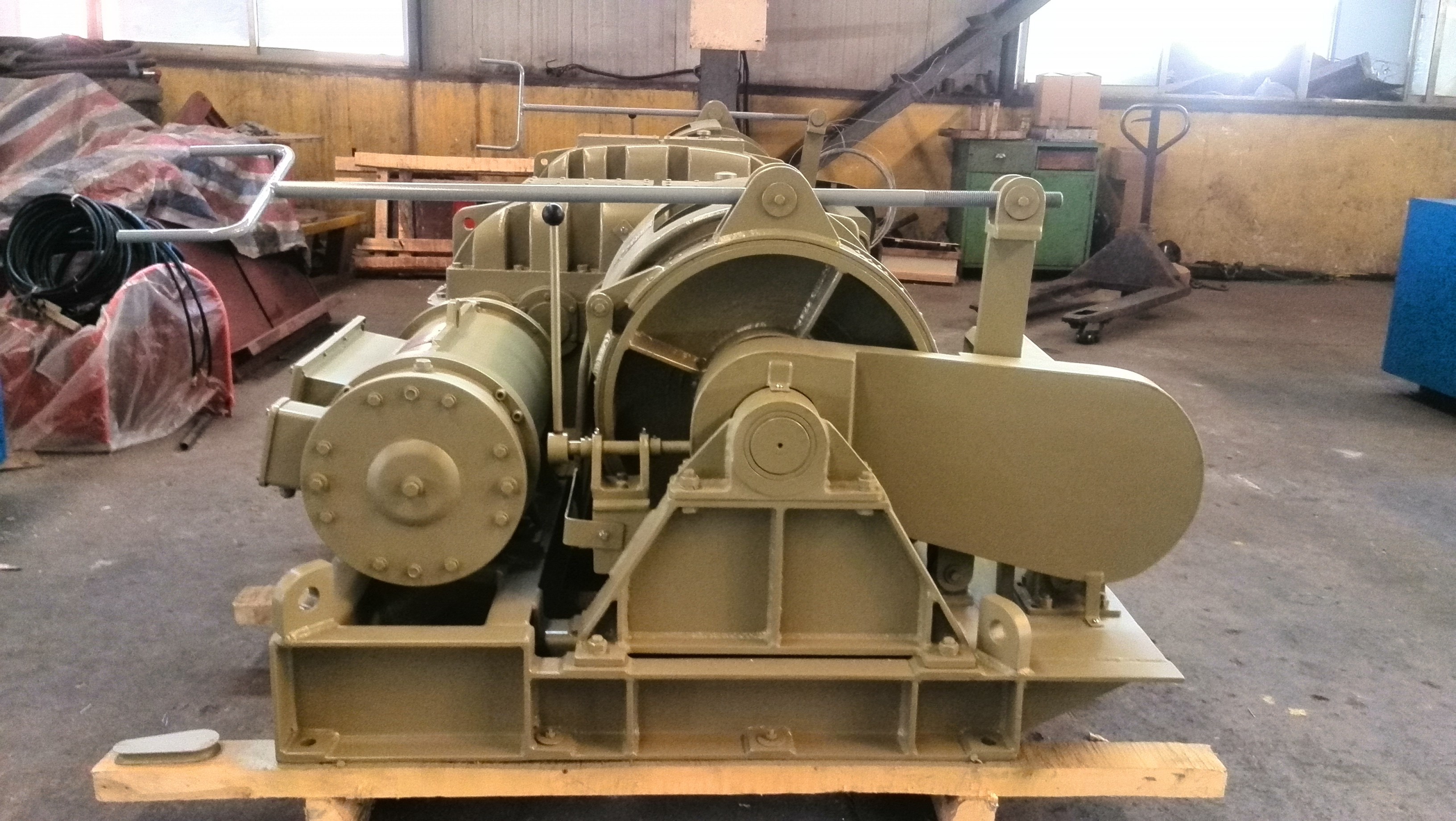

Electric Man Riding Winch with 13,500-Pound Maximum Force
The electric man riding winch is a powerful, reliable solution for heavy lifting and pulling applications. Featuring a robust 55 KW-6 electric engine, it delivers consistent performance for demanding tasks.
Key Features
- Heavy-duty steel wire rope with sling-type design for enhanced strength and safety
- 55 KW-6 electric engine provides reliable power for demanding applications
- Certified with CE, ABS, and API standards for quality assurance
- Versatile design suitable for various industrial applications
Applications
This winch is engineered for diverse industrial uses including construction, marine operations, and heavy equipment handling. Its certifications ensure compliance with international safety standards.
Ordering Information
- Minimum order quantity: 1 unit
- Flexible, negotiable pricing
- Estimated delivery time: 20 days
- Payment terms: T/T (Telegraphic Transfer)
Technical Specifications
| Item | DJFY-5*16 | DJFY-20*8 | DJFY-30*20 | DJFY-50*19/10 | DJFY-60*2 |
|---|---|---|---|---|---|
| Ambient temperature | -25℃ to 40℃ | ||||
| Lubricating oil specification | GL-5, 80w-90. Freezing point -60 | ||||
| Max Force (lb) | 1,125 | 4,500 | 6,750 | 11,250 | 13,500 |
| Max speed (ft/s) | 0.88 | 0.44 | 1.1 | 1.1/0.55 | 0.11 |
| Rated power (H.P) | 2 | 5.4 | 14.7 | 24.8/14.7 | 5.4 |
| Rope capacity (ft) | 130 | 260 | 390 | 390 | 165 |
| Wire rope diameter (in) | 0.24 | 0.55 | 0.63 | 0.75 | 0.787 |
| Overall dimensions L*W*H (in) | 27.6*11*13 | 49*23.5*24 | 46*30*24 | 57.5*32*26.6 | 53*32*26 |
Packaging & Shipping
The winch is securely packaged in a sturdy cardboard box with high-density protective foam to prevent damage during transit. Each package includes:
- Detailed instruction manual
- All necessary accessories
Shipping is handled by reliable courier services with tracking information provided upon dispatch.
Frequently Asked Questions
Q: What is the brand name of this Electric Winch?
A: The brand name is Juling.
Q: What is the model number of this Electric Winch?
A: The model number is DJFY.
Q: Where is this Electric Winch manufactured?
A: It is manufactured in China.
Q: What certifications does this Electric Winch have?
A: It is certified with CE, ABS, and API standards.
Q: What is the minimum order quantity for this Electric Winch?
A: The minimum order quantity is 1 unit.
