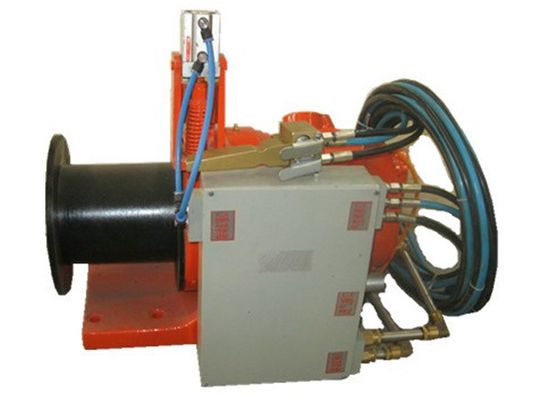

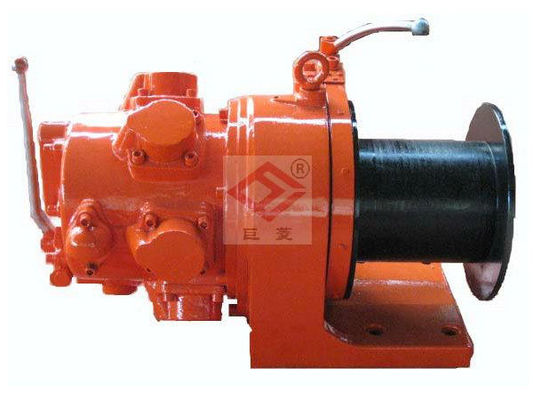

JQH Series Air Winch – ISO Certified Heavy-Duty Pneumatic Winch with 8 Mm to 20 Mm Rope Diameter and 0.6 MPa to 0.8 MPa Air Pressure
| Place of Origin | China |
|---|---|
| Brand Name | Juling |
| Certification | ISO,CE,API |
| Model Number | JQH Air Winch |
| Minimum Order Quantity | 1 |
| Delivery Time | 20 |
| Payment Terms | T/T |
| Supply Ability | 10/Per Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Rope Diameter | 8 Mm - 20 Mm | Usage | Lifting In Oilfield |
|---|---|---|---|
| Control Type | Remote Control | Air Pressure | 0.6 MPa - 0.8 MPa |
| Brake Type | Automatic Disc Brake | Certifications | ISO,CE,API |
| Rated Speed | 10-20 M/min | Rope Speed | 10 M/min - 40 M/min |
| Highlight | 8 Mm to 20 Mm Rope Diameter Air Winch,0.6 MPa to 0.8 MPa Air Pressure Pneumatic Winch,10-20 M/min Rated Speed Manriding Winch |
||
You can tick the products you need and communicate with us in the message board.
Product Description
JQH Series Air Winch – ISO Certified, Heavy-Duty & Reliable, for Oilfield Lifting
Product Overview
The JQH Series Air Winch is a premium air-powered winch engineered for lifting tasks across diverse industrial environments. It delivers efficient, reliable lifting performance with a rated speed spanning 10 to 20 meters per minute, while its adjustable rope speed (10-40 meters per minute) adds flexibility—catering to both lighter loads that demand faster operation and heavier loads requiring slower, steady movement.
Key Features
- Certified to CE and ISO standards for quality and safety
- Rated Speed: 10-20 M/min
- Adjustable Lifting Speed: 10-40 M/min
- Air Pressure: 0.6 MPa - 0.8 MPa
- Control Type: Remote Control (remote pneumatic control type)
- Generous Drum Capacity: 100 M To 500 M
Technical Specifications
| Product Model | JQH-5 ×48 (QB, QB, D, Y) | JQH-10 ×24 (QB, QB, D, Y) |
|---|---|---|
| Rated intake pressure (MPa) | 0.8 | 0.8 |
| Maximum lifting force of the first layer (kN) | 5 | 10 |
| Maximum rope speed (m/min) | 48 | 24 |
| Motor power (kW) | 2.6 | 2.6 |
| Drum diameter (mm) | 180 | 200 |
| Drum length (mm) | 200 | 200 |
| Diameter of drum flange (mm) | 290 | 380 |
| Rope capacity in non-working state (m) | 60 | 60 |
| Diameter of steel wire rope (mm) | 8 | 11 |
| Air inlet size (mm) | 25 | 25 |
| Dimensions: Length × width × height (mm) | 680×350×465 | 690×390×570 |
| Net weight (kg) | 116 | 176 |
Applications
The JQH Series Air Winch is designed for demanding lifting operations in oilfields and other industrial environments. Its combination of adjustable speed options, ample drum capacity, and stable performance under varying air pressures makes it ideal for diverse lifting tasks requiring reliability and precision.
Customization Options
Brand Name: Juling
Model Number: JQH Air Winch
Certification: ISO, CE, API
Capacity: 0.5T-10T
Brake Type: Automatic Disc Brake
Attributes: small size, quick installation, light weight
Packaging & Shipping
Each JQH Series Air Winch is carefully inspected, sealed, and packaged in a sturdy cardboard box with foam inserts for secure cushioning. We use reliable carriers for prompt delivery, with each package clearly labeled for easy identification and tracking to ensure your winch arrives safely and ready for use.
