QJP Series Air Capstan Hydraulic Motor Powered 20 ft/min
| Place of Origin | China |
|---|---|
| Brand Name | Juling |
| Certification | API,ISO |
| Model Number | As Specified in the data |
| Minimum Order Quantity | 1 |
| Price | negotiable |
| Packaging Details | Wooden Box |
| Delivery Time | Stock |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Line Speed | 20 Ft/min | Gear Ratio | 3:1 |
|---|---|---|---|
| Drum Capacity | 24 M | Wire Rope Diameter | ∅8mm |
| Color | Yellow Orange Or Other Colors | Motor Displacement | 80ml/rev |
| Size | 390*190*340 Mm | Net Weight | 260Kg |
| Cable Length | 50 Ft | Power | HYDRAULIC MOTOR |
| Drum Size | 2.5" X 5.5 | Materials | Steel |
| Warranty | 12 Months | Usage | Lifting In Oilfield |
| Certifications | CE, ISO | Safety Features | Emergency Stop Button, Overload Protection |
| Material | Steel | ||
| Highlight | Motor Powered Air Capstan,Hydraulic Motor Air Capstan,Air Capstan 20 ft/min |
||
Product Description

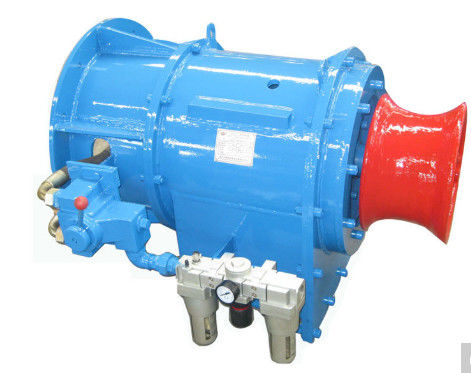

QJP Series Air Capstan Powered By Motor
PRODUCTION
QJP series air capstan is a new type of pneumatic machinery products designed for the use of ships, docks and other needs and environment. It is powered by an air motor and transmits power to the drum
NUMBERING METHOD
① QJP:pneumatic capstan
② Max lifting force in first layer:*10kN ；
③ Max speed:m/min
TECHNICAL PARAMETER
|
Product Model |
QJP-0.5*15 |
QJP-3*15 |
QJP-5*15 |
|
Maximum Tractive Effort(kN) |
5 |
30 |
50 |
|
Maximum Rope Speed(m/min) |
15 |
15 |
5-15 |
|
Rated Power(kW) |
2.6 |
11 |
16 |
|
Rated Intake Pressure |
0.8 |
0.8 |
0.8 |
|
Rated Air Consumption(m3/min) |
≤5 |
≤11 |
≤18 |
|
Weight(kg) |
200 |
350 |
500 |
