Oilfield Hydraulic Winch With Force Range From 5kN ~ 300kN HW (YJ) Series
| Place of Origin | China |
|---|---|
| Brand Name | Juling |
| Certification | API,ISO |
| Model Number | As Specified in the data |
| Minimum Order Quantity | 1 |
| Price | negotiable |
| Packaging Details | Wooden Box |
| Delivery Time | Stock |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Color | Yellow Orange Or Other Colors | Cable Type | Steel Wire Rope |
|---|---|---|---|
| Usage | Lifting In Oilfield | Power | Hydraulic |
| Wire Rope Diameter | 11 Mm | Rated Line Pull | 5000 Lbs |
| Layer No | 22 | Braking System | Automatic Load-holding Brake |
| Oil Pressure | 14Mpa/140Bar | Dimension | Custom Built |
| Gear Ratio | 3-stage Planetary, 159:1 | Cable Length | 50 Ft |
| Pull Force | 1-100 Ton | Mounting Type | Universal Mounting Plate |
| Certifications | CE, ISO | Safety Features | Emergency Stop Button, Overload Protection |
| Material | Steel | Warranty | 12 Months |
| Highlight | Hydraulic Winch 300kN,Hydraulic Winch 5kN,Oilfield Hydraulic Winch |
||
Product Description

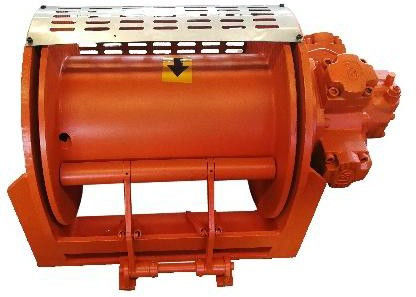

Hydraulic Winch With Force Range From 5kN ~ 300kN HW (YJ) Series
PRODUCTION
HW (YJ) series hydraulic winch is a new product with the introduction of Italian technology and further improvement. Winch lifting force range covers 5kN ~ 300kN, specifications, varieties are complet
NUMBERING METHOUD
○1 Hydraulic winch
○2 Rated traction of the first layer (*10kN)
PARAMETERS
|
Item |
Specificaton |
||
|
Model |
HW-3 |
HW-5 |
HW-8 |
|
Max Lifting Force(lb) |
6745 |
11240 |
17985 |
|
Lifting Speed(ft/s) |
1.64 |
1.36 |
1.65 |
|
Rated Power(H.P) |
64 |
53 |
67 |
|
Motor Output Volume(ml/r) |
314 |
623 |
1116 |
|
Oil Consumpiton(l/min) |
86 |
120 |
200 |
|
Wire Rope Diameter(in) |
0.63 |
0.787 |
0.95 |
|
Rope Capacity(ft) |
400 |
400 |
525 |
|
Overall Diamension(L*W*H)in |
32*17*20 |
36*19*22 |
38*29*28 |
|
Weight(lb) |
650 |
1100 |
1550 |
