HW (YJ) Series Hydraulic Winch Remote Controlled With 5kN ~ 300kN Lifting Force Range
| Place of Origin | China |
|---|---|
| Brand Name | Juling |
| Certification | API,ISO |
| Model Number | As Specified in the data |
| Minimum Order Quantity | 1 |
| Price | negotiable |
| Packaging Details | Wooden Box |
| Delivery Time | Stock |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Usage | Lifting In Oilfield | Control Type | Remote Control |
|---|---|---|---|
| Capacity | 1000 Lbs | Rope | Steel Wirerope Or Stainless Rope |
| Materials | Steel | Power | Hydraulic |
| Material | Steel | Certifications | CE, ISO |
| Safety Features | Emergency Stop Button, Overload Protection | Color | Yellow Orange Or Other Colors |
| Warranty | 12 Months | ||
| Highlight | Remote Control Hydraulic Winch,5kN Hydraulic Winch,300kN Hydraulic Winch |
||
Product Description

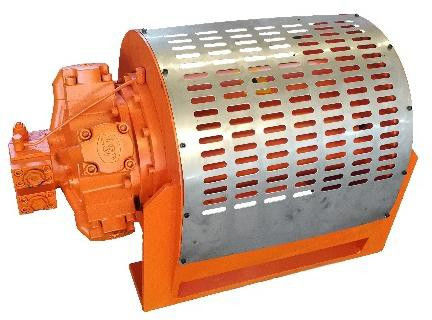

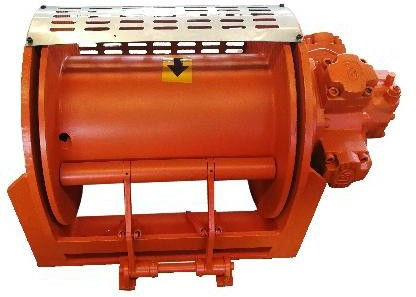

HW (YJ) Series Hydraulic Winch
PRODUCTION
HW (YJ) series hydraulic winch is a new product with the introduction of Italian technology and further improvement. Winch lifting force range covers 5kN ~ 300kN, specifications, varieties are complet
NUMBERING METHOUD
○1 Hydraulic winch
○2 Rated traction of the first layer (*10kN)
PARAMETERS
|
Item |
Specificaton |
||
|
Model |
HW-3 |
HW-5 |
HW-8 |
|
Max Lifting Force(lb) |
6745 |
11240 |
17985 |
|
Lifting Speed(ft/s) |
1.64 |
1.36 |
1.65 |
|
Rated Power(H.P) |
64 |
53 |
67 |
|
Motor Output Volume(ml/r) |
314 |
623 |
1116 |
|
Oil Consumpiton(l/min) |
86 |
120 |
200 |
|
Wire Rope Diameter(in) |
0.63 |
0.787 |
0.95 |
|
Rope Capacity(ft) |
400 |
400 |
525 |
|
Overall Diamension(L*W*H)in |
32*17*20 |
36*19*22 |
38*29*28 |
|
Weight(lb) |
650 |
1100 |
1550 |
Tai 'an Juling Drilling Equipment Co., Ltd. is a high-tech enterprise specializing in the research and development and manufacturing of pneumatic machinery. It has more than 30 years of experience in the research and development and manufacturing of pneumatic machinery. It is a professional research and development manufacturer of pneumatic winch, and a member of the first-class supply network of Sinopec and petrochina.
According to the market demand, the company constantly carries out the research and development and application promotion of new products. At present, there are JQH series, JQHS series and XJFH series pneumatic winch, ZJQH series manned pneumatic winch, QJP series pneumatic winch, QDH series pneumatic hoist, DSJ series winding machine, DJFY series electric winch, CJ series logging winch, YJ series hydraulic winch and more than a dozen series, more than 100 varieties of products. Only the pneumatic winch has formed eight series from 5kN to 150kN, dozens of varieties of product scale, complete the remote air control, remote control, near and far dual control and air brake, emergency release, overload protection and many other product functional design, product performance has reached or close to the world advanced level. Widely used in oil, gas, coal, metal and Marine resources exploration and development and other fields. Exports to the United States, Russia, Singapore and Europe, the Middle East, South America and other dozens of countries and regions.
The company attaches great importance to the quality system construction and product certification work, passed the ISO9001: 2015 Quality management system certification, safety mark certification of mining products, product type approval of China Classification Society (CCS), API certification of American Petroleum Institute, type approval and CE certification of American Classification Society (ABS) for "Manned pneumatic winch" products, and EU CE certification and ATEX explosion proof certification for pneumatic winch.
