Hydraulic Rope Rewinding Machine DSJ38YS With Maximum Road Capacity 1200m 7.5kW
| Place of Origin | China |
|---|---|
| Brand Name | Juling |
| Certification | API,ISO |
| Model Number | As Specified in the data |
| Document | Products Catalogue-Winch.pdf |
| Minimum Order Quantity | 1 |
| Price | negotiable |
| Packaging Details | Wooden Box |
| Delivery Time | Stock |
| Payment Terms | DP |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 12 Months | Material | Steel |
|---|---|---|---|
| Manufacturer | Various Manufacturers Available | Application | Lifting And Hoisting Heavy Objects |
| Certifications | CE, ISO | Safety Features | Emergency Stop Button, Overload Protection |
| Usage | Lifting In Oilfield | Color | Yellow Orange Or Other Colors |
| Highlight | 1200m Rope Rewinding Machine,Rope Rewinding Machine 7.5kW,1200m Hydraulic Rope Winch |
||
Product Description

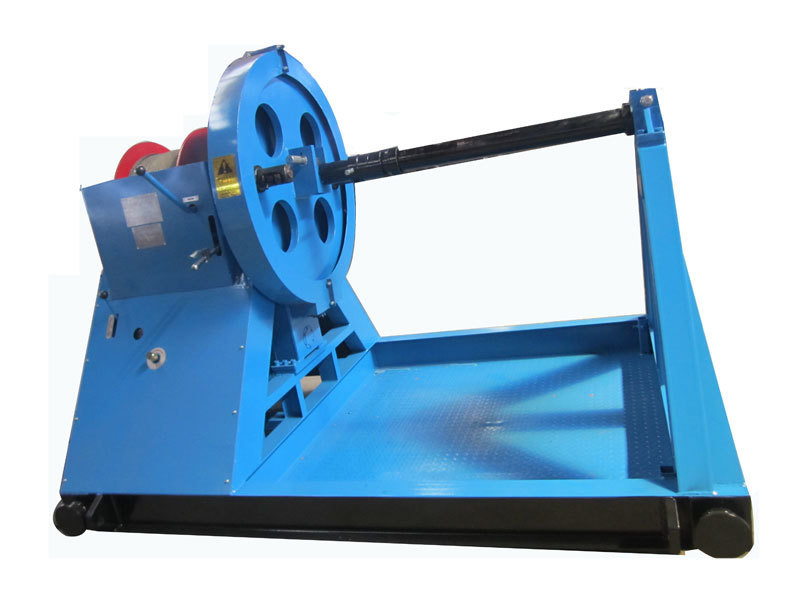

Hydraulic Rope Rewinding Machine DSJ38YS With Maximum Road Capacity 1200m
PRODUCTION
DSJ series drill line spooler is a special equipment used to collect and lay wire rope in oil field drilling operations.
The DSJ38Q model demonstrates enhanced performance with higher power (16 kW vs 7.5kW) and increased load capacity (10,000kg vs 8,000kg). All models maintain consistent torque output at 10,000 Nm. The DSJ38YS offers the widest speed adjustment range (0.55-17.5 rpm), while the DSJ38Q features a zero-start adjustable speed capability. Wire rope capacities vary between 1,000-1,200 meters depending on configuration. This specification matrix highlights critical performance variations to facilitate model selection based on operational requirements for industrial hoisting applications.
NUMBERING METHOD
① Rope drum marking :S- coaxial rope reel; C- side rope reel; without drag rope roller without sign.
② Power type: Y- hydraulic type; D- electric type; T- electric speed regulation; Q- pneumatic type.
③ Maximum Speed Of Revolution: r/min.
④ Maximum Load Weight:*1000kg.
⑤ Main Drum Rope Diameter (generally not marked).
⑥ Rope Capstan Machine.
TECHNICAL PARAMETER
|
No. |
Item |
Technical Parameters |
|||
|
1 |
Model |
DSJ38DC |
DSJ38YS |
DSJ38Q |
|
|
2 |
Output Speed(r/min) |
11 |
0.55-17.5 |
0-13 |
|
|
3 |
Output Torque(N·m) |
10000 |
10000 |
10000 |
|
|
4 |
Power |
7.5kW |
7.5kW |
16 kW |
|
|
5 |
rope capacity-38mm |
1000m |
1200m |
1200 |
|
|
6 |
Load weight |
8000 |
8000 |
10000 |
|
|
7 |
Drum |
Width(mm) |
1200 |
1200 |
1640 |
|
External Diameter(mm) |
2200 |
2200 |
2200 |
||
|
Center Hole(mm) |
100 |
100 |
100 |
||
|
8 |
Dimensions: Length * Width * Height(mm) |
3200*1790*1880 |
3200*1790*1880 |
3045*2050*1845 |
|
|
9 |
Weight(kg) |
1000 |
1200 |
1450 |
|
