SC150 Vertical Electric Passenger With Rated Load 1.5 Ton Rated Lifting Speed 22m/min
| Place of Origin | China |
|---|---|
| Brand Name | Juling |
| Certification | API,ISO |
| Model Number | As Specified in the data |
| Minimum Order Quantity | 1 |
| Price | negotiable |
| Packaging Details | Wooden Box |
| Delivery Time | Stock |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Lifting Height | 10 Meters | Air Consumption | 0.8 M³/min |
|---|---|---|---|
| Manufacturer | XYZ Company | Warranty | 12 Months |
| Type | Pneumatic | Suspension Type | Hook |
| Certifications | CE, ISO | Usage | Lifting In Oilfield |
| Safety Features | Emergency Stop Button, Overload Protection | Color | Yellow Orange Or Other Colors |
| Material | Steel | ||
| Highlight | Vertical Electric Passenger,1.5 Ton Load Electric Passenger,22m/min Electric Passenger |
||
Product Description

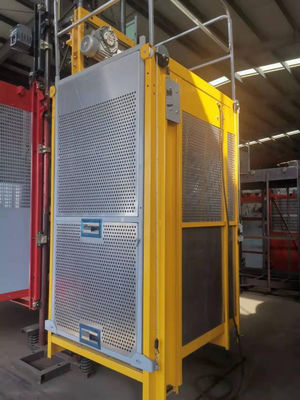

SC150 Vertical Electric Passenger With Rated Load 1.5 Ton
PRODUCTION
SC150 vertical electric passenger /freight elevator is a kind of lift suitable for oilfield drilling rig developed by the company after 5 years. Attaching and installing on the equipment support to realize the material/manpower between the ground and the excavation layer, thus reducing the labor intensity of workers, improving the transportation efficiency of material/manpower and the automation level of equipment
It has advanced technical performance, safe and reliable use, easy maintenance. The elevator adopts computer-aided design, compared with the traditional construction elevator, it has the characteristics of beautiful shape, light structure, convenient disassembly, safety and reliability, strong applicability, wide use and so on
TECHNICAL PARAMETER
|
Rated load |
1.5t |
|
Rated lifting speed (m/min) |
22 |
|
Lifting height(m) |
11(on request) |
|
Hanging cage dimensions(L*W*H)(mm) |
1600*1200*2400(Internal height) |
|
Rail frame size(W*L)(mm) |
650*1508 |
This product boasts several remarkable features that set it apart in its category. Firstly, it incorporates comprehensive and reliable safety protection, including a nationally patented anti-fall safety device, ensuring that the machine's reliability surpasses that of similar products on the market. This advanced safety mechanism provides users with peace of mind, knowing they are protected by cutting-edge technology.
Secondly, the product features a versatile combined design, allowing for various configurations to meet different speed and weight-lifting requirements. This flexibility enhances the product's practicality and universality, making it adaptable to a wide range of applications and user needs. Whether for light or heavy-duty tasks, the product can be customized to deliver optimal performance.
Lastly, the machine offers smooth operation and a comfortable ride. The driving unit is strategically positioned above the cage, maximizing headroom and creating a more spacious interior. Additionally, the use of frequency conversion speed regulation ensures stable transmission, minimizing mechanical vibrations and providing passengers with a comfortable and enjoyable experience. These features collectively make the product a top choice for those seeking reliability, versatility, and comfort.
