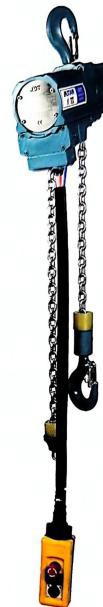

500kg Pneumatic Hoist with Aluminum Alloy Housing

  • 500kg Pneumatic Hoist with Aluminum Alloy Housing
Brand Name Juling
Certification CE,API
Model Number DQH Series
Minimum Order Quantity 1
Price Negotiable
Delivery Time 30
Payment Terms T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Housing Material Aluminum Alloy Air Consumption 0.8m³/min
Suspension Type Hook Capacity 500kg
Control Method Pendant Control Weight 25 Kg
Dimensions 50 Cm X 30 Cm X 40 Cm Color Yellow Orange Or Other Colors
Highlight

500kg pneumatic hoist with warranty

,

aluminum alloy pneumatic hoist

,

heavy duty pneumatic hoist
Leave a Message
Product Description
500kg Pneumatic Hoist with Aluminum Alloy Housing and Pendant Control
Product Specifications
Attribute Value
Housing Material Aluminum Alloy
Air Consumption 0.8m³/min
Suspension Type Hook
Capacity 500kg
Control Method Pendant Control
Weight 25 Kg
Dimensions 50 Cm X 30 Cm X 40 Cm
Color Yellow Orange Or Other Colors
Product Overview
The Pneumatic Hoist is a versatile and reliable lifting solution designed for industrial material handling. Available in Yellow, Orange, or custom colors, this CE and ISO9001 certified hoist combines functionality with aesthetic appeal.
Key Features
  • Operates at 0.6-0.8MPa air pressure for powerful lifting
  • Efficient 0.8m³/min air consumption for smooth operation
  • Pendant Control for precise handling and maneuverability
  • Wide operating temperature range: -20℃ to 70℃
  • Robust construction resistant to dust and humidity
  • Compact aluminum alloy housing for durability
Technical Parameters
The following table details the specifications for various models in the series:
Model Capacity (Kg) Lifting Height (m) Hoisting Speed (m/min) Lowering Speed (m/min) Rated Air Pressure (MPa) Air Consumption (m³/min) Dimensions (mm) Number of Chains
QDH0.5 500 0-10 19 17 0.6 1.2 300×180×450 1
QDH1.0S 1000 0-10 10 8 0.6 1.5 300×200×450 2
QDH1.0D 1000 0-10 15 12 0.6 1.5 300×200×450 1
QDH2.0 2000 0-10 5.5 5.5 0.6 1.2 300×200×500 2
QDH3.0 3000 0-10 10 11 0.6 5.5 500×240×600 1
QDH5.0 5000 0-10 5 5.5 0.6 5.5 500×240×675 2
QDH8.0 8000 0-10 3.2 3.4 0.6 5.5 500×240×675 2
QDH10.0 10000 0-10 3.2 3.4 0.6 5.5 575×300×820 2
QDH15.0 15000 0-10 2 2.1 0.6 5.5 685×310×900 3
QDH20.0 20000 0-10 1.4 1.6 0.6 5.5 695×315×1030 4
QDH25.0 25000 0-10 2.4 2.8 0.6 6.5 900×445×1260 6
QDH30.0 30000 0-10 2.4 2.8 0.6 6.5 900×445×1260 6
QDH40.0 40000 0-10 1.7 2 0.6 6.5 1080×450×1470 6
QDH50.0 50000 0-10 1.3 1.6 0.6 6.5 1080×430×1485 6
QDH100.0 100000 0-10 1 0.95 0.6 7.5 1535×600×1930 6
Applications
The Juling Pneumatic Hoist from the DQH Series is designed for diverse industrial lifting applications. Its compact structure and avant-garde design make it ideal for space-constrained environments requiring efficient material handling.
Additional Information
  • Manufactured in China with CE and API certifications
  • Minimum order quantity: 1 unit (price negotiable)
  • Standard delivery time: 30 days
  • Chain material: Alloy steel for enhanced durability
  • Power source: Compressed air (environmentally friendly)
  • Designed for no lubrication operation to reduce maintenance
