Stainless Steel Pneumatic Chain Hoists With Trolleys And Remote Control
| Place of Origin | China |
|---|---|
| Brand Name | Juling |
| Certification | API,ISO |
| Model Number | As Specified in the data |
| Minimum Order Quantity | 1 |
| Price | negotiable |
| Packaging Details | Wooden Box |
| Delivery Time | Stock |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Certifications | CE, ISO | Usage | Lifting In Oilfield |
|---|---|---|---|
| Safety Features | Emergency Stop Button, Overload Protection | Color | Yellow Orange Or Other Colors |
| Material | Steel | Warranty | 12 Months |
| Highlight | Stainless Steel Pneumatic Chain Hoists,Pneumatic Chain Hoists With Trolleys,Remote Control Pneumatic Chain Hoists |
||
Product Description

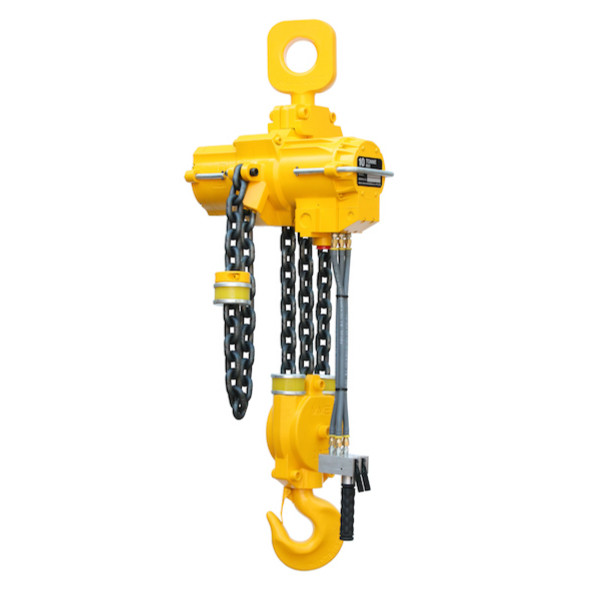

Pneumatic Chain Hoists With Trolleys & Remote Control
PRODUCTION
YS’s large capacity lifting Pneumatic Chain Hoists have all the power required to meet the harsh environment operation. Featuring spark-resistant, high speed, unlimited duty-cycle, and precise positioning, they reduce the risk of sparks, and become the ideal choice for heavy material handling in extreme applications, including mines, rigging platforms, shipbuilding and petrochemical industries. Our YS air chain hoists come in a number of additional extra features including hook mount, trolleys with manual, air and electric drives for mounting on I-beams; overload protection, pendant and remote control etc.
STANDARD CHARACTERISTIC
DURABILITY
Rugged stainless steel construction adaptable to any onshore and offshore environment
Compact design and lightweight body
Corrosion-resistant load chain
Unlimited duty cycle for severe applications
Less maintenance, simple inspections, and easy replacement.
SAFETY
Suitable for explosive environments (ATEX Certified level Ex II 2GD c T5 IIB T100°C)
Adjustable load limiter integrated into hoist body stops lift when the hoist is overloaded.
Multiple brakes and the heavy-duty enclosed disc brake provides reliable braking system
PERFORMANCE
Easily coupling to the trolleys add additional mobility (optional)
Ball bearing mounted bottom hook allows easier, smoother turning with load
Vane air motor design for fine feathering control
Pendant, Cord, and remote control available for choos
PNEUMATIC CHAIN HOISTS KEY SPECIFICATION
| Compressed Air Pressure | 0.6 MPa |
| Max Lifting Height | 0m – 20 m |
| Lifting Capacity | 0.25T – 10T |
| Lifting Speed | 9.0m/min – 0.5m/min |
| Lowing Speed | 12.0m/min – 1.0m/min |
| Air Consumption | 0.8m³/min – 2.8m³/min |
| Hoists Weight | 90Kgs – 350Kgs |
