Pneumatic Rope Rewinding Machine Side Rope Reel Or Coaxial Rope Reel
| Place of Origin | China |
|---|---|
| Brand Name | Juling |
| Certification | API,ISO |
| Model Number | As Specified in the data |
| Minimum Order Quantity | 1 |
| Price | negotiable |
| Packaging Details | Wooden Box |
| Delivery Time | Stock |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Air-powered | Warranty | 12 Months |
|---|---|---|---|
| Material | Steel | Safety Features | Emergency Stop Button, Overload Protection |
| Application | Industrial Lifting And Positioning | Dimensions | 50 Cm X 30 Cm X 40 Cm |
| Capacity | 1 Ton | Operating Pressure | 90 Psi |
| Certifications | CE, ISO | Usage | Lifting In Oilfield |
| Color | Yellow Orange Or Other Colors | ||
| Highlight | Rewinding Machine Side Rope Reel,Rewinding Machine Coaxial Rope Reel,Pneumatic Rope Rewinding Machine Parts |
||
Product Description

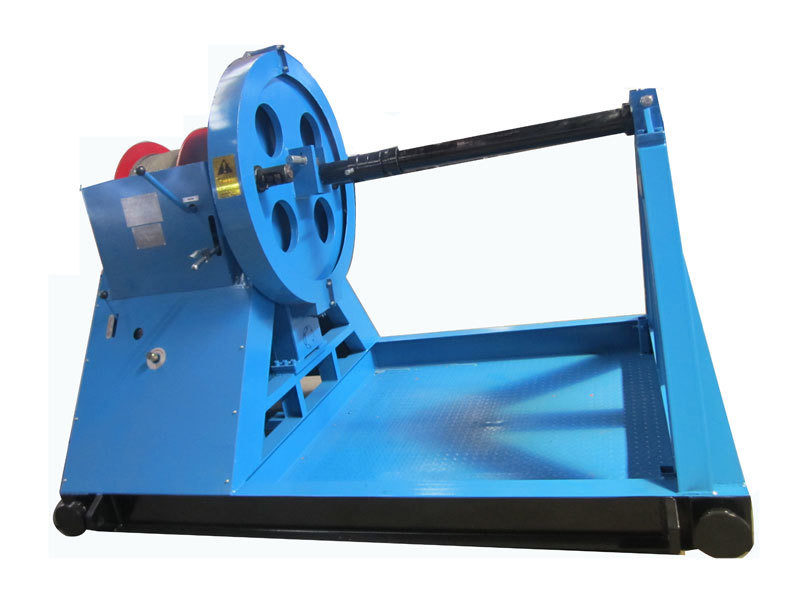

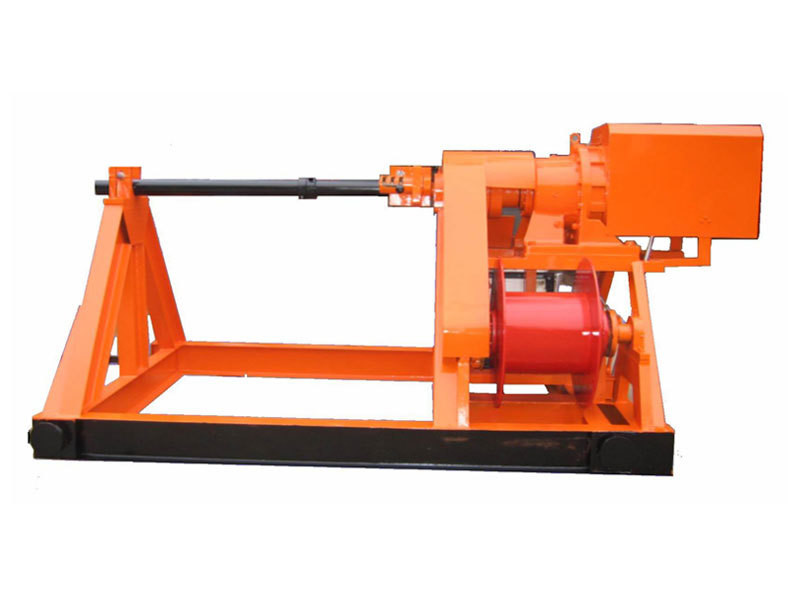

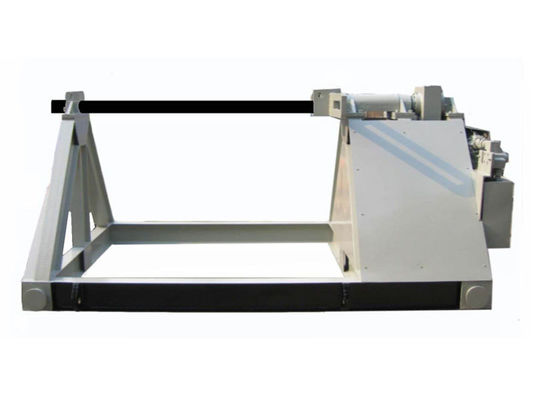

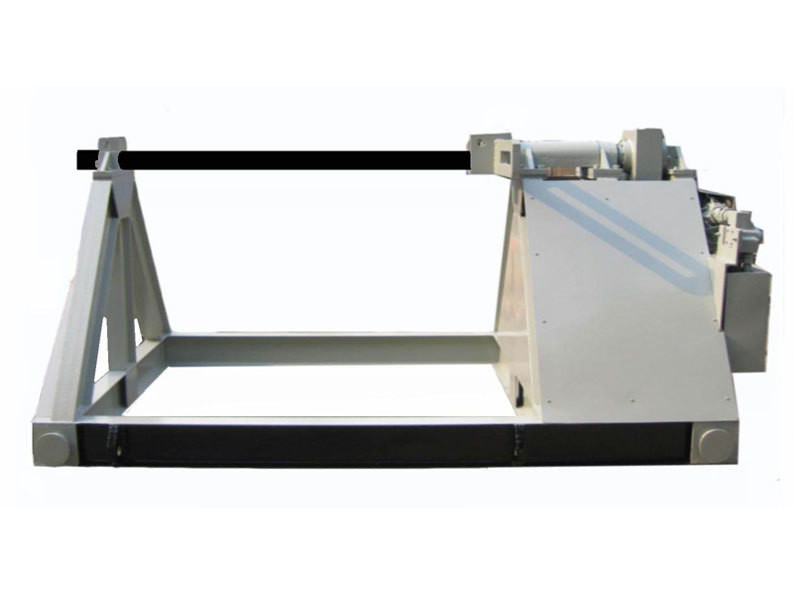

Pneumatic Rope Rewinding Machine Side Rope Reel Or Coaxial Rope Reel
PRODUCTION
DSJ series Pneumatic Rope Rewinding Machine is designed for efficiently coiling and deploying wire ropes in oilfield drilling operations. By neatly winding ropes after re-closing, it simplifies relocation and reuse while preventing tangling, twisting, and abrasion, significantly extending rope service life. The system mechanizes rope handling, reducing manual labor and enhancing operational safety. It also supports large-scale cable management during deployment and retrieval.
The spooler offers flexible power configurations:
- **Hydraulic/pneumatic drives**: Enable stepless speed control for precise adjustments.
- **Electric drives**: Available in fixed-speed or variable-speed models.
Customizable by tonnage, torque, and structural design, it can integrate a lead drum upon request to optimize rope alignment. Adaptable to diverse operational demands, the DSJ series ensures reliability in harsh drilling environments, combining durability with user-centric innovation.
NUMBERING METHOD
① Rope drum marking :S- coaxial rope reel; C- side rope reel; without drag rope roller without sign.
② Power type: Y- hydraulic type; D- electric type; T- electric speed regulation; Q- pneumatic type.
③ Maximum Speed Of Revolution: r/min.
④ Maximum Load Weight:*1000kg.
⑤ Main Drum Rope Diameter (generally not marked).
⑥ Rope Capstan Machine.

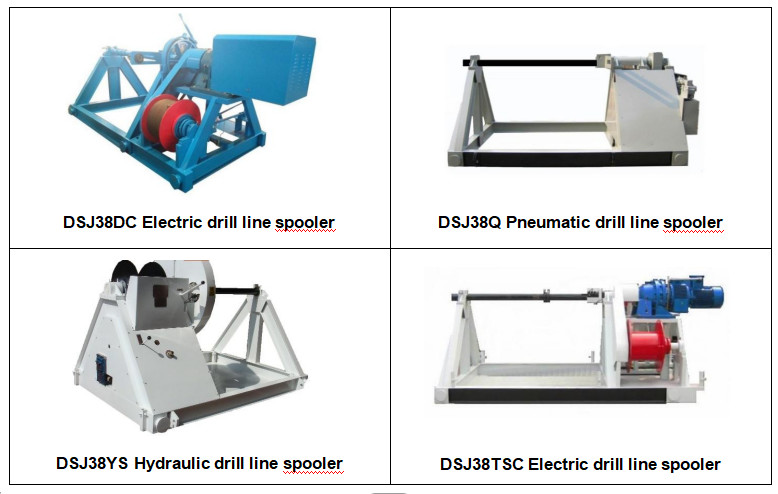

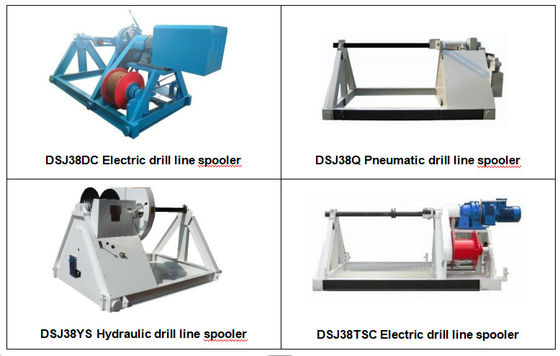

TECHNICAL PARAMETER
|
No. |
Item |
Technical Parameters |
|||
|
1 |
Model |
DSJ38DC |
DSJ38YS |
DSJ38Q |
|
|
2 |
Output Speed(r/min) |
11 |
0.55-17.5 |
0-13 |
|
|
3 |
Output Torque(N·m) |
10000 |
10000 |
10000 |
|
|
4 |
Power |
7.5kW |
7.5kW |
16 kW |
|
|
5 |
rope capacity-38mm |
1000m |
1200m |
1200 |
|
|
6 |
Load weight |
8000 |
8000 |
10000 |
|
|
7 |
Drum |
Width(mm) |
1200 |
1200 |
1640 |
|
External Diameter(mm) |
2200 |
2200 |
2200 |
||
|
Center Hole(mm) |
100 |
100 |
100 |
||
|
8 |
Dimensions: Length * Width * Height(mm) |
3200*1790*1880 |
3200*1790*1880 |
3045*2050*1845 |
|
|
9 |
Weight(kg) |
1000 |
1200 |
1450 |
|
