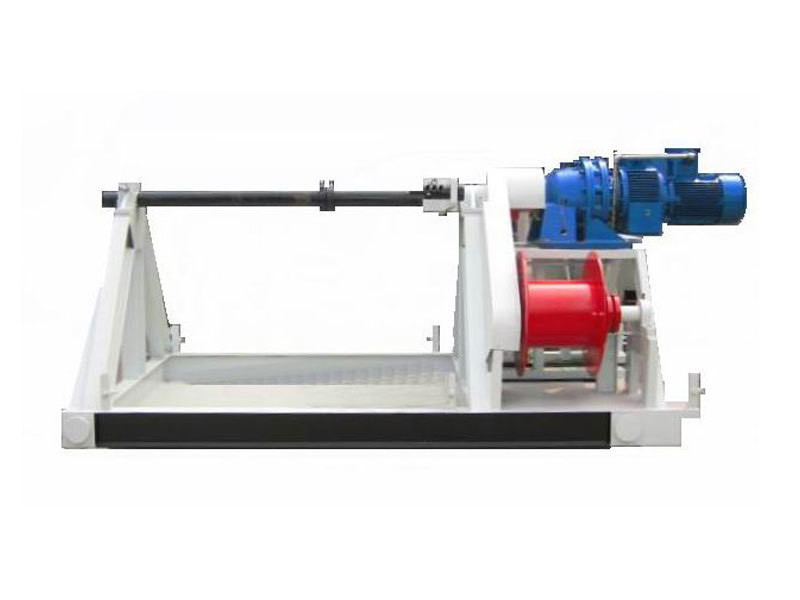

Electric Stepless Speed Regulation Rope Rewinding Machine Side Pulley DSJ38TSC

DSJ38TSC Electric Stepless Speed Regulation Rope Rewinding Machine Side Pulley

PRODUCTION

DSJ series drill line spooler is a special equipment used to collect and lay wire rope in oil field drilling operations. The use of the equipment can be used after the wire rope re-closing, in order to facilitate the relocation and re-use of the wire rope,  but  also  to prevent the wire rope rolling, twisting, has the role of protecting the wire rope; At the same time, reduce the labor intensity of workers collecting and laying wire rope, and realize the mechanization of collecting and laying wire rope. The product can also be used for large cable, wire laying in the collection and release operations.

According to the different needs of users, its power system has hydraulic, electric and pneumatic forms, hydraulic and pneumatic can achieve stepless speed regulation, electric type has constant speed type and stepless speed regulation type, can be designed and produced according to the different needs of users of different tonnage,  torque  and structural forms of products, can also be added according to user requirements lead drum.

Power form: hydraulic, electric, pneumatic

NUMBERING METHOD

① Rope drum marking :S- coaxial rope reel; C- side rope reel; without drag rope roller without sign.

② Power type: Y- hydraulic type; D- electric type; T- electric speed regulation; Q- pneumatic type.

③  Maximum Speed Of Revolution: r/min.

④ Maximum Load Weight:*1000kg.

⑤ Main Drum Rope Diameter (generally not marked).

⑥ Rope Capstan Machine.

TECHNICAL PARAMETER
