DSJ Series Electric Stepless Speed Regulation Rope Rewinding Machine Side Pulley

DSJ Series Electric Stepless Speed Regulation Rope Rewinding Machine (Side Pulley)

PRODUCTION

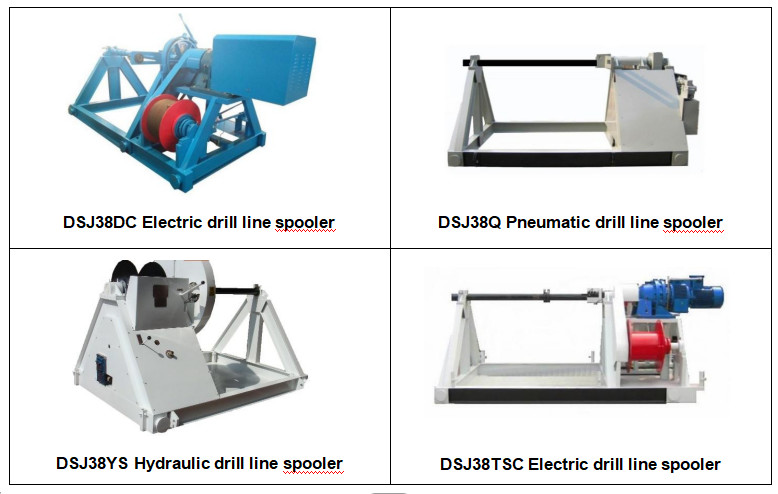

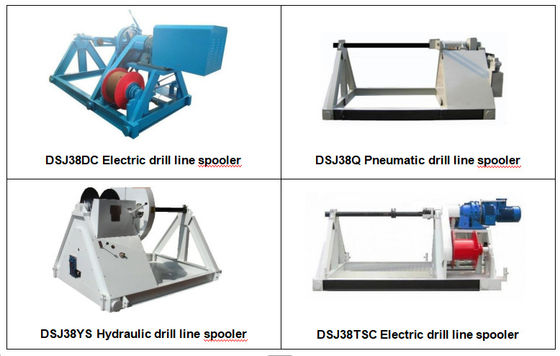

The DSJ series drill line spooler is a specialized piece of equipment designed for the collection and deployment of wire ropes in oil field drilling operations. This device plays a crucial role in the efficient handling of wire ropes, particularly after their re-closing, facilitating easier relocation and reuse. It effectively prevents issues such as rolling and twisting of the wire ropes, thereby offering significant protection to the ropes. Additionally, it reduces the physical strain on workers involved in the collection and laying processes, promoting a more mechanized approach to these tasks. The versatility of the DSJ series extends to its capability in handling large cables and wires during collection and release operations.

To cater to diverse user requirements, the DSJ series is available with various power systems, including hydraulic, electric, and pneumatic options. The hydraulic and pneumatic models offer the advantage of stepless speed regulation, while the electric models come in both constant speed and stepless speed regulation types. The product line is highly customizable, allowing for the design and production of units with different tonnages, torques, and structural configurations based on specific user needs. Furthermore, additional features such as lead drums can be incorporated upon request. This adaptability ensures that the DSJ series can meet a wide range of operational demands in the field.

NUMBERING METHOD

①Rope drum marking :S- coaxial rope reel; C- side rope reel; without drag rope roller without sign.

②Power type: Y- hydraulic type; D- electric type; T- electric speed regulation; Q- pneumatic type.

③ Maximum Speed Of Revolution: r/min.

④ Maximum Load Weight:*1000kg.

⑤ Main Drum Rope Diameter (generally not marked).

⑥ Rope Capstan Machine.

TECHNICAL PARAMETER
