DSJ38YS Hydraulic Rope Rewinding Machine Side Rope Roller 1ton Capacity

  • DSJ38YS Hydraulic Rope Rewinding Machine Side Rope Roller 1ton Capacity
  • DSJ38YS Hydraulic Rope Rewinding Machine Side Rope Roller 1ton Capacity
  • DSJ38YS Hydraulic Rope Rewinding Machine Side Rope Roller 1ton Capacity
  • DSJ38YS Hydraulic Rope Rewinding Machine Side Rope Roller 1ton Capacity
  • DSJ38YS Hydraulic Rope Rewinding Machine Side Rope Roller 1ton Capacity
  • DSJ38YS Hydraulic Rope Rewinding Machine Side Rope Roller 1ton Capacity
Place of Origin China
Brand Name Juling
Certification API,ISO
Model Number As Specified in the data
Minimum Order Quantity 1
Price negotiable
Packaging Details Wooden Box
Delivery Time Stock
Payment Terms T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Usage Lifting In Oilfield Control Method Pendant Control
Safety Features Emergency Stop Button, Overload Protection Housing Material Aluminum
Load Capacity 1 Ton Air Pressure 6 Bar
Power Source Compressed Air Type Pneumatic
Lifting Speed 5 Meters Per Minute Chain Material Alloy Steel
Certifications CE, ISO Warranty 12 Months
Lifting Height 10 Meters Color Yellow Orange Or Other Colors
Material Steel
Highlight

Hydraulic Rope Rewinding Machine

,

Rewinding Machine Side Rope Roller

,

1ton Rope Rewinding Machine
Leave a Message
Product Description

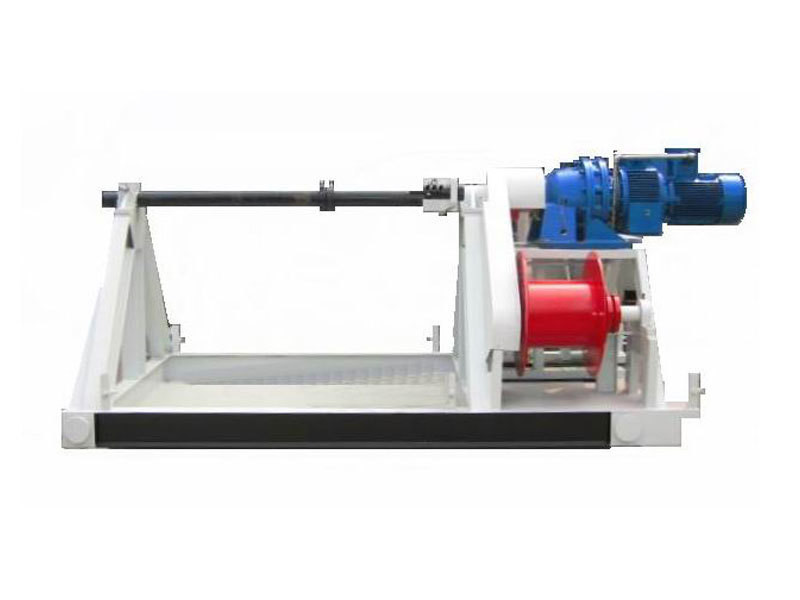

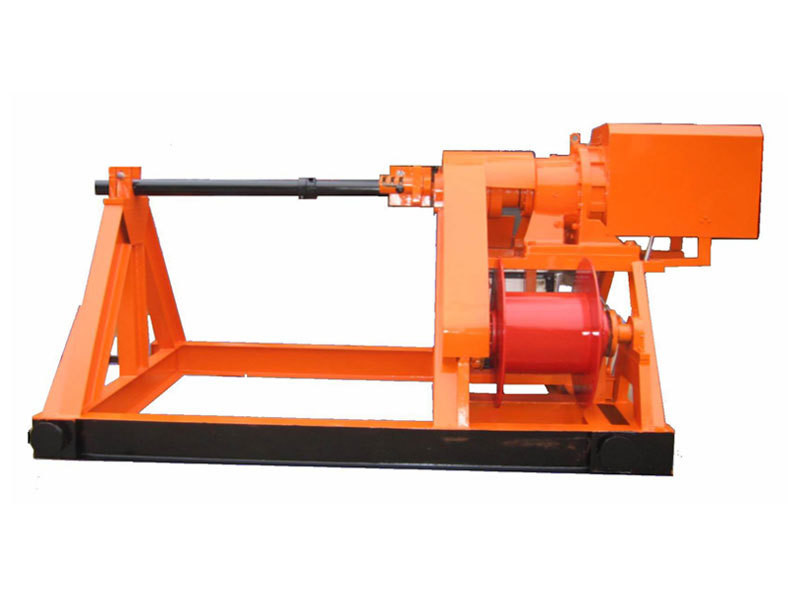

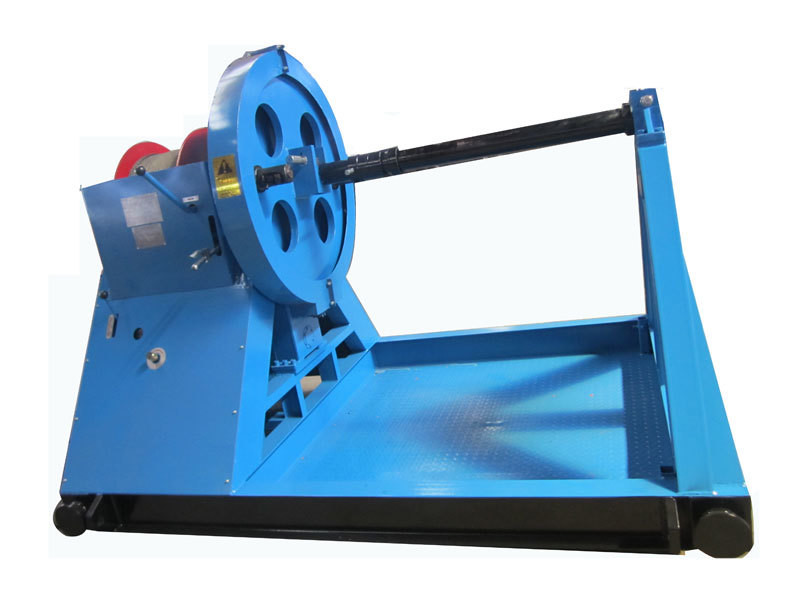

DSJ38YS Hydraulic Rope Rewinding Machine Side Rope Roller

PRODUCTION



The DSJ series drill line spooler is a specialized piece of equipment employed in oil - field drilling operations for the collection and laying of wire ropes. Once the wire rope is re - closed, this equipment can be put into use. It serves multiple purposes. Firstly, it eases the relocation and subsequent re - use of the wire rope. Secondly, it effectively prevents the wire rope from rolling and twisting, thus safeguarding the integrity of the wire rope. Moreover, it significantly reduces the labor intensity of workers during the collection and laying processes of the wire rope, enabling the mechanization of these operations.


This product is not limited to wire ropes in oil - field applications. It can also be utilized for the collection and release operations of large - scale cables and wires.


Regarding its power system, to meet diverse user needs, it comes in hydraulic, electric, and pneumatic forms. The hydraulic and pneumatic power systems offer the advantage of stepless speed regulation. The electric type is available in a constant - speed version and a stepless - speed - regulation version. Based on users' specific requirements, products of different tonnages, torques, and structural forms can be designed and manufactured. Additionally, a lead drum can be added as per user requests.


Power form options include: hydraulic, electric, and pneumatic.




TECHNICAL PARAMETER

No.

Item

Technical Parameters

1

Model

DSJ38DC

DSJ38YS

DSJ38Q

2

Output Speed(r/min)

11

0.55-17.5

0-13

3

Output Torque(N·m)

10000

10000

10000

4

Power

7.5kW

7.5kW

16 kW

5

rope capacity-38mm

1000m

1200m

1200

6

Load weight

8000

8000

10000

7

Drum

Width(mm)

1200

1200

1640

External Diameter(mm)

2200

2200

2200

Center Hole(mm)

100

100

100

8

Dimensions:

Length * Width * Height(mm)

3200*1790*1880

3200*1790*1880

3045*2050*1845

9

Weight(kg)

1000

1200

1450
