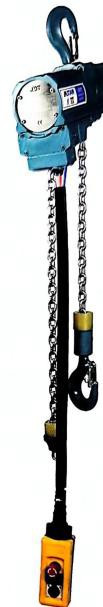

Lifting Pneumatic Hoist in Oilfield with 500kg Capacity and Alloy Steel Chain Material
| Brand Name | Juling |
|---|---|
| Certification | CE,API |
| Model Number | DQH Series |
| Minimum Order Quantity | 1 |
| Price | Negotiable |
| Delivery Time | 30 |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Capacity | 500kg | Power Source | Compressed Air |
|---|---|---|---|
| Air Consumption | 0.8m³/min | Weight | 25 Kg |
| Control Method | Pendant Control | Usage | Lifting In Oilfield |
| Lifting Height | 3m | Safety Features | Overload Protection, Emergency Stop |
Product Description
Product Description:
The Pneumatic Hoist is a versatile lifting equipment designed for use in oilfields. With a control method of Pendant Control, this hoist offers precise and user-friendly operation. It is powered by Compressed Air, making it suitable for various industrial applications.
With an air consumption rate of 0.8m³/min, this hoist is efficient and cost-effective to operate. It is designed to meet the highest standards, holding certifications such as CE and ISO9001, ensuring safety and quality in its performance.
The Pneumatic Hoist is built to withstand a wide range of ambient temperatures, from -20℃ to 70 ℃, making it suitable for use in diverse environments. Its avant-garde design and compact structure make it easy to maneuver and operate in tight spaces.
This hoist comes with different controllers and rollers, allowing for customization based on specific lifting requirements. Whether it's for heavy-duty lifting or precise positioning, the Pneumatic Hoist offers flexibility and reliability.
Features:
- Product Name: Pneumatic Hoist
- Color: Yellow Orange Or Other Colors
- Safety Features:
- Overload Protection
- Emergency Stop
- Power Source: Compressed Air
- Certifications: CE, ISO9001
- Dimensions: 50 Cm X 30 Cm X 40 Cm
Technical Parameters:
|
Model |
Payload
Capacity(Kg) |
Lifting
Height(m) |
Hoisting
Speed(m/min) |
Lowering
Speed(m/min) |
Rated Air
Pressure(MPa) |
Air
Consumption(m3/min) |
Overall
Dimension(mm) |
Number
Of Chains |
|
QDH0.5 |
500 |
0-10 |
19 |
17 |
0.6 |
1.2 |
300-180-450 |
1 |
|
QDH1.0S |
1000 |
0-10 |
10 |
8 |
0.6 |
1.5 |
300-200-450 |
2 |
|
QDH1.0D |
1000 |
0-10 |
15 |
12 |
0.6 |
1.5 |
300-200-450 |
1 |
|
QDH2.0 |
2000 |
0-10 |
5.5 |
5.5 |
0.6 |
1.2 |
300-200-500 |
2 |
|
QDH3.0 |
3000 |
0-10 |
10 |
11 |
0.6 |
5.5 |
500-240-600 |
1 |
|
QDH5.0 |
5000 |
0-10 |
5 |
5.5 |
0.6 |
5.5 |
500-240-675 |
2 |
|
QDH8.0 |
8000 |
0-10 |
3.2 |
3.4 |
0.6 |
5.5 |
500-240-675 |
2 |
|
QDH10.0 |
10000 |
0-10 |
3.2 |
3.4 |
0.6 |
5.5 |
575-300-820 |
2 |
|
QDH15.0 |
15000 |
0-10 |
2 |
2.1 |
0.6 |
5.5 |
685-310-900 |
3 |
|
QDH20.0 |
20000 |
0-10 |
1.4 |
1.6 |
0.6 |
5.5 |
695-315-1030 |
4 |
|
QDH25.0 |
25000 |
0-10 |
2.4 |
2.8 |
0.6 |
6.5 |
900-445-1260 |
6 |
|
QDH30.0 |
30000 |
0-10 |
2.4 |
2.8 |
0.6 |
6.5 |
900-445-1260 |
6 |
|
QDH40.0 |
40000 |
0-10 |
1.7 |
2 |
0.6 |
6.5 |
1080-450-1470 |
6 |
|
QDH50.0 |
50000 |
0-10 |
1.3 |
1.6 |
0.6 |
6.5 |
1080-430-1485 |
6 |
|
QDH100.0 |
100000 |
0-10 |
1 |
0.95 |
0.6 |
7.5 |
1535-600-1930 |
6 |
Applications:
Juling's DQH Series Pneumatic Hoist, originating from China, is a versatile lifting solution suitable for a wide range of applications. With its CE and API certifications, this hoist is designed for various industrial settings where a reliable and efficient lifting mechanism is required.
The pneumatic hoist is ideal for scenarios that demand a product suitable for no lubrication operation. Its design allows for smooth operation without the need for constant lubrication, making it a low-maintenance and cost-effective choice for businesses.
The hoist's housing material, made of aluminum alloy, ensures durability and longevity even in challenging environments. It can withstand ambient temperatures ranging from -20℃ to 70℃, making it suitable for use in diverse working conditions.
Thanks to its avant-garde design and compact structure, the DQH Series Pneumatic Hoist is easy to install and operate in confined spaces. The dimensions of 50 cm x 30 cm x 40 cm further enhance its usability in areas with limited space.
Controlled through a pendant control method, this hoist provides precise and efficient lifting operations. Its power source, compressed air, ensures consistent performance while minimizing energy consumption. The hoist's air consumption rate of 0.8m³/min makes it an energy-efficient choice for businesses looking to reduce operational costs.
When considering purchasing the DQH Series Pneumatic Hoist, customers can benefit from a negotiable price, a minimum order quantity of 1, and a delivery time of 30 days. Payment terms through T/T further ensure a convenient purchasing process for businesses seeking a reliable lifting solution.
